Print-in-place over-center toggle latch v2
by eugene · published
0likes0comments0downloads
clone this forge
git clone https://www.partforge.ai/git/p-ca0027aad8df.gitThis clones the published version. Sign in as the owner to clone your latest work.

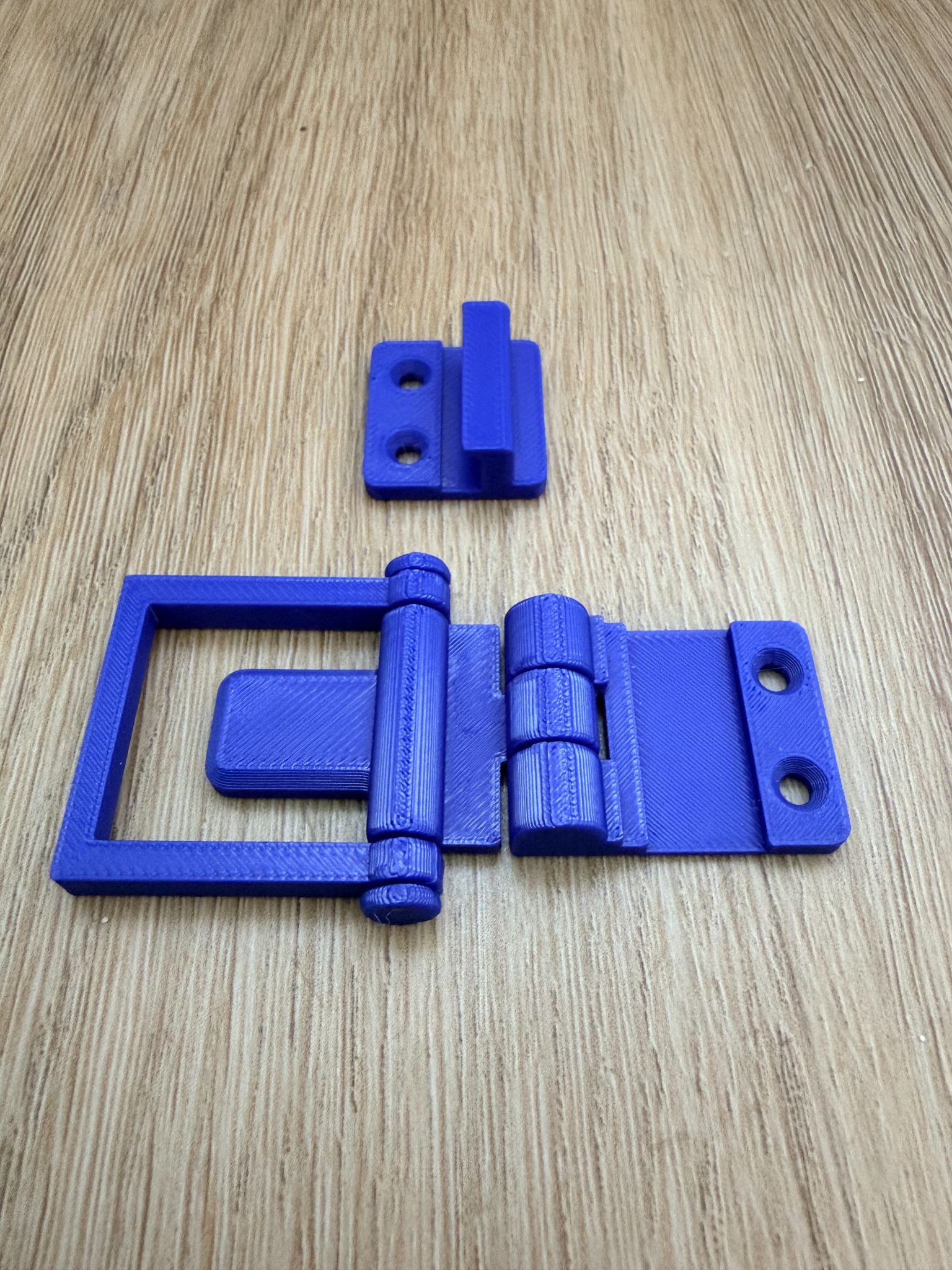

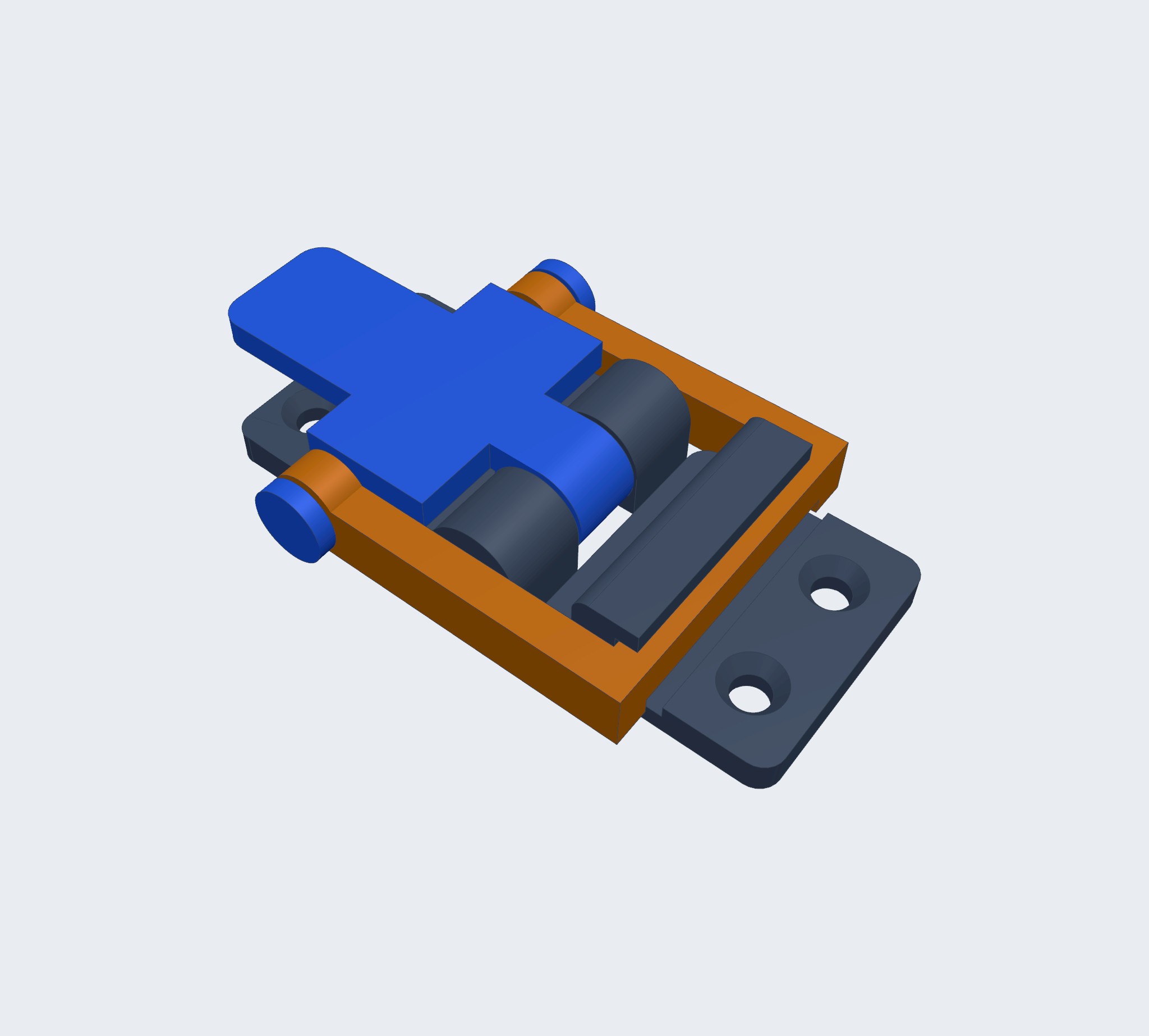

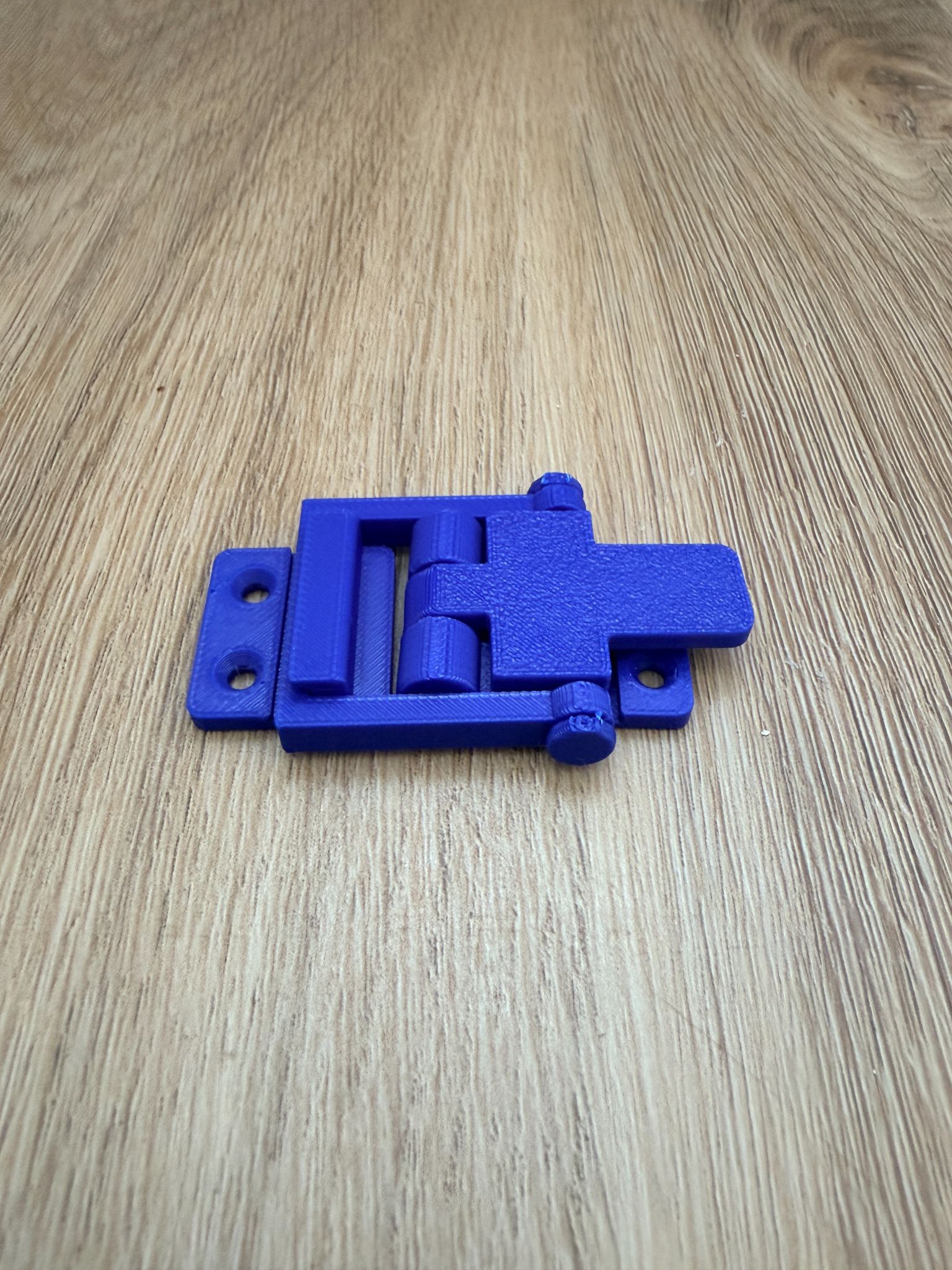

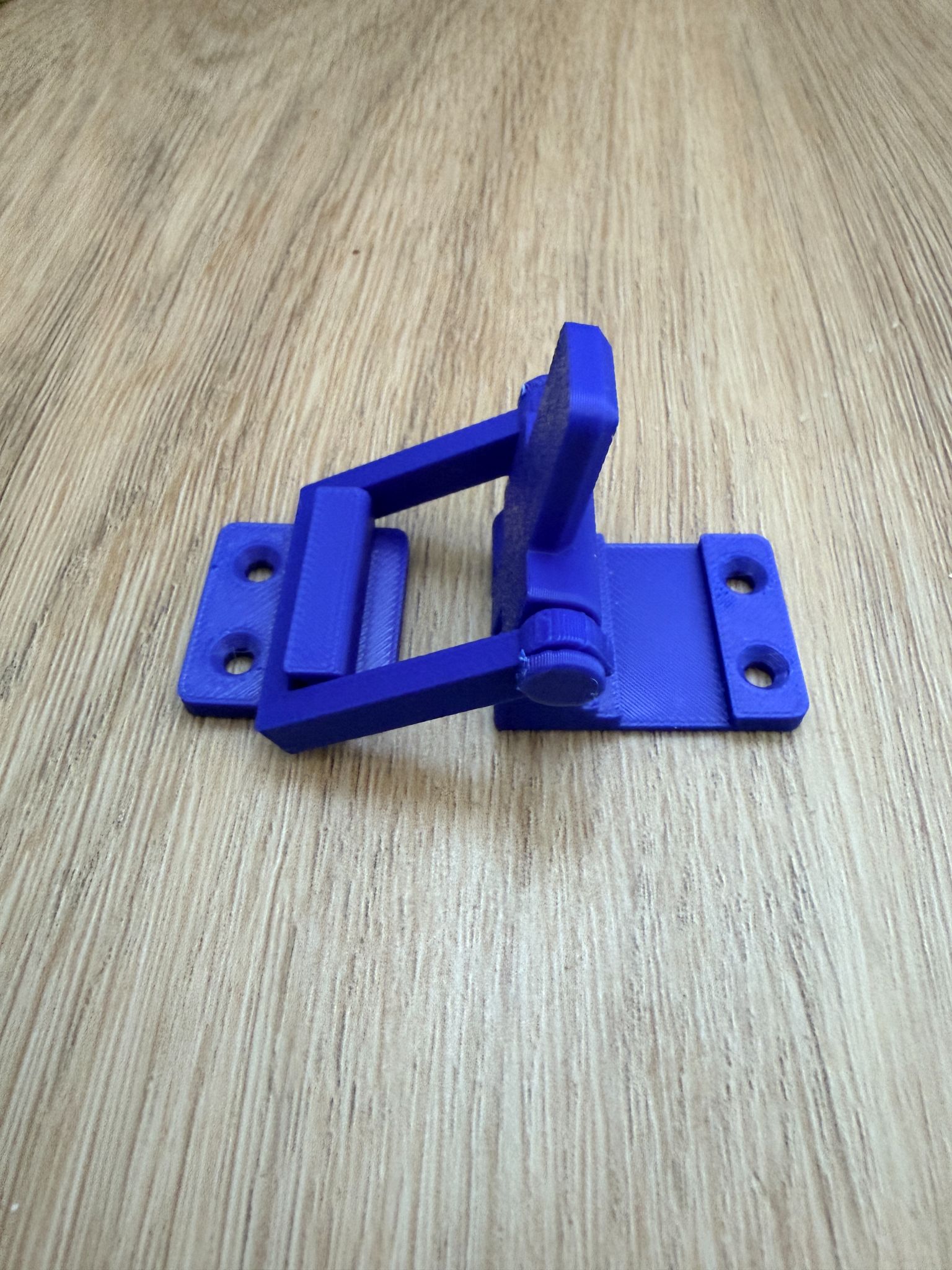

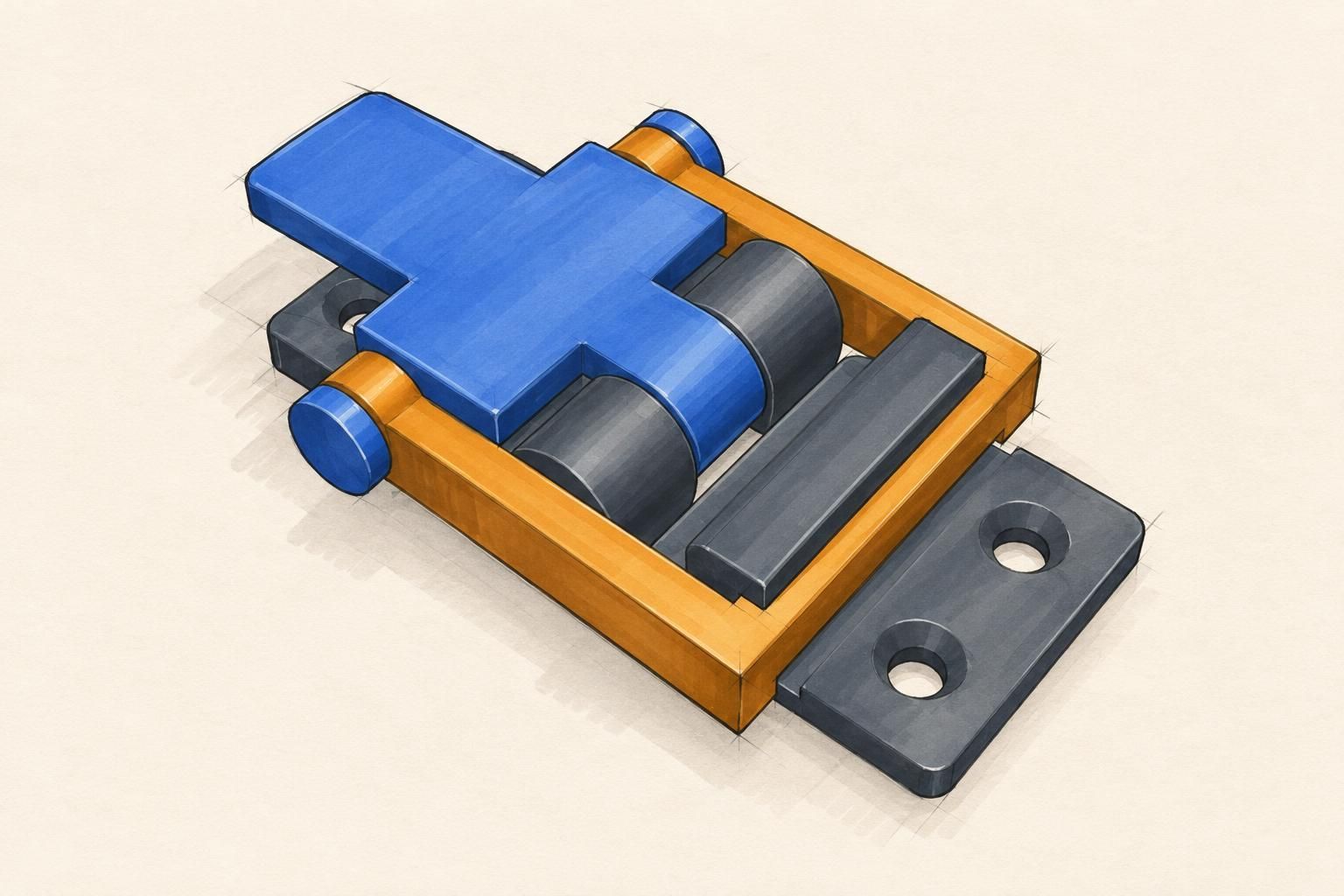

A print-in-place over-centre toggle latch with captive hinge pins, retaining flanges, and matching rounded mounting plates. Features an articulated draw link, filleted keeper catch, and mounting holes sized for standard countersunk screws.
Designed by eugene in PartForge, parametric CAD with an AI collaborator. Open it to view in 3D or export STL, 3MF or STEP.
License
Public domain dedicationYou can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
