Over-center toggle latch
by eugene · published
clone this forge
git clone https://www.partforge.ai/git/p-9c4b64d28b5f.gitThis clones the published version. Sign in as the owner to clone your latest work.

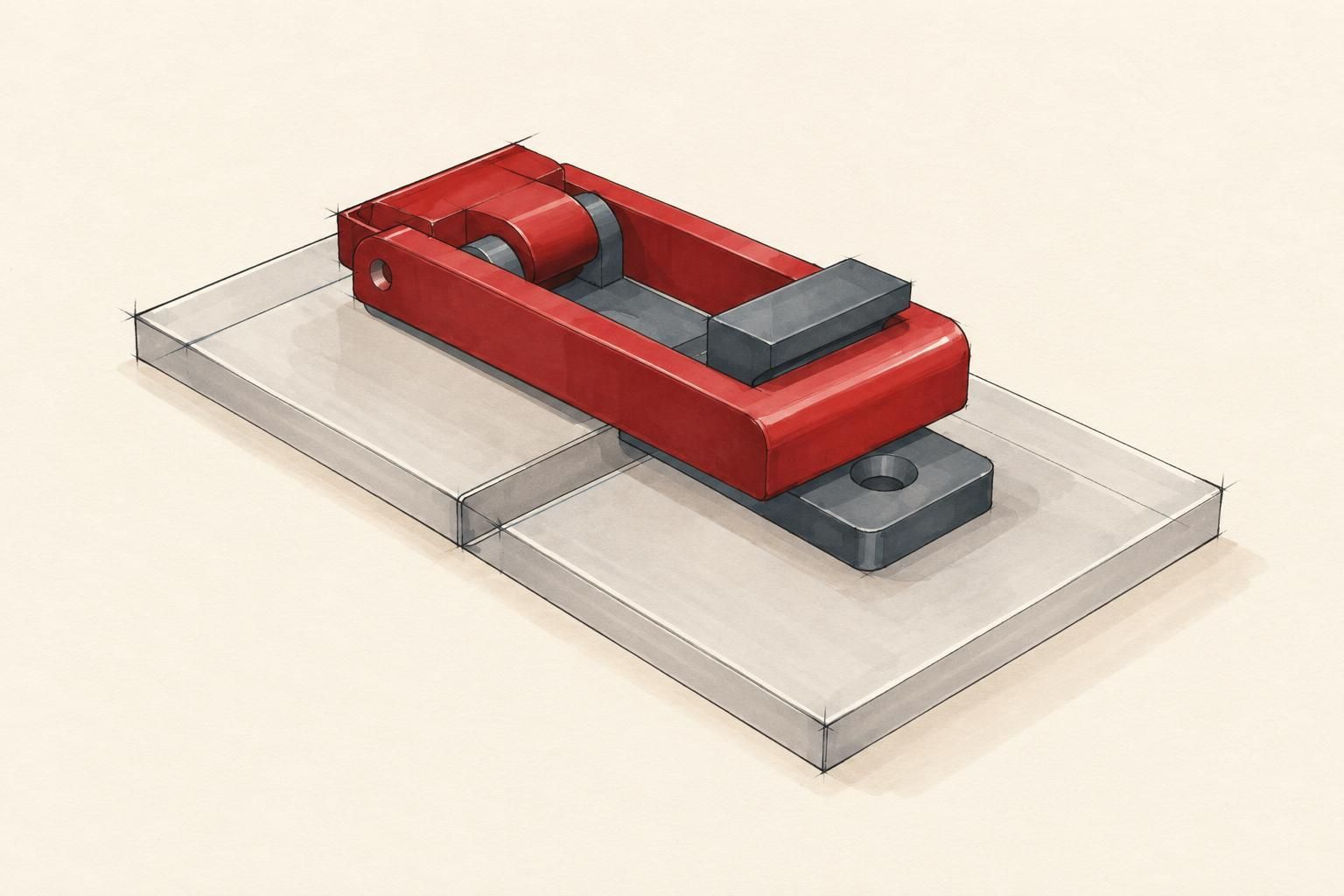

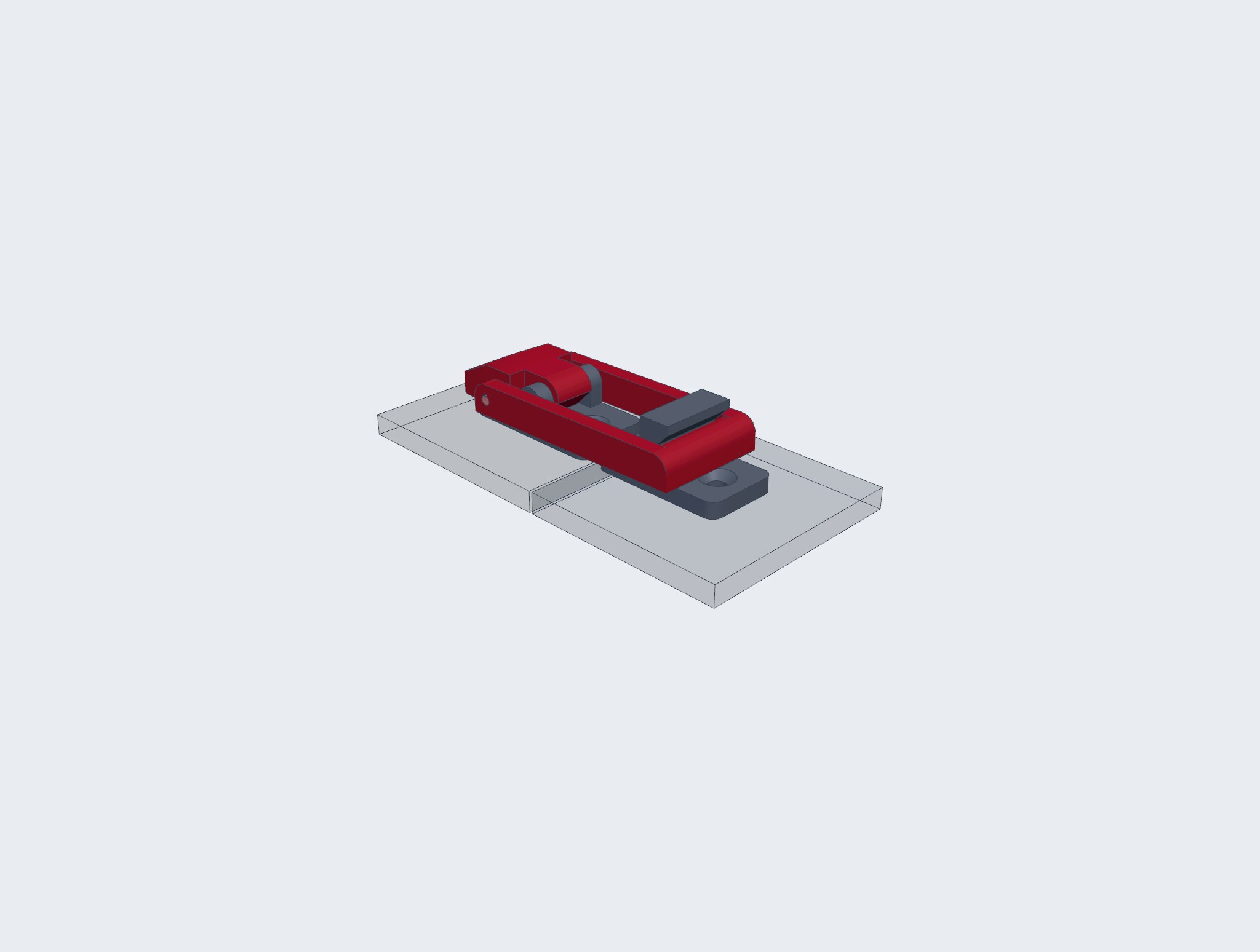

An over-centre toggle latch (draw latch) is a four-part hinge mechanism that holds a toolbox, flight case, or storage bin shut and pulls the lid closed. The base and keeper plates screw to the box wall and lid respectively; the lever pivots on the base and carries a link pin; the link loop's hook rests on the keeper's ridge. Adjustable parameters control screw size, plate spacing, lever and link geometry, pivot diameter, and the over-centre offset that locks the mechanism closed.
Designed by eugene in PartForge, parametric CAD with an AI collaborator. Open it to view in 3D or export STL, 3MF or STEP.
License
Public domain dedicationYou can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
