Print-in-place pin hinge

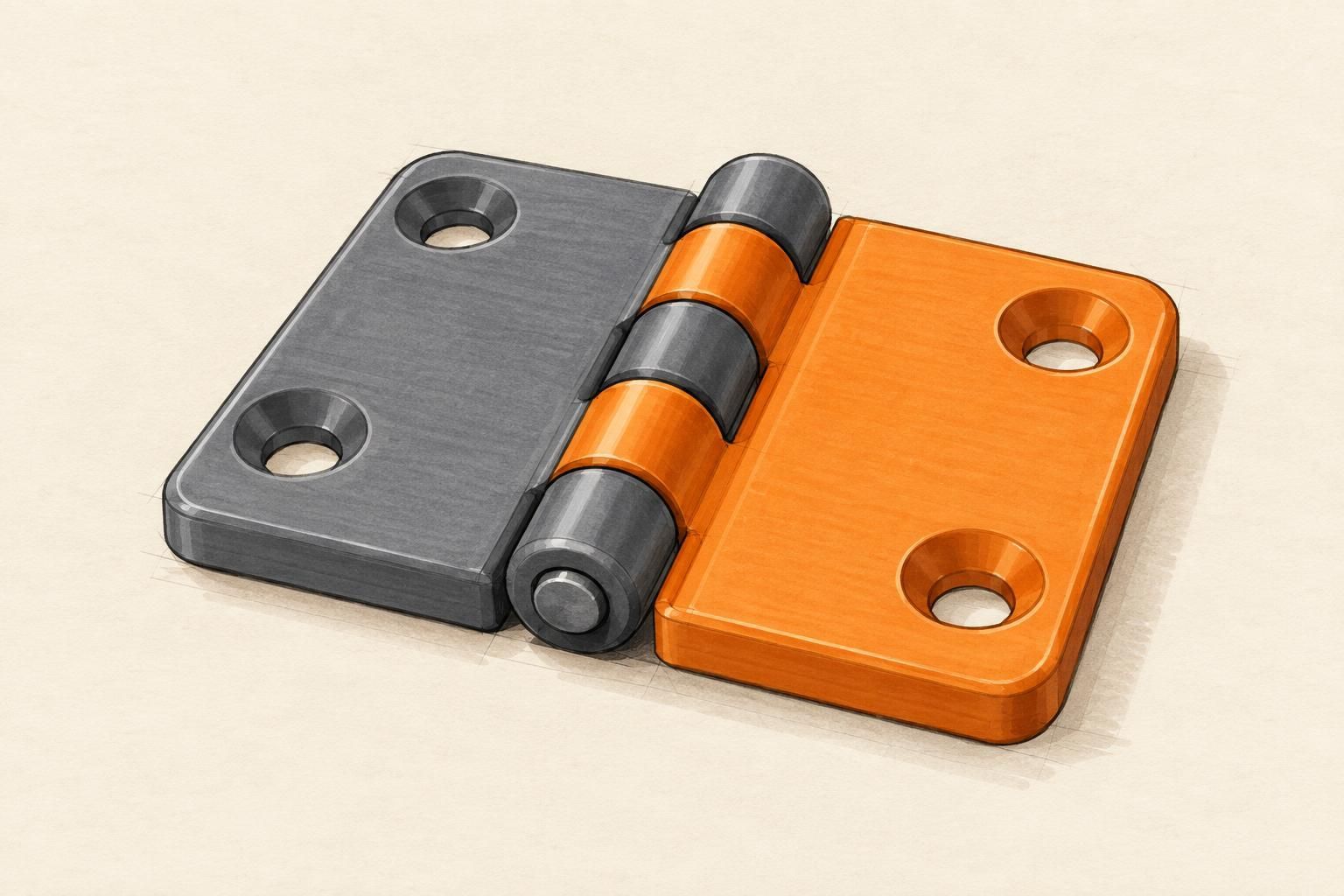

A flat hinge that comes off the printer already assembled: two leaves with interleaved knuckles, one carrying the pin, the other turning on it. Set the leaf size and how many knuckles you want, choose countersunk screw holes or none, and dial in the two clearances for your printer. Print it flat exactly as shown, flex it once to free the joint, and it swings.

Customize in 3D

Adjust its settings live, then export STL, 3MF or STEP. No account needed.

Likes0Comments0Downloads2

Designed by eugene in PartForge, parametric CAD with an AI collaborator.

License

Public domain dedication

You can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
