One-way ratchet knob

E

by eugene · published

clone this forge

git clone https://www.partforge.ai/git/p-7dee8592bb1c.git

This clones the published version. Sign in as the owner to clone your latest work.

embed this forge

<iframe src="https://www.partforge.ai/parts/one-way-ratchet-knob--7dee8592bb1c/embed" width="560" height="484" style="border:0;max-width:100%" loading="lazy" title="One-way ratchet knob on PartForge"></iframe>

Paste it into your page. Readers can spin and zoom the forge, and Customize opens it on PartForge.

One-way ratchet knob1 / 3

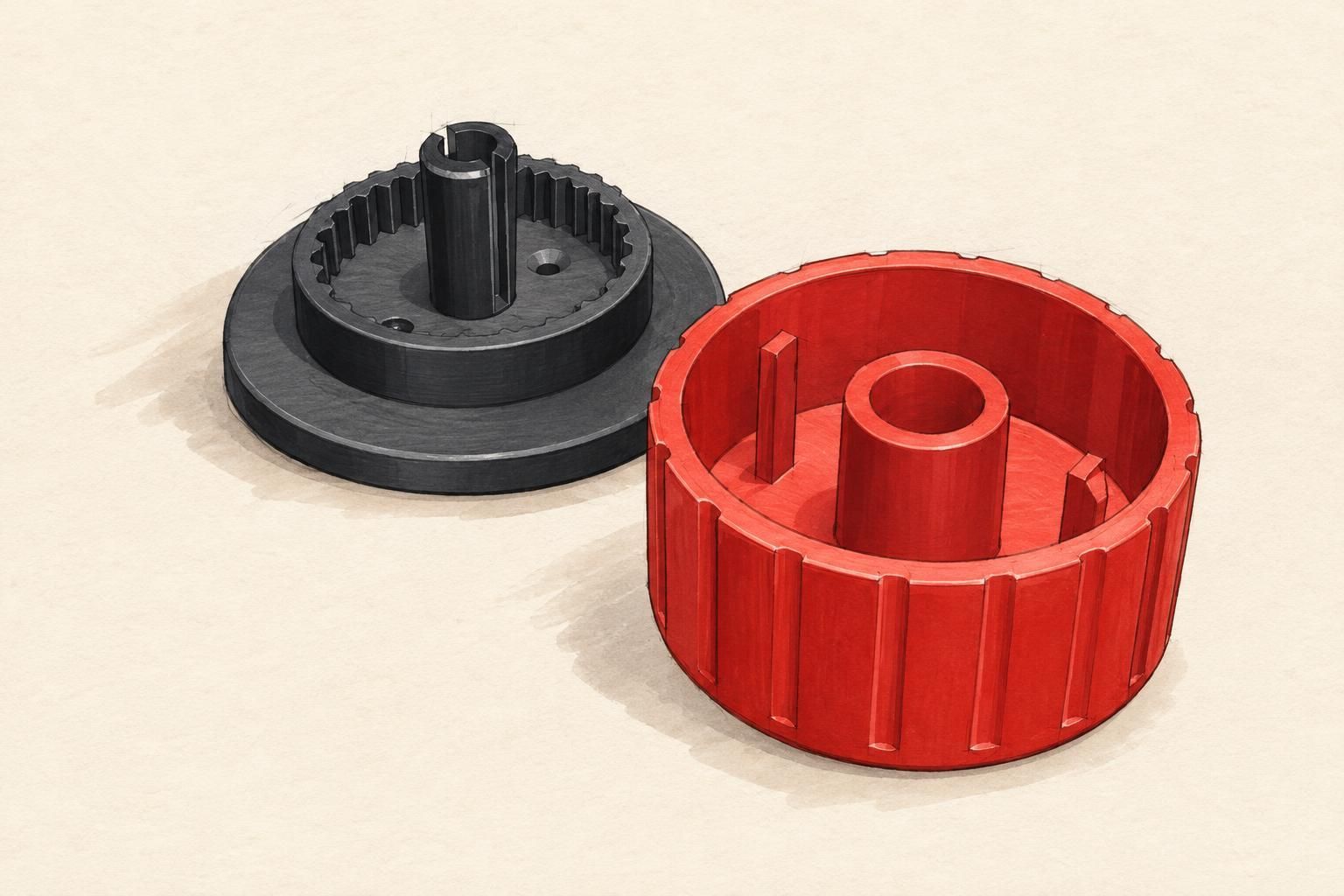

A knob that turns one way with a click per tooth and locks the other, like the dial on a strap or cord tensioner. The base screws to a panel and carries a ring of sawtooth teeth and a centre post; the knob snaps onto the post and its springy pawls ride over the teeth. Choose the size, how many clicks per turn, which way it turns freely and how stiff the pawls are, and tune the two fit numbers for your printer. Both parts print flat with no supports.

Customize in 3D

Adjust its settings live, then export STL, 3MF or STEP. No account needed.

Likes0Comments0Downloads0

Designed by eugene in PartForge, parametric CAD with an AI collaborator.
