Threaded Standoff1 / 5

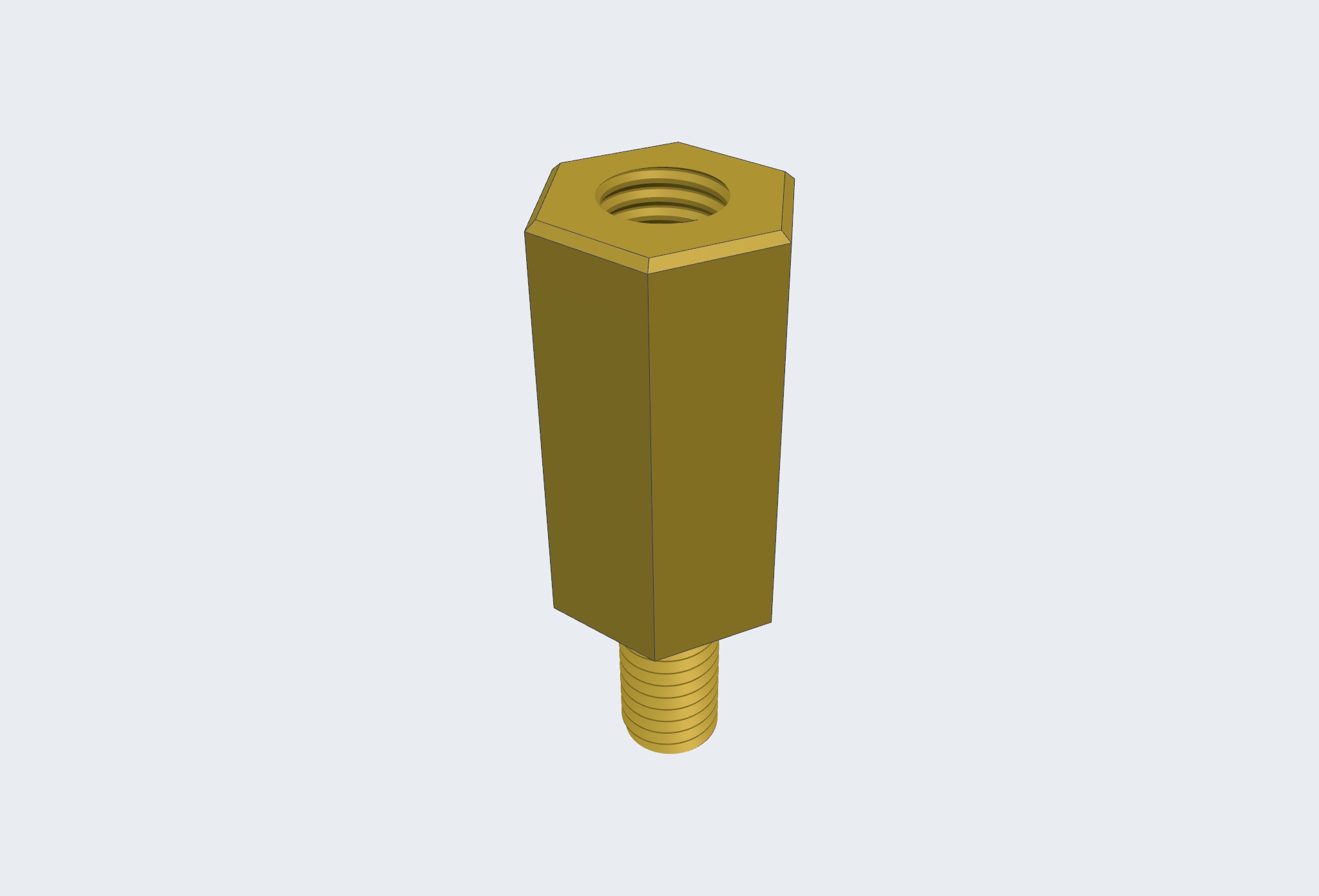

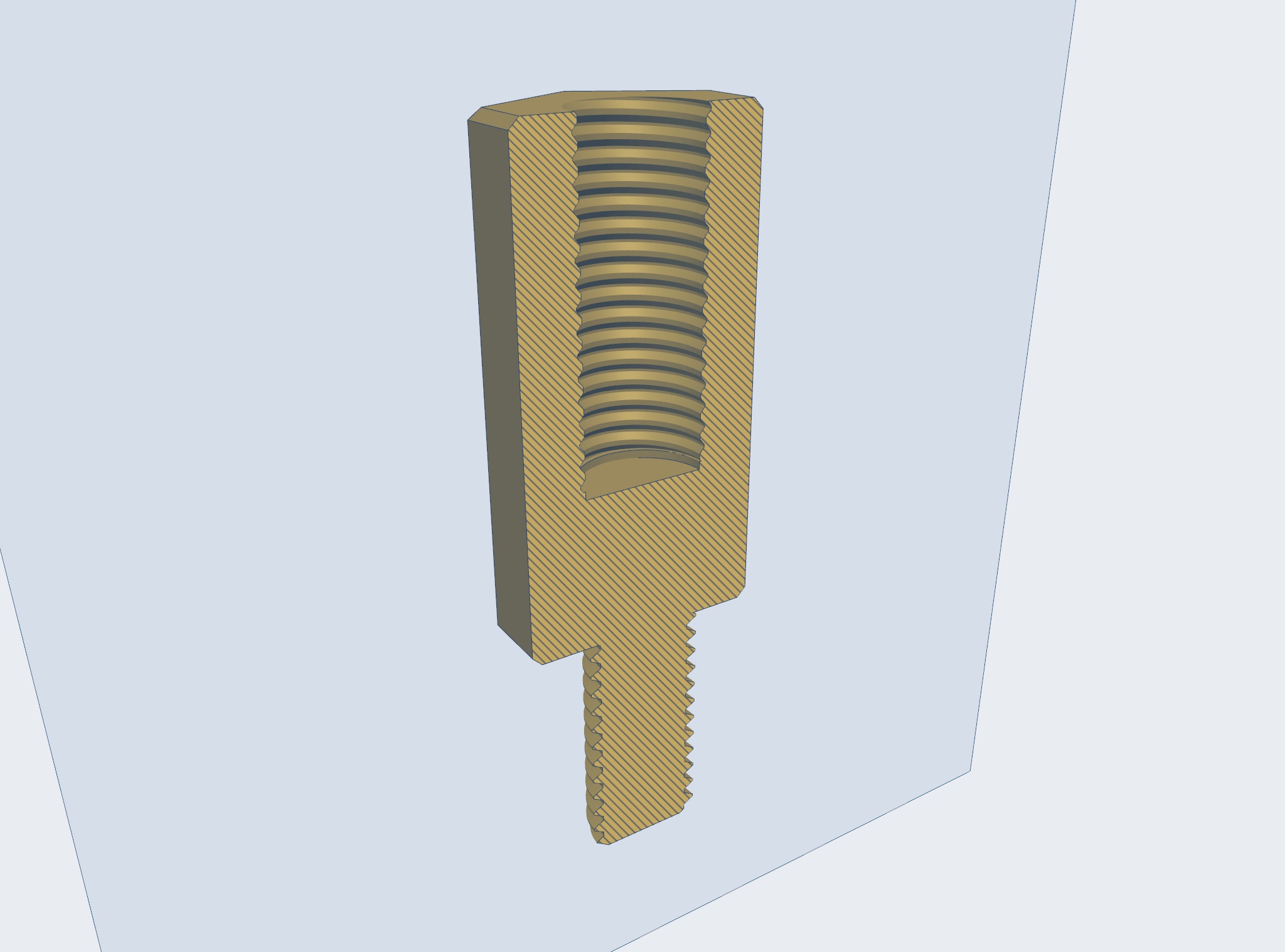

A parametric hexagonal threaded standoff for circuit board mounting, panel spacing, and electronics enclosures. Configure between male-female, female-female, and male-male styles with customizable thread diameters, pitches, body heights, and hex widths. Includes quick presets for common metric sizes like M2.5, M3, M4, and M5.

Customize in 3D

Adjust its settings live, then export STL, 3MF or STEP. No account needed.

Likes0Comments0Downloads0

Designed by Scott in PartForge, parametric CAD with an AI collaborator.

License

Public domain dedication

You can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
