Ball-and-socket friction mount

E

by eugene · published

clone this forge

git clone https://www.partforge.ai/git/p-80323df63869.git

This clones the published version. Sign in as the owner to clone your latest work.

embed this forge

<iframe src="https://www.partforge.ai/parts/ball-and-socket-friction-mount--80323df63869/embed" width="560" height="484" style="border:0;max-width:100%" loading="lazy" title="Ball-and-socket friction mount on PartForge"></iframe>

Paste it into your page. Readers can spin and zoom the forge, and Customize opens it on PartForge.

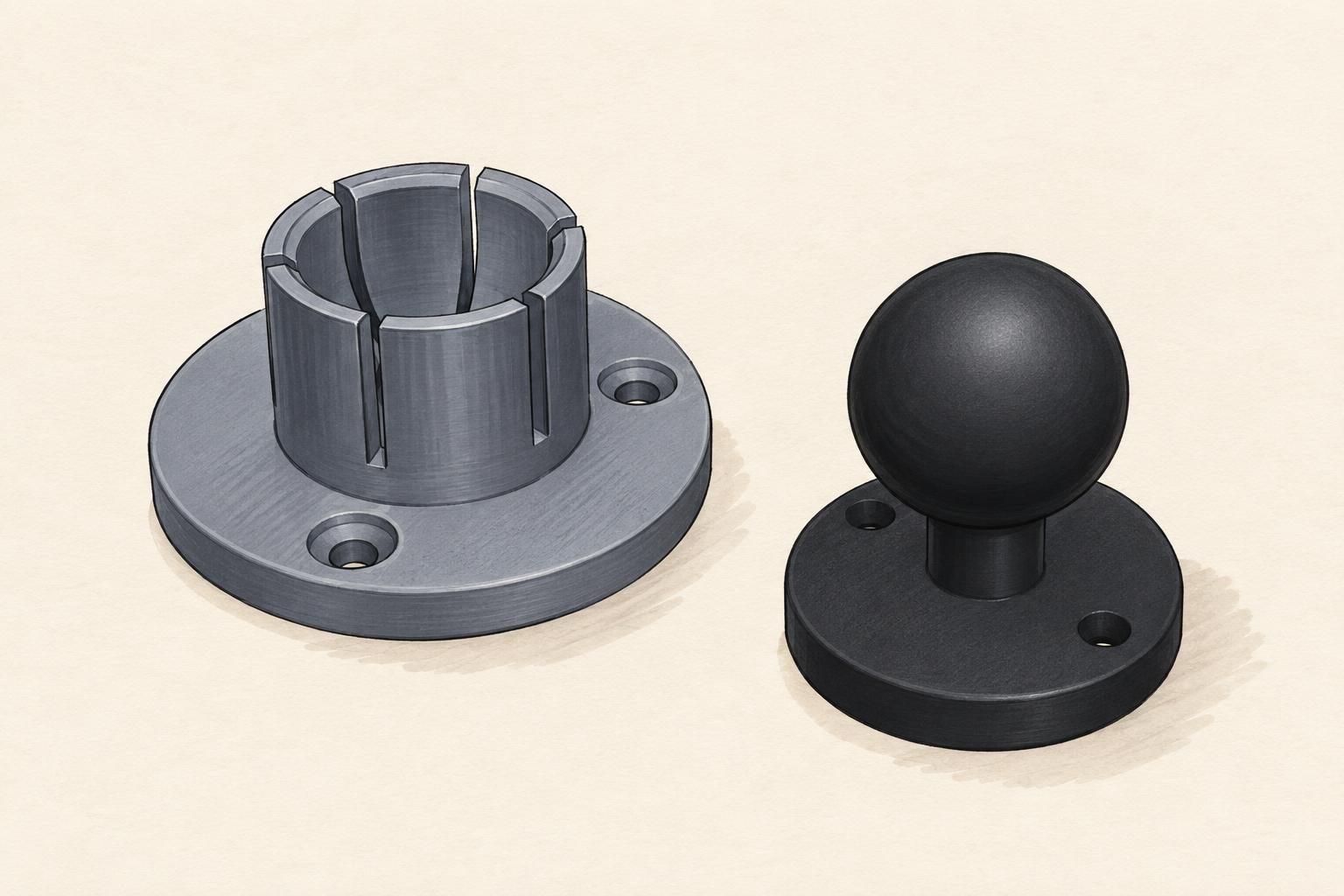

Ball-and-socket friction mount1 / 3

A two-part swivel joint for a small camera, light, sensor or phone holder: the ball snaps into a slotted cup and stays wherever you point it, held by friction. The base screws down with countersunk screws and the stud's pad takes your device. Set the ball size, how far the cup wraps the ball, how many fingers it has and how tightly it grips, and the panel shows how far the ball can tilt. Both parts print without supports.

Customize in 3D

Adjust its settings live, then export STL, 3MF or STEP. No account needed.

Likes1Comments0Downloads1

Designed by eugene in PartForge, parametric CAD with an AI collaborator.

License

Public domain dedication

You can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
