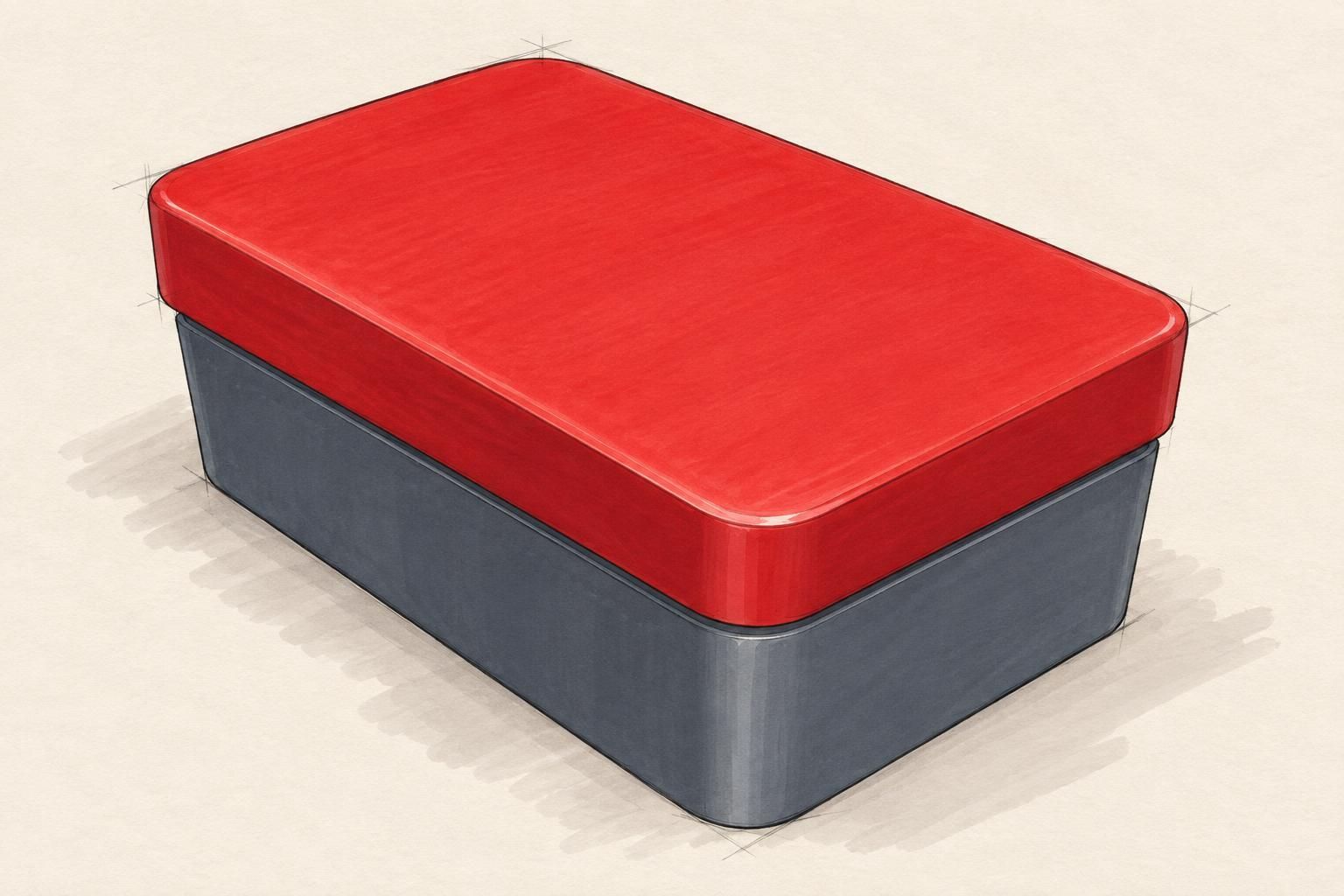

Snap-shut lid box

A simple box whose lid clicks shut: the lid's skirt drops over the rim and small nubs inside it snap into a groove around the box. Set the inside size for whatever it holds, then tune how firmly it clicks with the nub height and fit clearance. Both parts print flat with no supports, the box open side up and the lid plate down.

Customize in 3D

Adjust its settings live, then export STL, 3MF or STEP. No account needed.

Likes0Comments0Downloads1

Designed by eugene in PartForge, parametric CAD with an AI collaborator.

License

Public domain dedication

You can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
