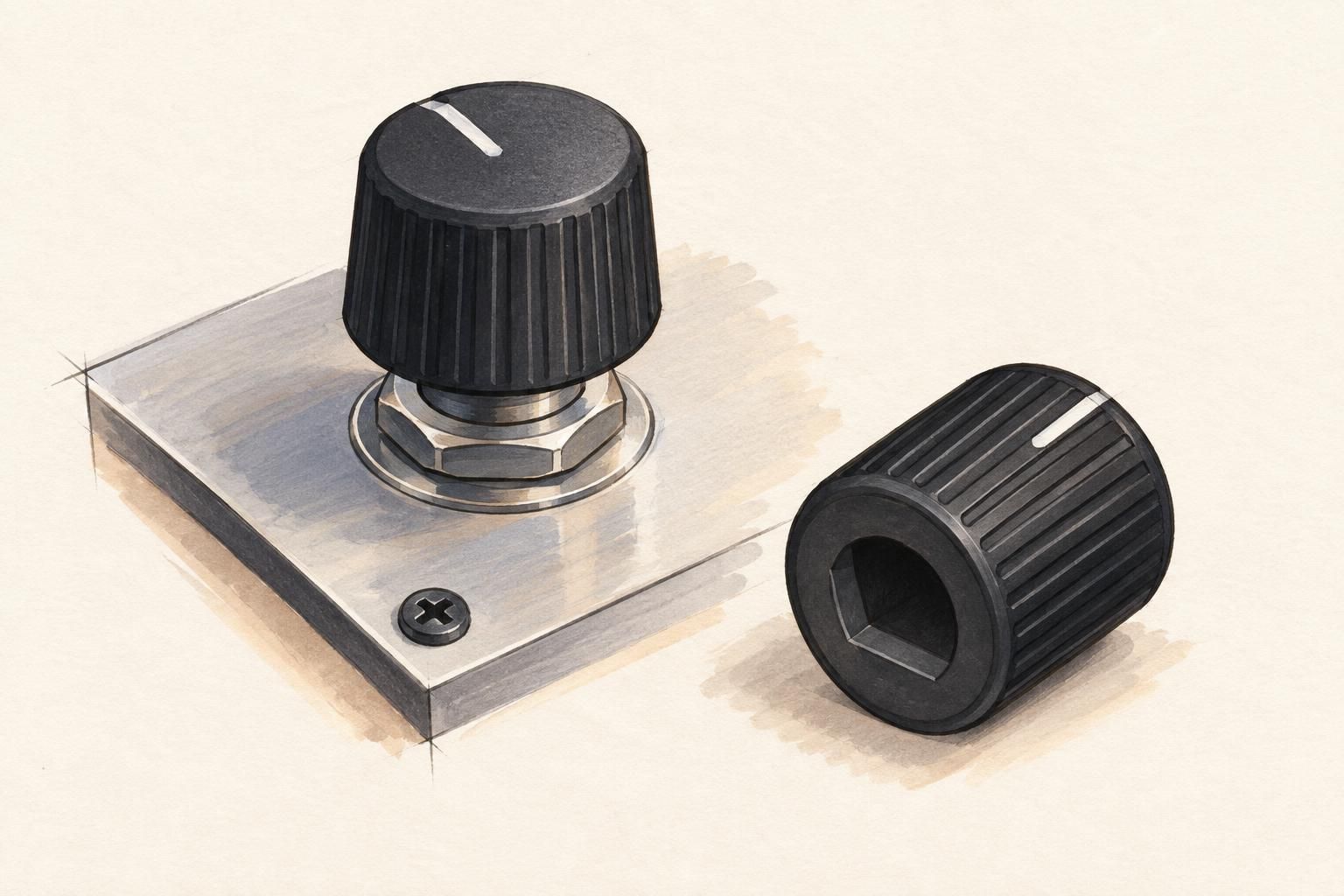

D-shaft control knob

A replacement knob that pushes onto the D-shaft of a potentiometer, rotary encoder or appliance timer, with a pointer line on top so you can read its position. Enter the shaft's diameter and its across-flat size from a caliper, pick a ribbed, smooth or hex grip, and tune the push fit for your printer. An optional side hole takes a small grub screw or self-tapping screw to lock the knob on. Prints closed side up with no supports.

Customize in 3D

Adjust its settings live, then export STL, 3MF or STEP. No account needed.

Likes0Comments0Downloads1

Designed by eugene in PartForge, parametric CAD with an AI collaborator.

License

Public domain dedication

You can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
