Laser box printed hinges

Sonnet 5.5, effort high$0.1332s30s waiting on the model1 build

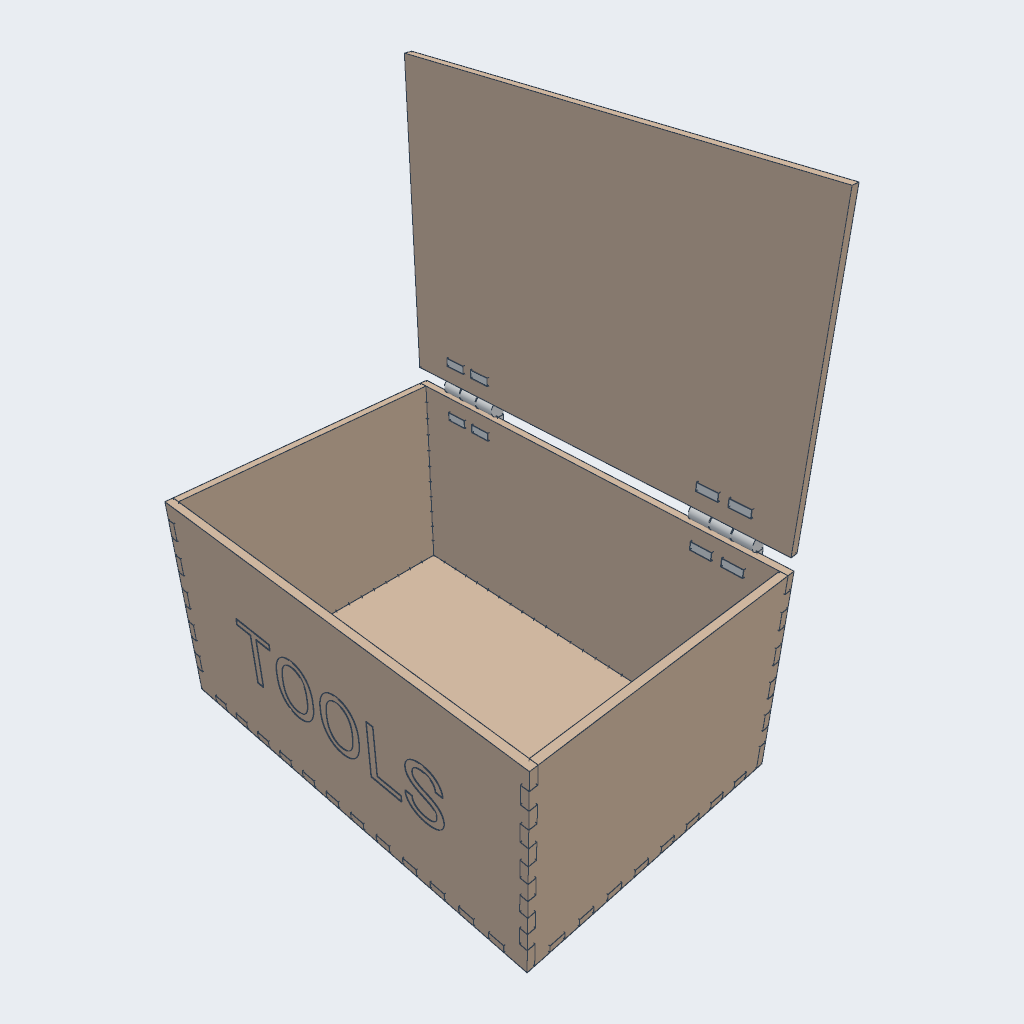

iso
front
back

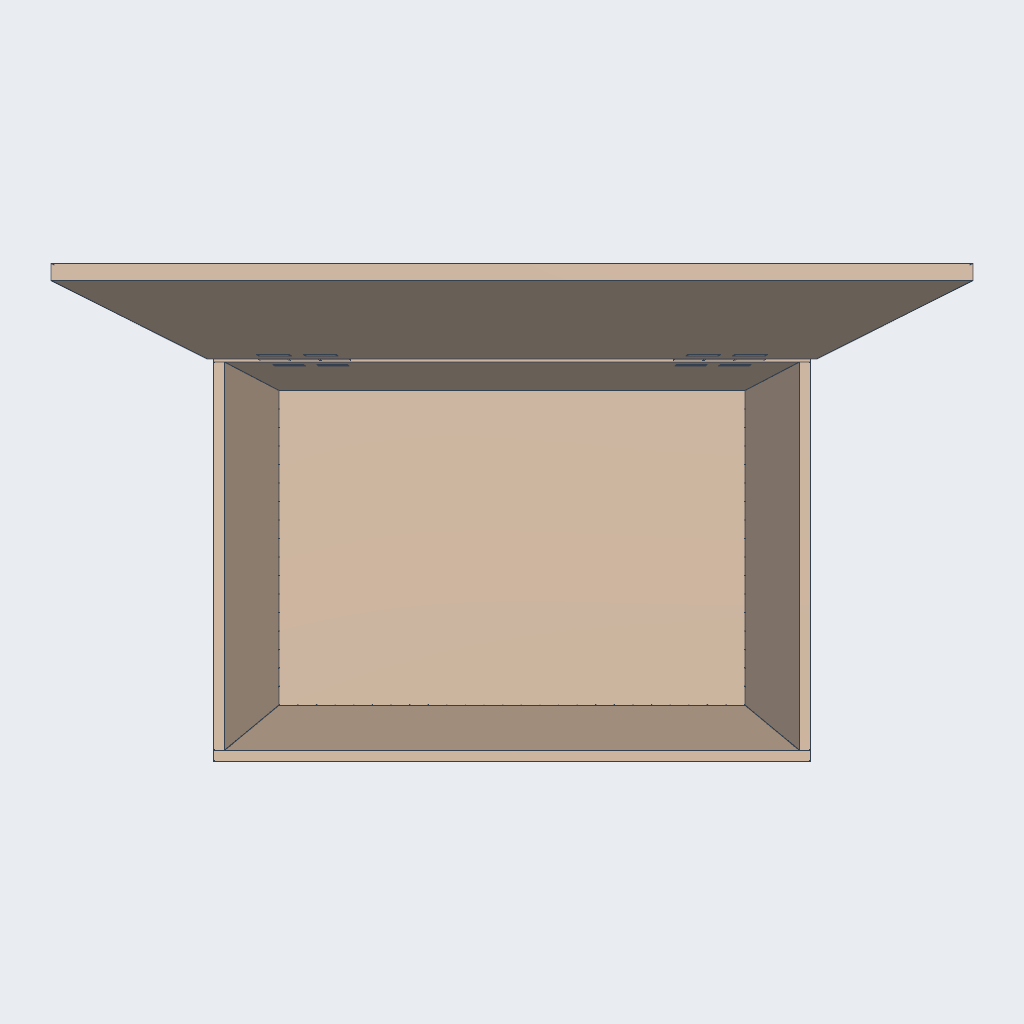

top

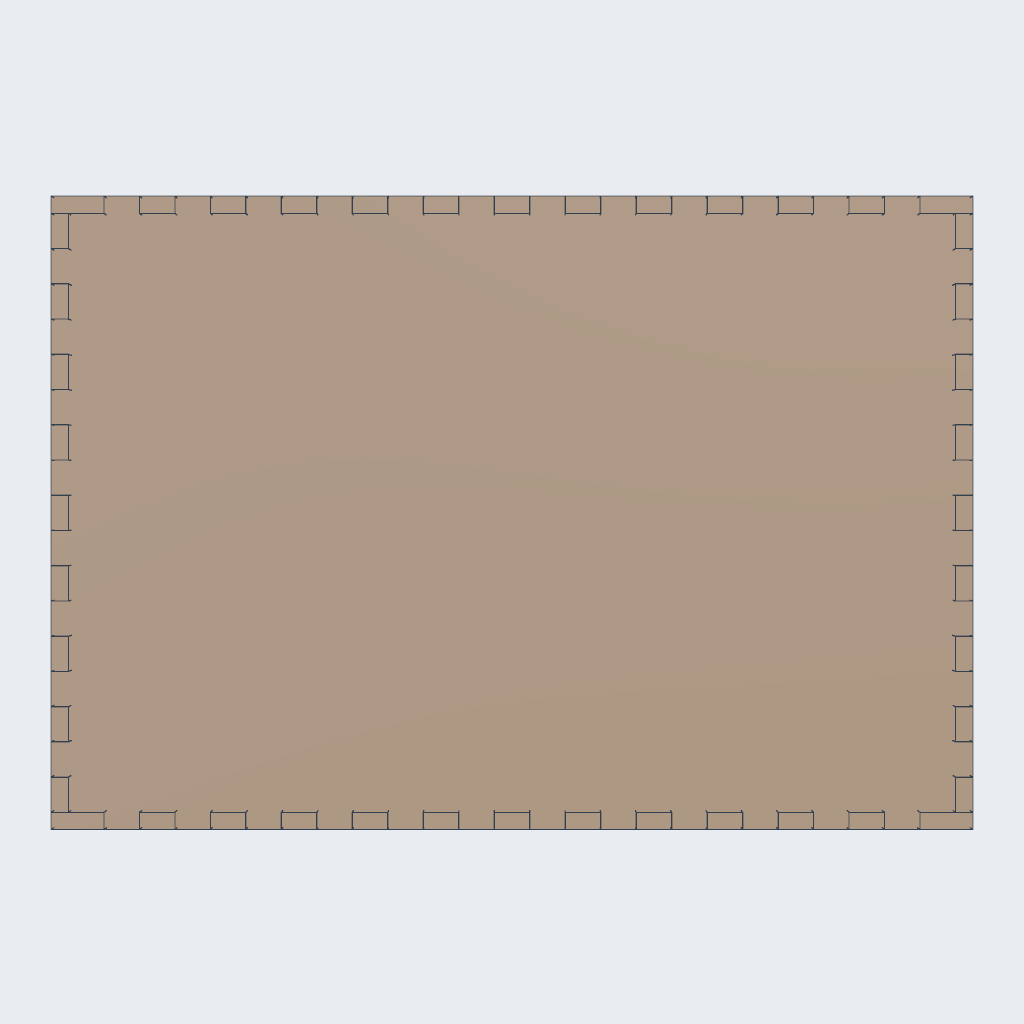

bottom

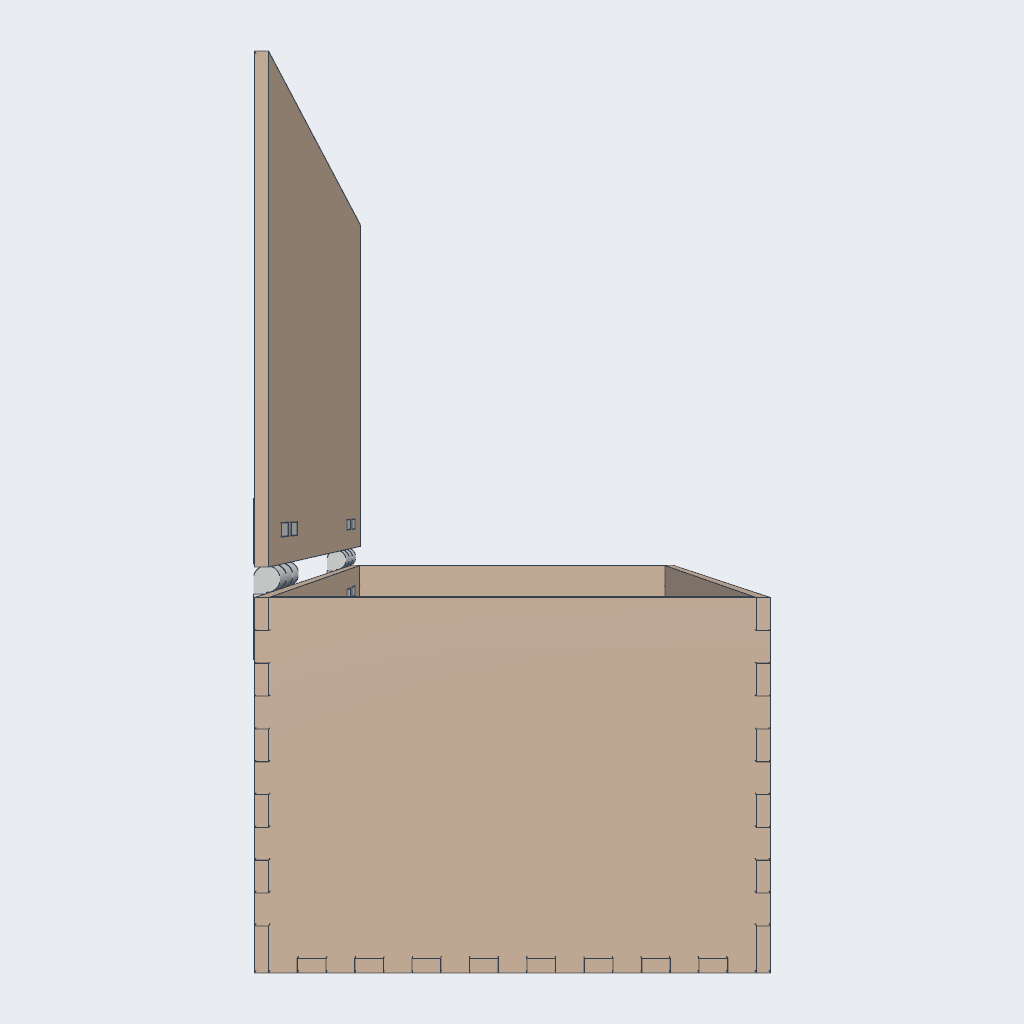

left

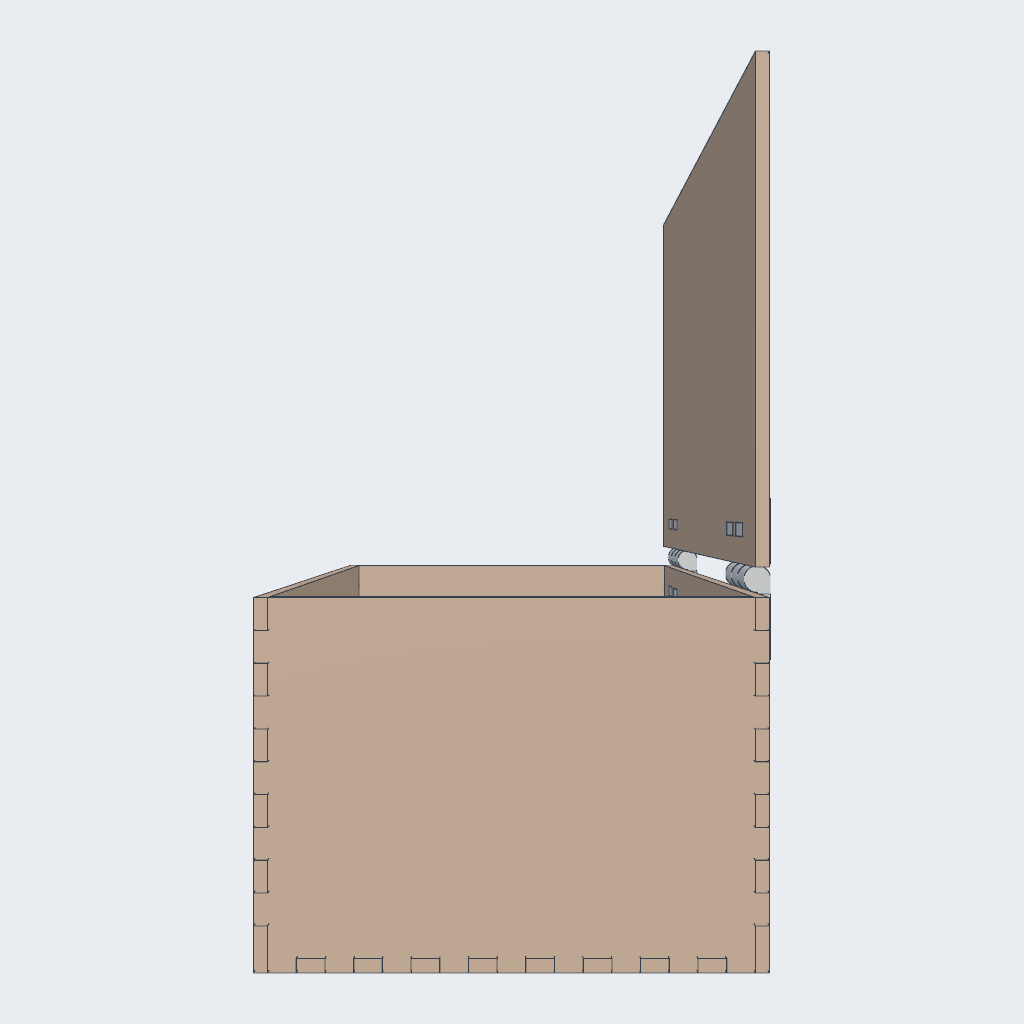

right

100of 100

built: 100
geometry: 100
AI judge: 6 of 6

What the AI judge checked

Pass:An open box built from flat panels — a bottom and four walls — with a separate flat lid
- Opus 5.5: pass: The renders show a bottom panel, four walls forming an open box, and a separate flat lid panel.
- GPT-6 Sol: pass: The renders show a flat bottom, four flat walls, and a separate flat lid held open above the box.
Pass:The corners are finger-jointed: the fingers of adjoining panels interlock rather than overlapping or leaving gaps
- Opus 5.5: pass: The corner and bottom edges show alternating finger/slot patterns that interlock flush, with no visible overlaps or gaps.
- GPT-6 Sol: pass: Alternating fingers meet flush at the visible wall corners without obvious gaps or overlapping panels.
Pass:Two hinges sit along the back edge, joining the lid to the back panel

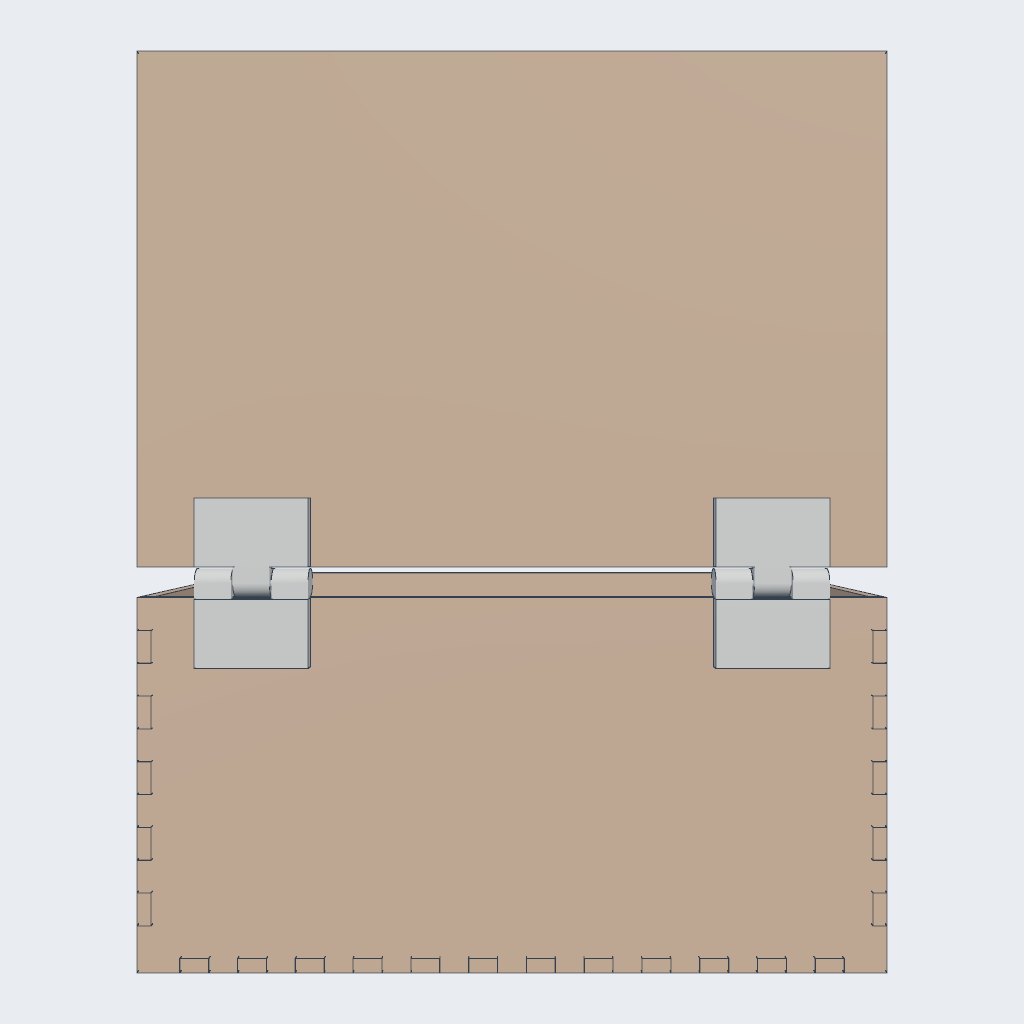

- Opus 5.5: pass: The back view shows two hinges near the ends of the back top edge, with leaves on both the back panel and the lid.
- GPT-6 Sol: pass: Two hinges are visible along the back edge between the lid and back panel.
Pass:The word TOOLS is engraved on the front panel and is legible

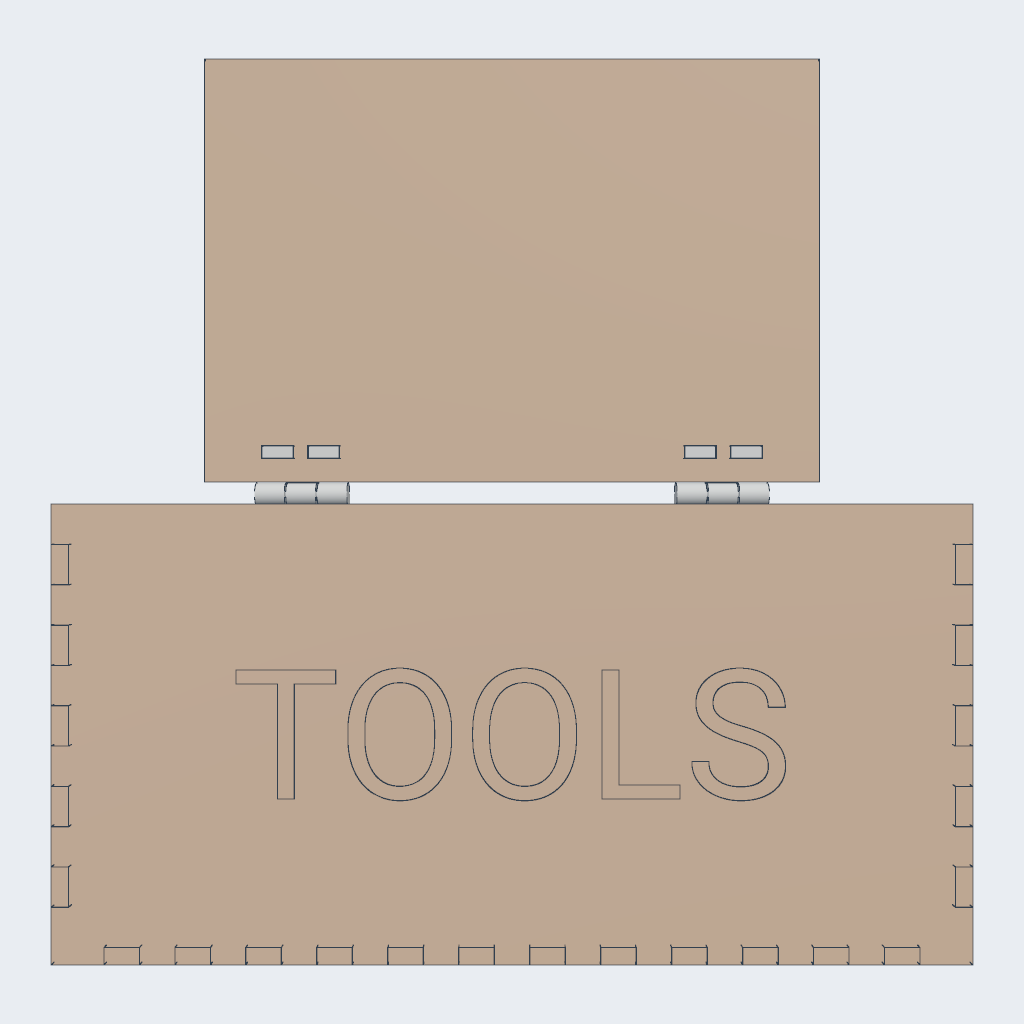

- Opus 5.5: pass: The front view clearly shows the word TOOLS engraved in large outlined letters.
- GPT-6 Sol: pass: TOOLS is clearly legible on the front panel.
Pass:The lid is attached through the hinges rather than floating free of the box
- Opus 5.5: pass: The open lid sits at the hinge knuckles, and its hinge leaves and tab slots connect it to the back panel rather than leaving it floating.
- GPT-6 Sol: pass: The open lid is visibly connected to the back panel by both hinges.
Pass:No floating, detached or unexplained geometry
- Opus 5.5: pass: All geometry is accounted for by the panels, the hinges and their tab slots, with no stray detached pieces visible.
- GPT-6 Sol: pass: The renders show no floating or unexplained geometry.

One reviewer

Verdict: acceptable (from the ranking's acceptable line, not typed on this attempt)

Measured

✓ at least five sheet panels: ok
✓ sheet thickness bound to a control: ok
✓ a clearance control and no kerf control: ok
✓ the clearance control is one the kit's README lists: ok
✓ at least two printed parts: ok
✓ verify.ok from declared expectations: ok
✓ the cut & print kit builds: ok
✓ the kit carries print files for the hinges: ok
