Washburn Wonderbar Tremolo System (ZIP STL Kit)
by clayto · published
clone this forge
git clone https://www.partforge.ai/git/p-857b4b8c8587.gitThis clones the published version. Sign in as the owner to clone your latest work.

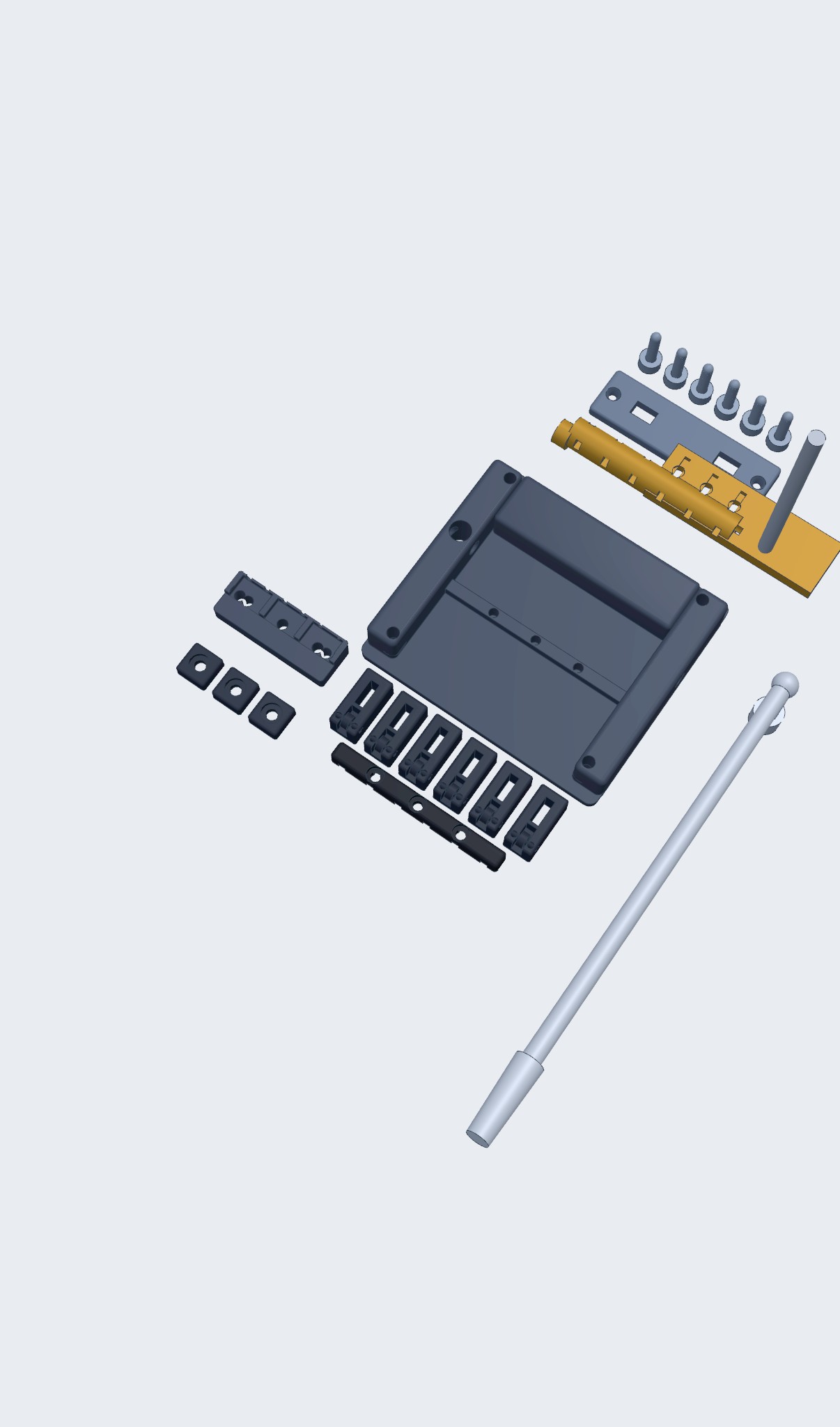

A complete 3D-printable Washburn Wonderbar tremolo system for 6-string guitars, comprising a surface-mount chassis base plate, pivoting torsion cam rotor, transverse pivot axle, spring housing cover, six roller saddles with grooved wheels, saddle pinch block, six fine-tuning thumbscrews, tremolo whammy arm with friction collar, and locking nut assembly with three clamp pads. Adjust string spacing (10.0–11.2 mm), base dimensions (80–96 mm width, 74–88 mm length), whammy arm elbow angle (90–115°), and tremolo dive tilt (−14 to +8°) for custom guitar specs; all parts export individually as STLs or batch-download as ZIP.
Designed by clayto in PartForge, parametric CAD with an AI collaborator. Open it to view in 3D or export STL, 3MF or STEP.
License
Public domain dedicationYou can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
