Floyd Rose Tremolo System
by clayto · published
clone this forge
git clone https://www.partforge.ai/git/p-7baa30adaddb.gitThis clones the published version. Sign in as the owner to clone your latest work.

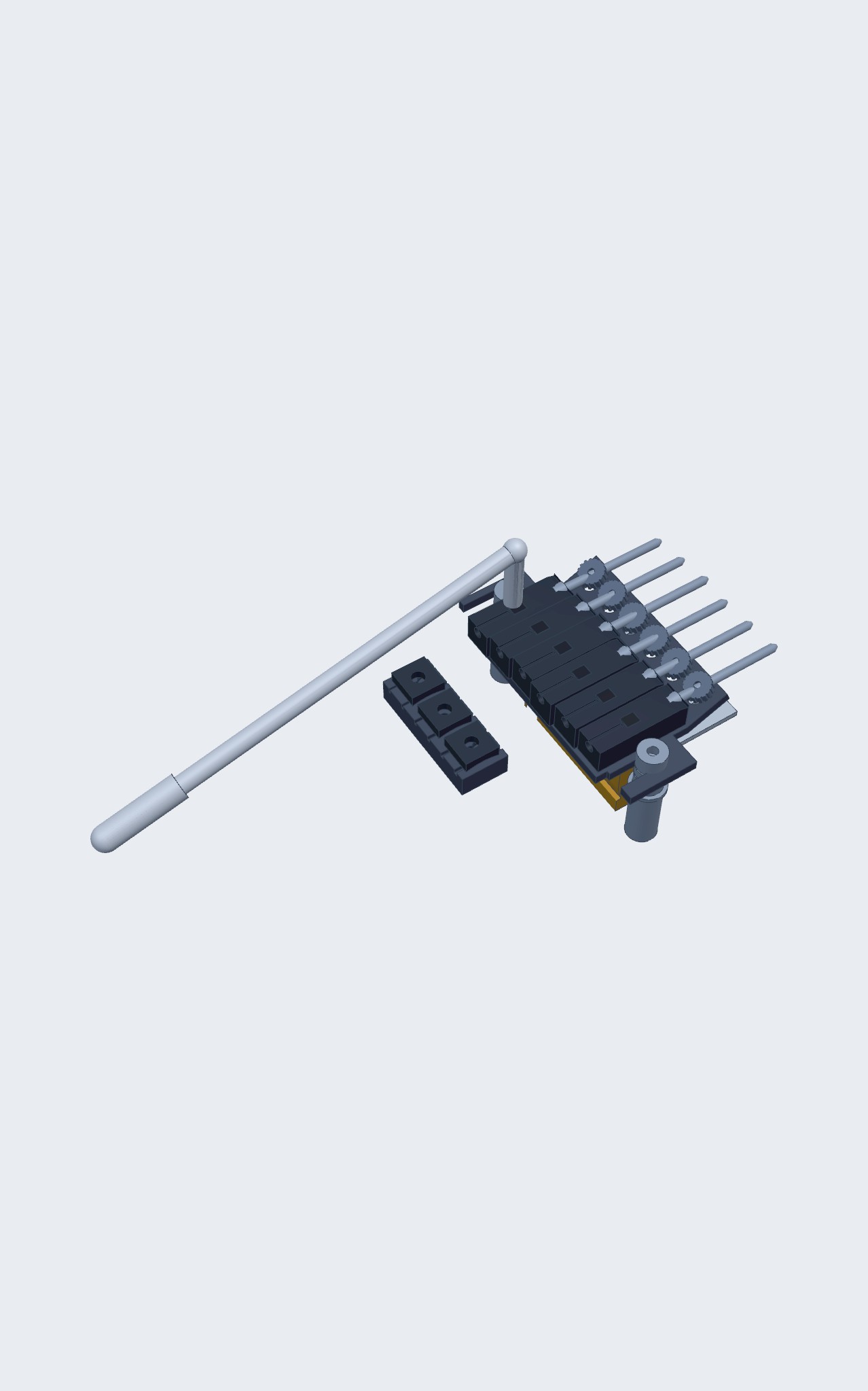

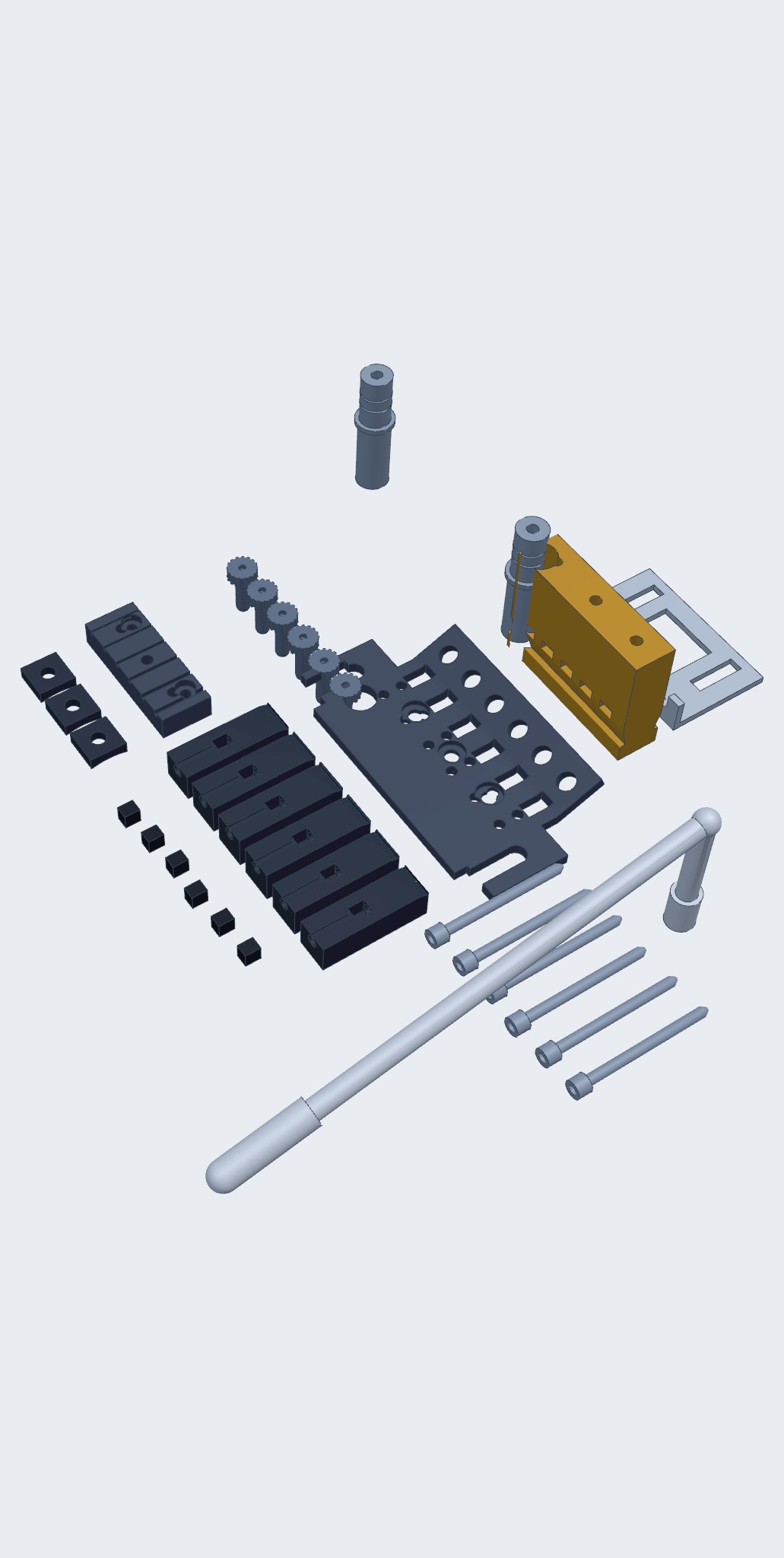

A complete, 3D-printable recreation of a Floyd Rose double-locking tremolo system for electric guitars. Includes the hardened base plate with knife edges, 37 mm sustain block, 6 radius-tiered saddles, string clamp insert blocks, fine-tuning thumbscrews, string locking bolts, whammy bar, spring tension claw, locking nut with clamp pads, and pivot studs. Each physical component exports as a separate STL/3MF ready for slicing, with animated whammy dive and exploded assembly views.
Designed by clayto in PartForge, parametric CAD with an AI collaborator. Open it to view in 3D or export STL, 3MF or STEP.
