Triangular-Truss C-Clamp

Scott

by Scott · published

clone this forge

git clone https://www.partforge.ai/git/p-8919f5209eb7.git

This clones the published version. Sign in as the owner to clone your latest work.

Triangular-Truss C-Clamp1 / 10

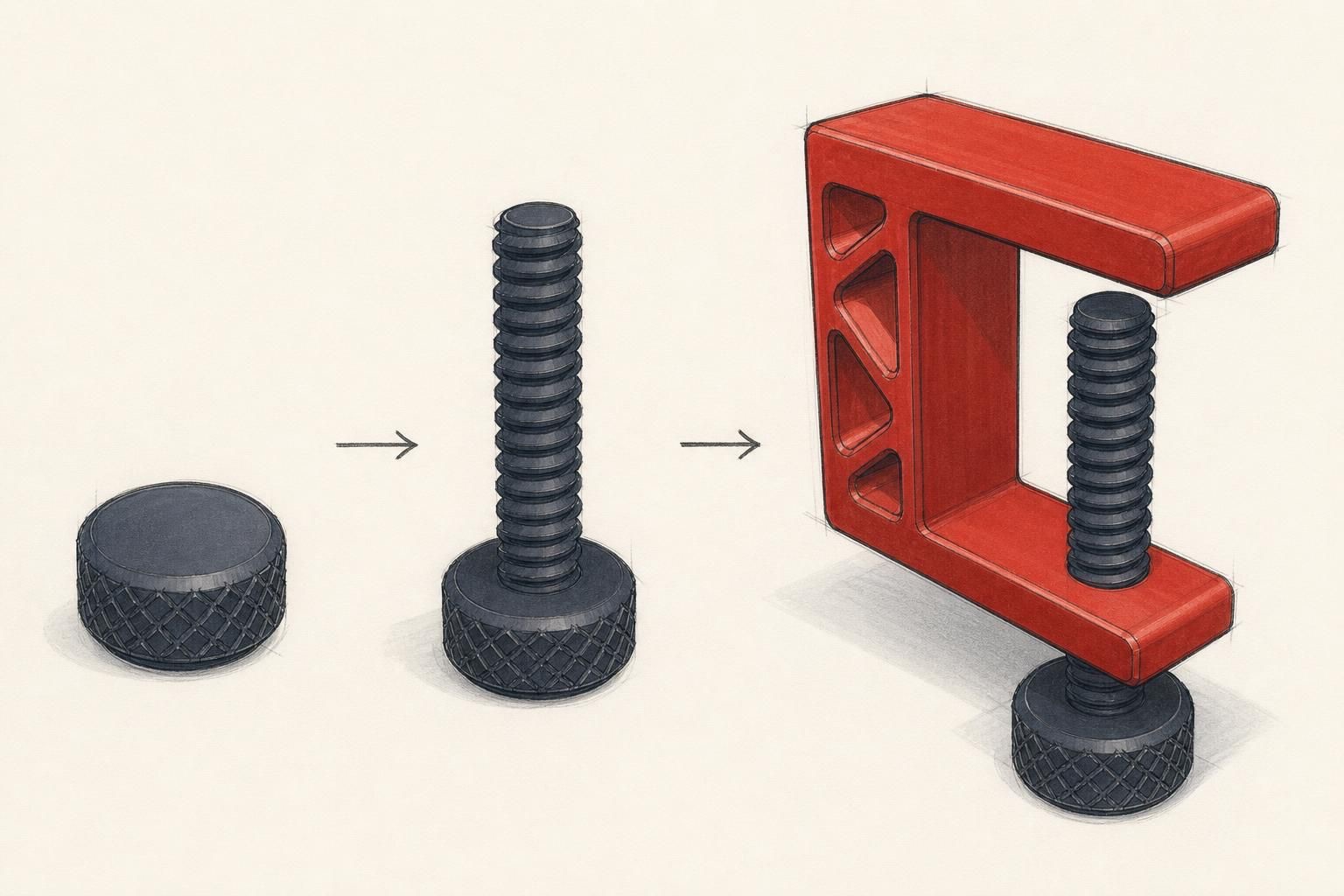

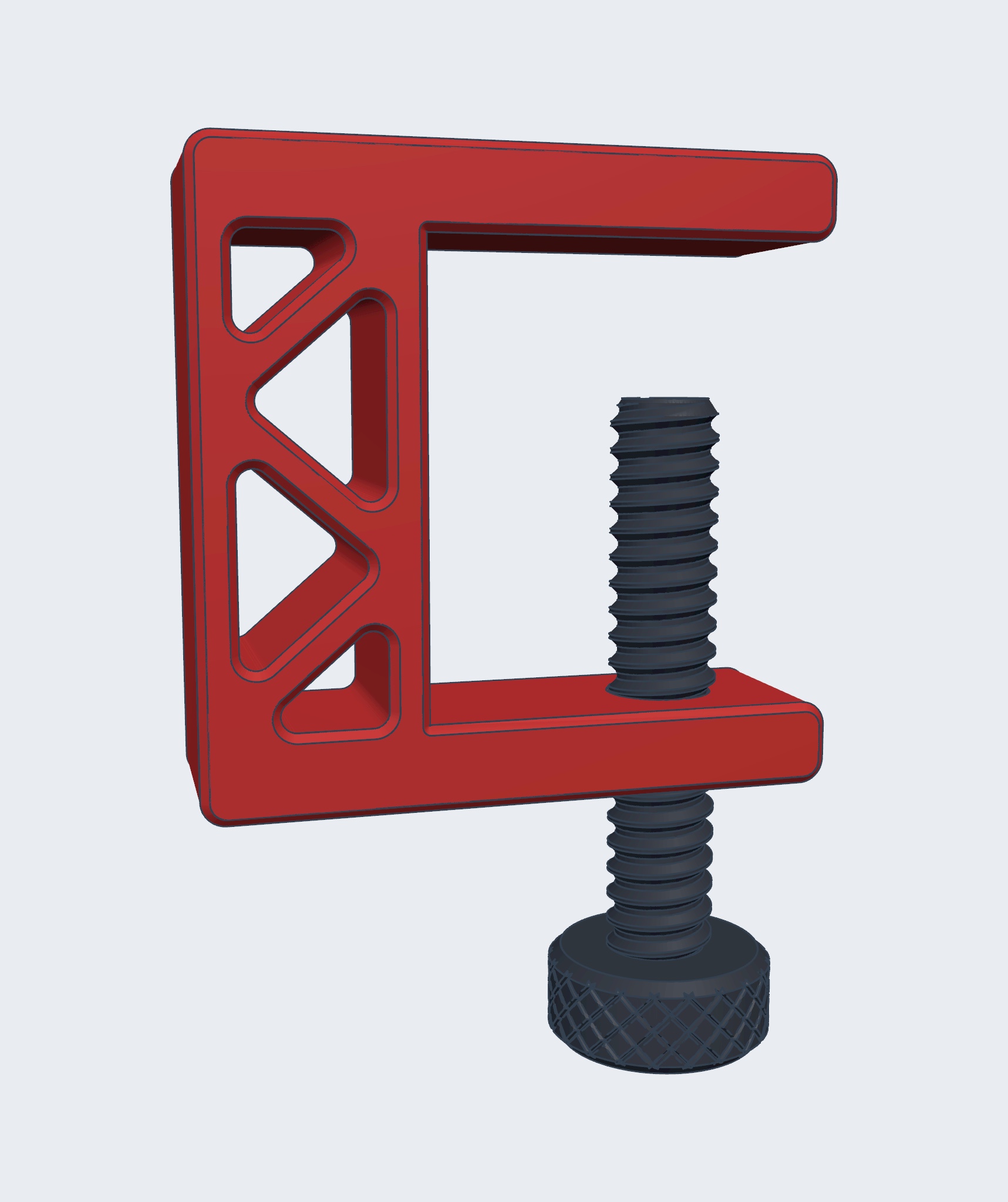

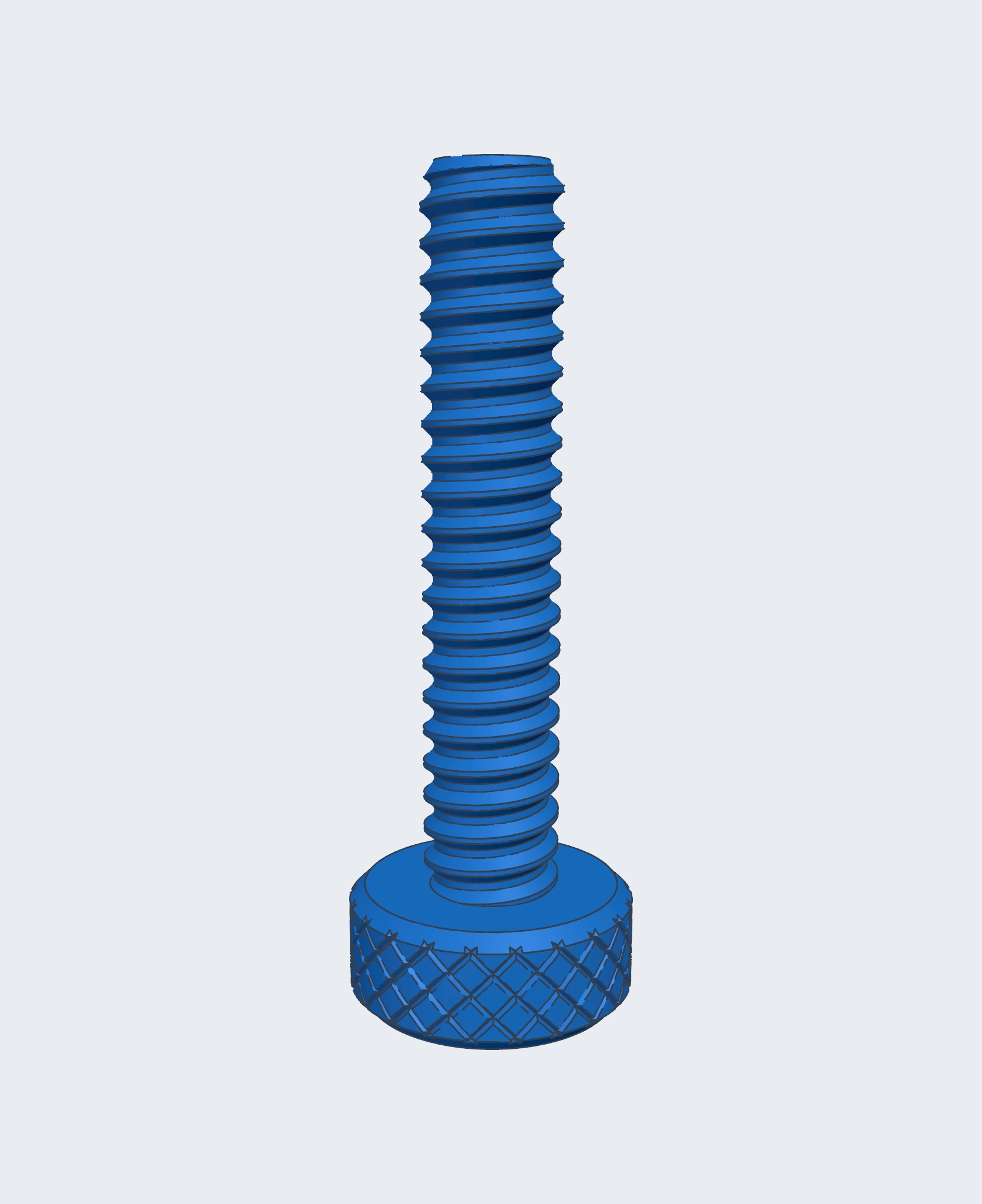

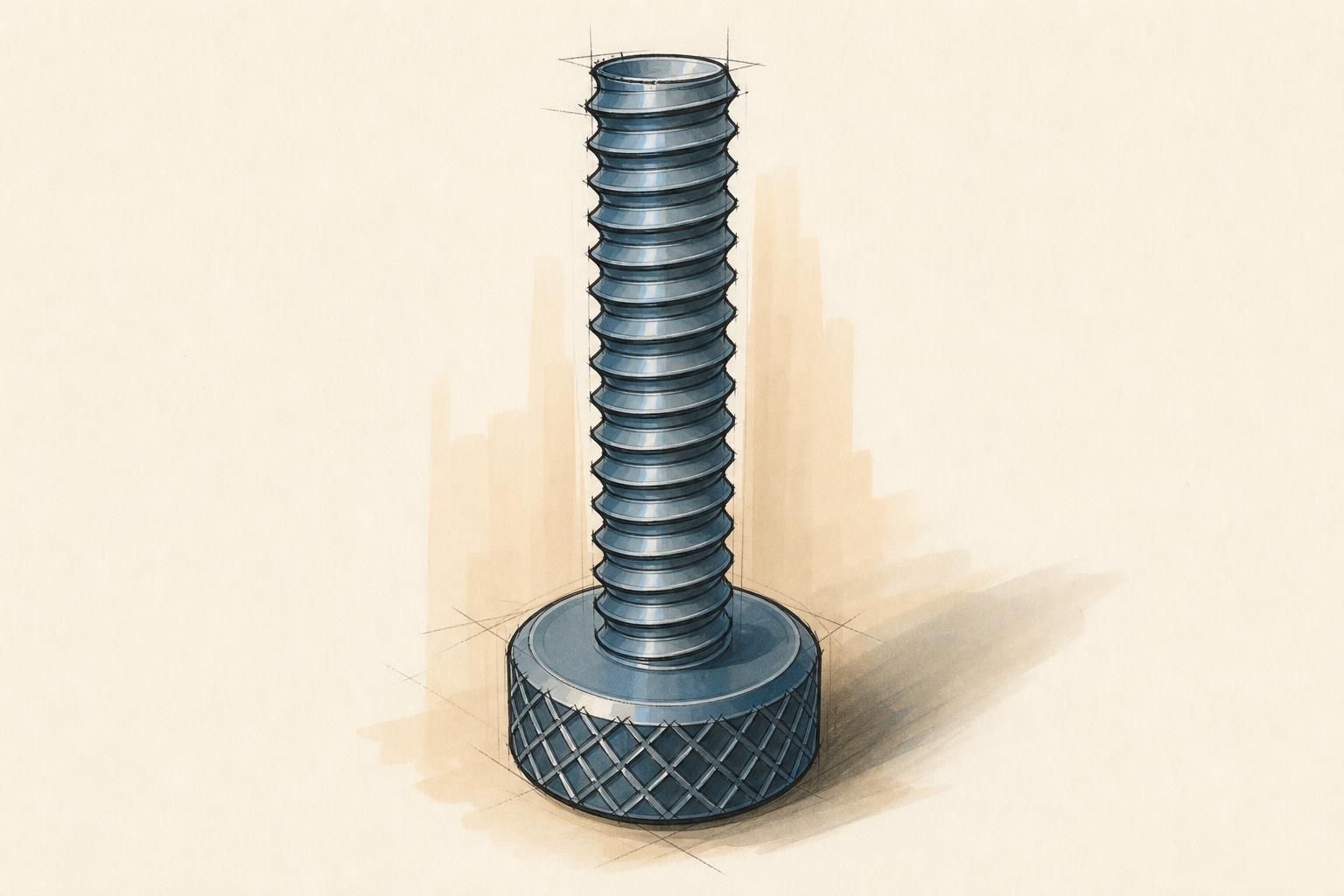

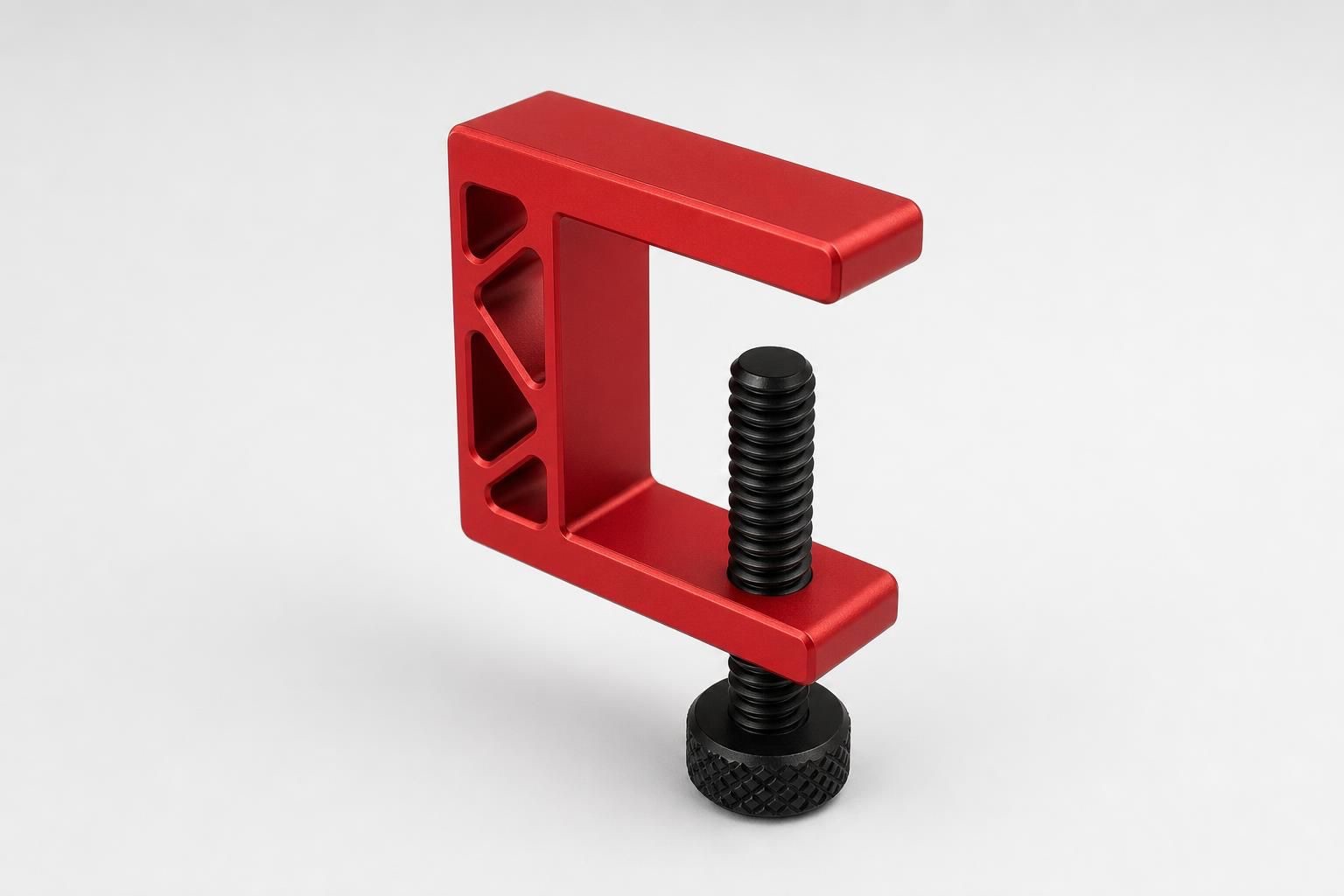

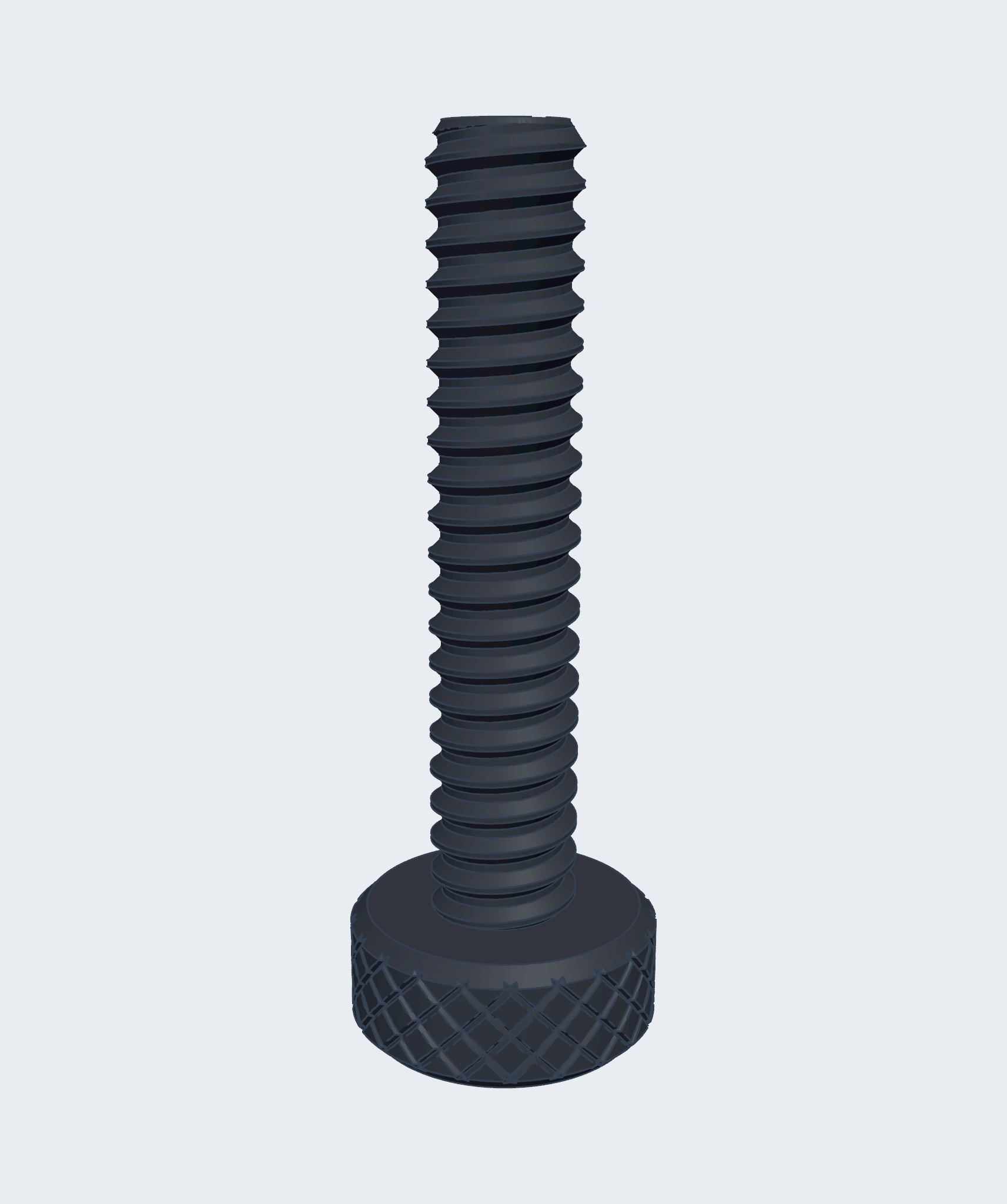

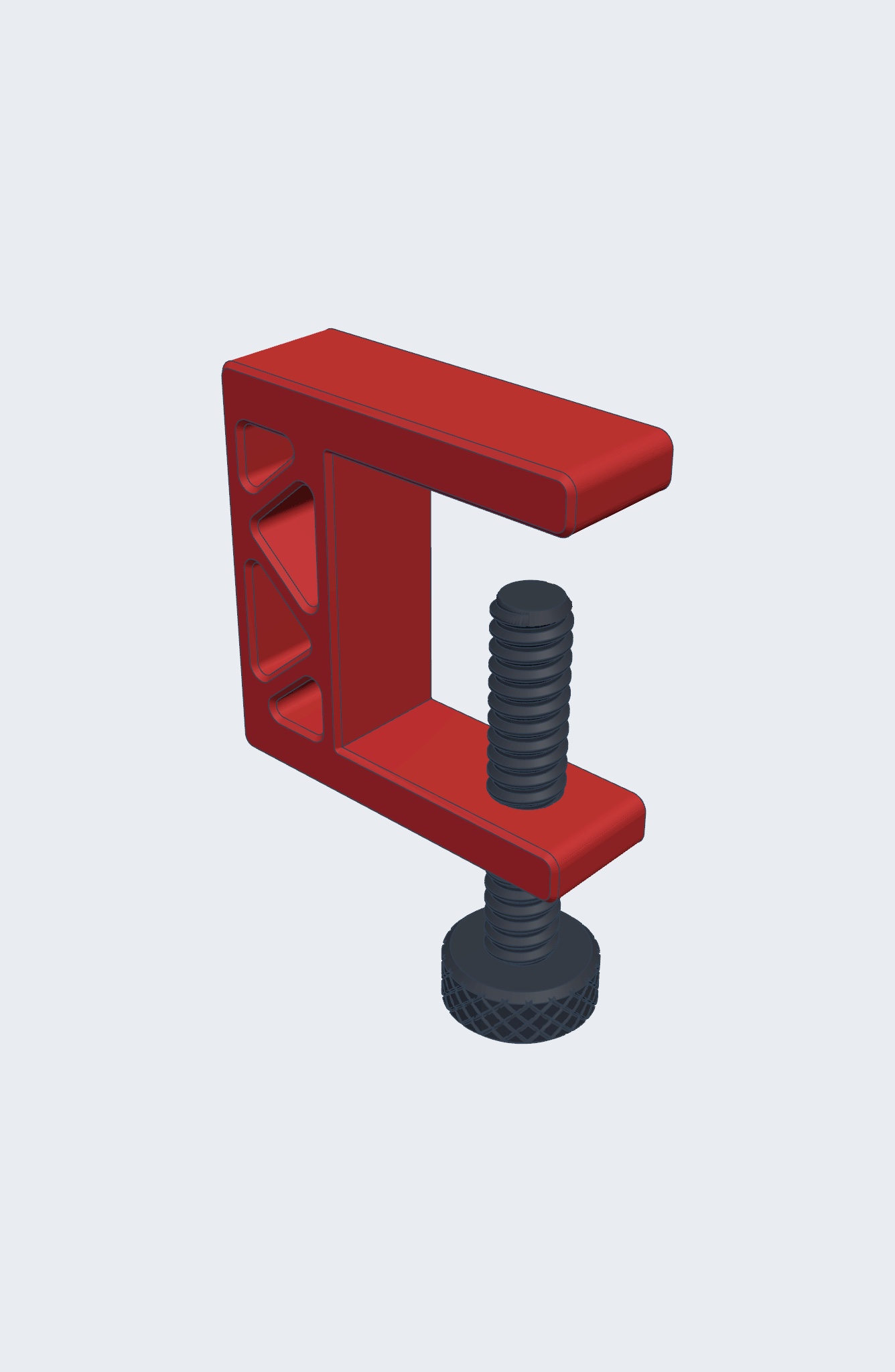

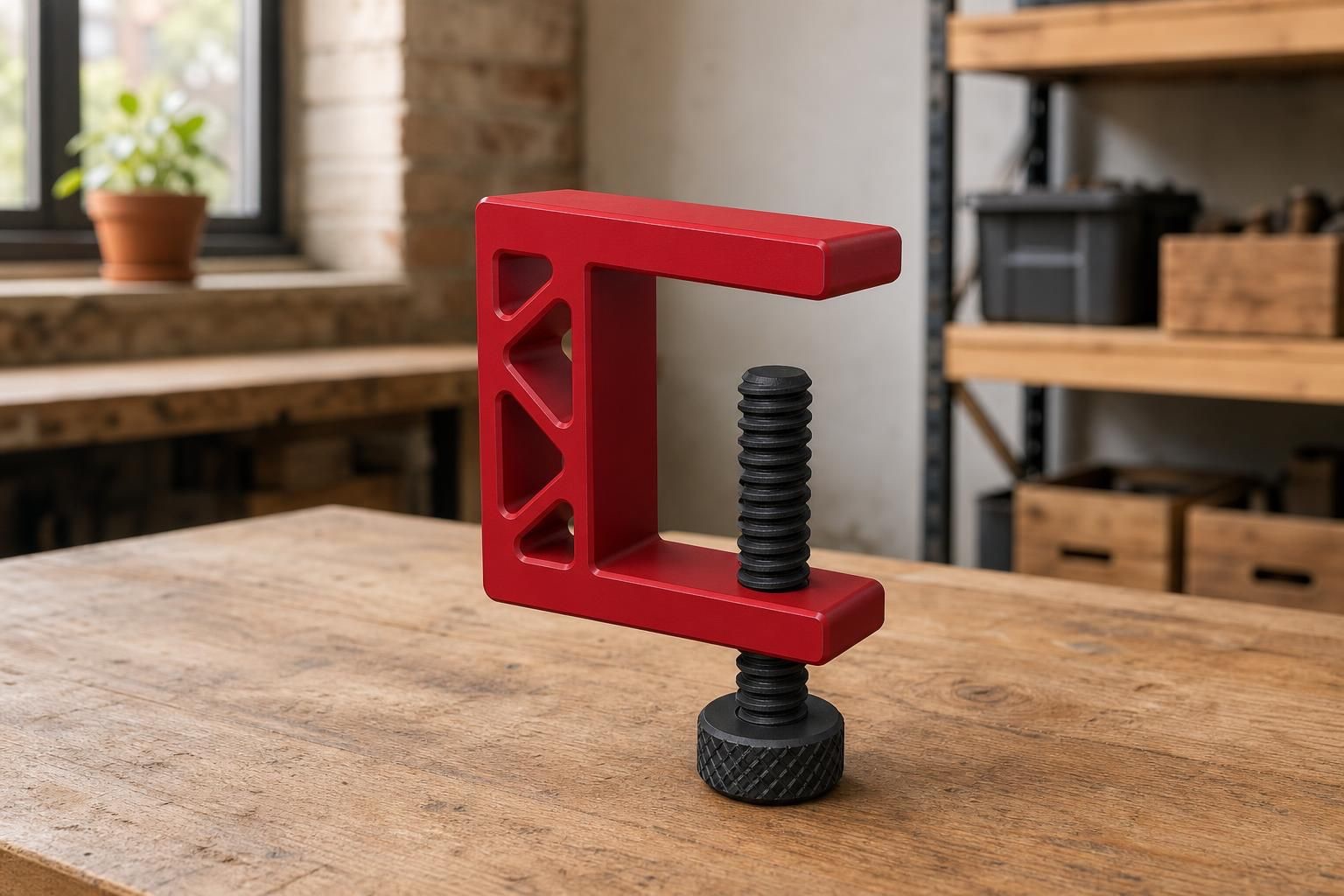

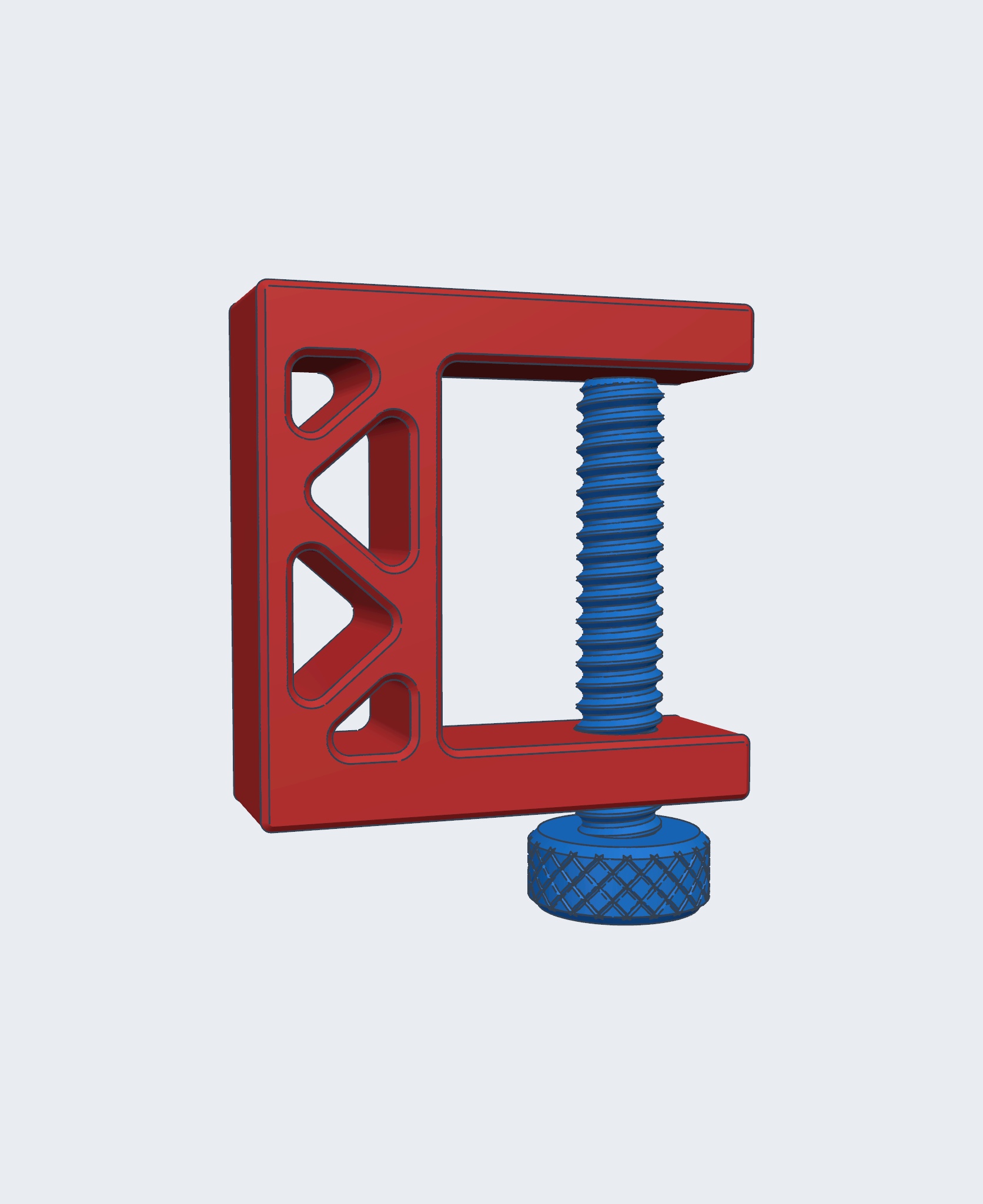

A compact printable C-clamp with a wide, face-beveled frame built from the original alternating contour trusses and a coarse screw with a diamond-cut grip. Each truss chord and diagonal is rounded in 2D before the profiles are joined and extruded as one frame.

Customize in 3D

Adjust its settings live, then export STL, 3MF or STEP. No account needed.

Likes0Comments0Downloads1

Designed by Scott in PartForge, parametric CAD with an AI collaborator.

License

Public domain dedication

You can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
