Mesh rebuild freecad knob

GPT-6 Sol, effort high$0.402m 14s2m 7s waiting on the model5 builds

Reference

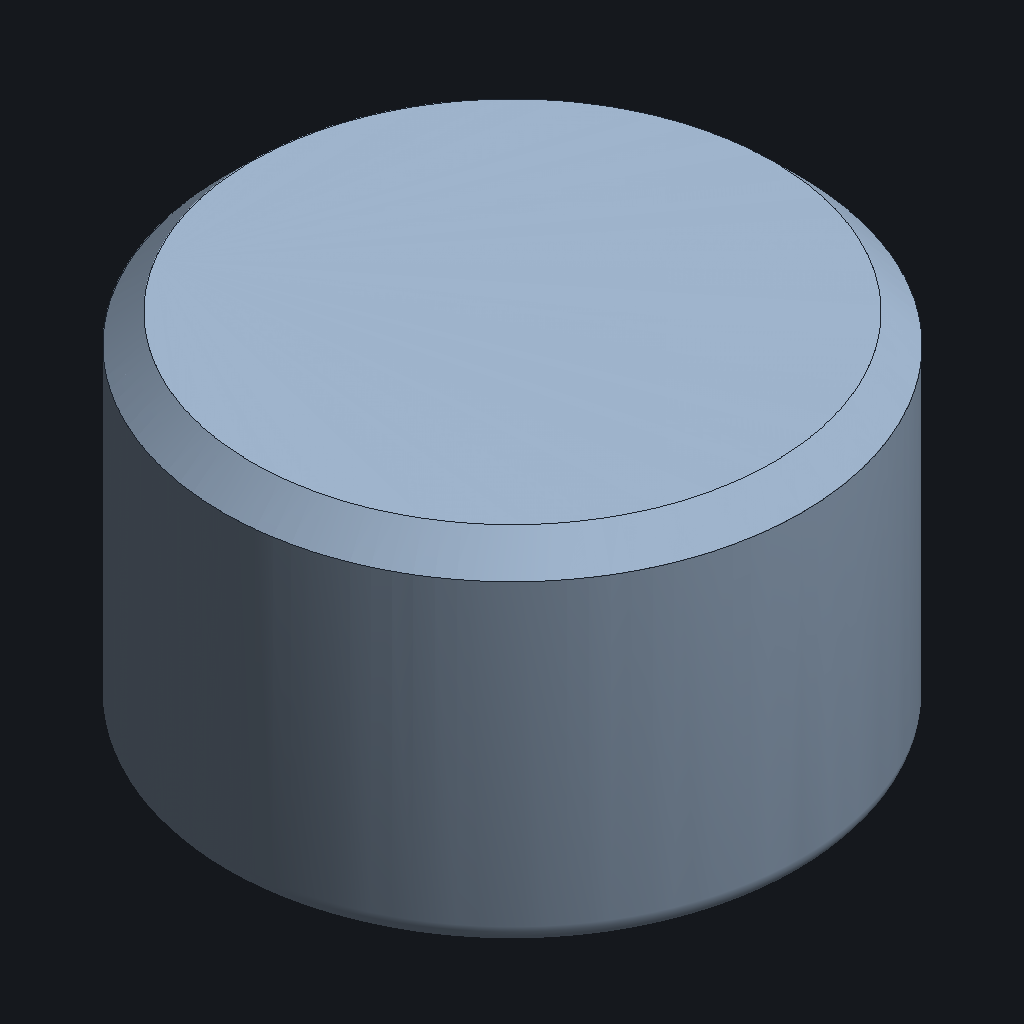

iso
front

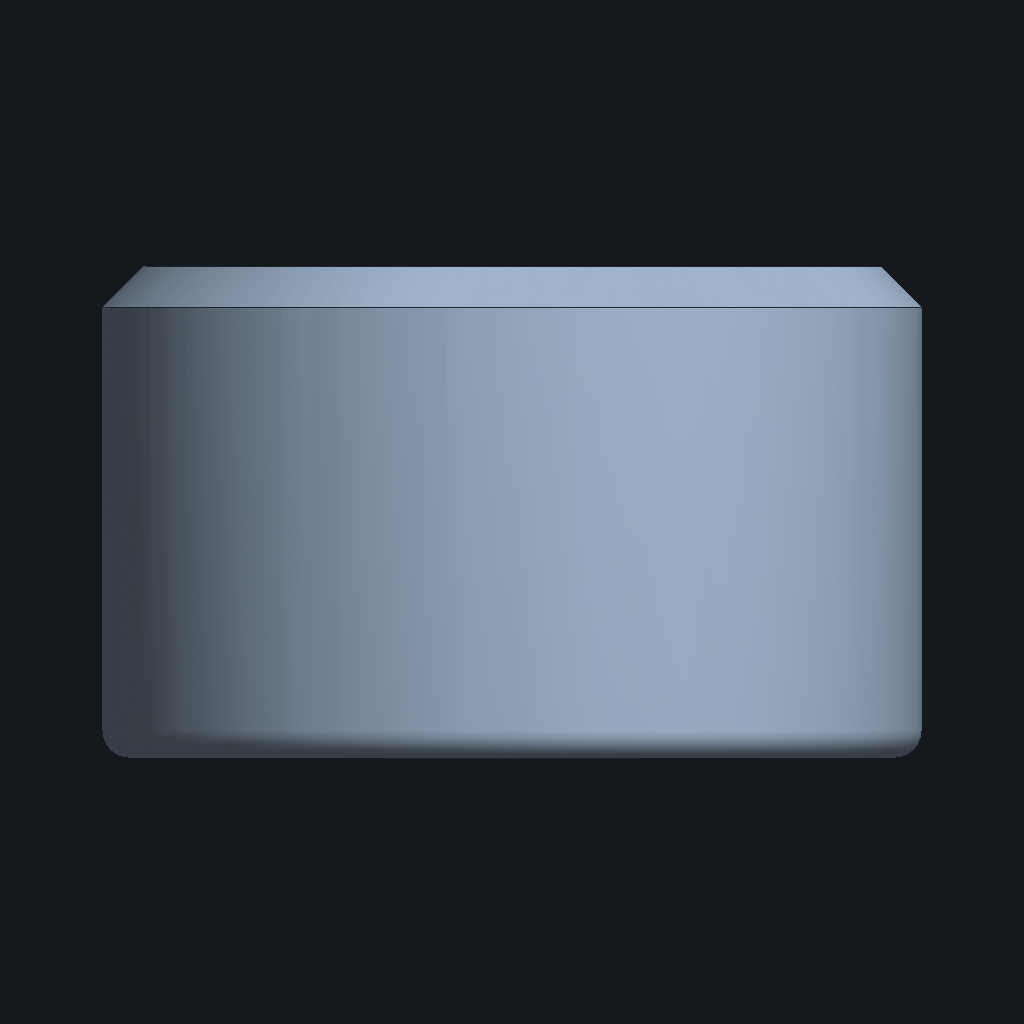

back
top
bottom
left
right

100of 100

built: 100
geometry: 100
AI judge: 7 of 7

What the AI judge checked

Pass:The overall form matches the reference: the same kind of object, the same silhouette from the matching angle
- Opus 5.5: pass: The produced part is a round cylindrical knob with a chamfered top, matching the reference silhouette from every view.
- GPT-6 Sol: pass: The produced part has the same cylindrical knob silhouette as the reference.
Pass:Proportions match: the relative sizes of the major dimensions agree with the reference within what the eye can judge
- Opus 5.5: pass: Diameter-to-height ratio and chamfer size appear identical to the reference in the side and top views.
- GPT-6 Sol: pass: The body height, diameter, and top chamfer appear proportionally consistent with the reference.
Pass:Every major feature visible in the reference (holes, slots, bosses, tabs, lips) is present in the result
- Opus 5.5: pass: The chamfered top edge and the hexagonal socket on the underside are both present.
- GPT-6 Sol: pass: The top chamfer and underside hexagonal socket are both present.
Pass:Those features sit where the reference has them
- Opus 5.5: pass: The hex socket is centered on the bottom face with the same orientation as the reference, and the chamfer sits at the top edge.
- GPT-6 Sol: pass: The chamfer follows the top perimeter, and the socket is centered on the underside as in the reference.
Pass:Nothing is present that the reference does not show — no decorative or unexplained geometry
- Opus 5.5: pass: No extra geometry beyond the body, chamfer and hex socket is visible.
- GPT-6 Sol: pass: The renders show no additional geometric features.

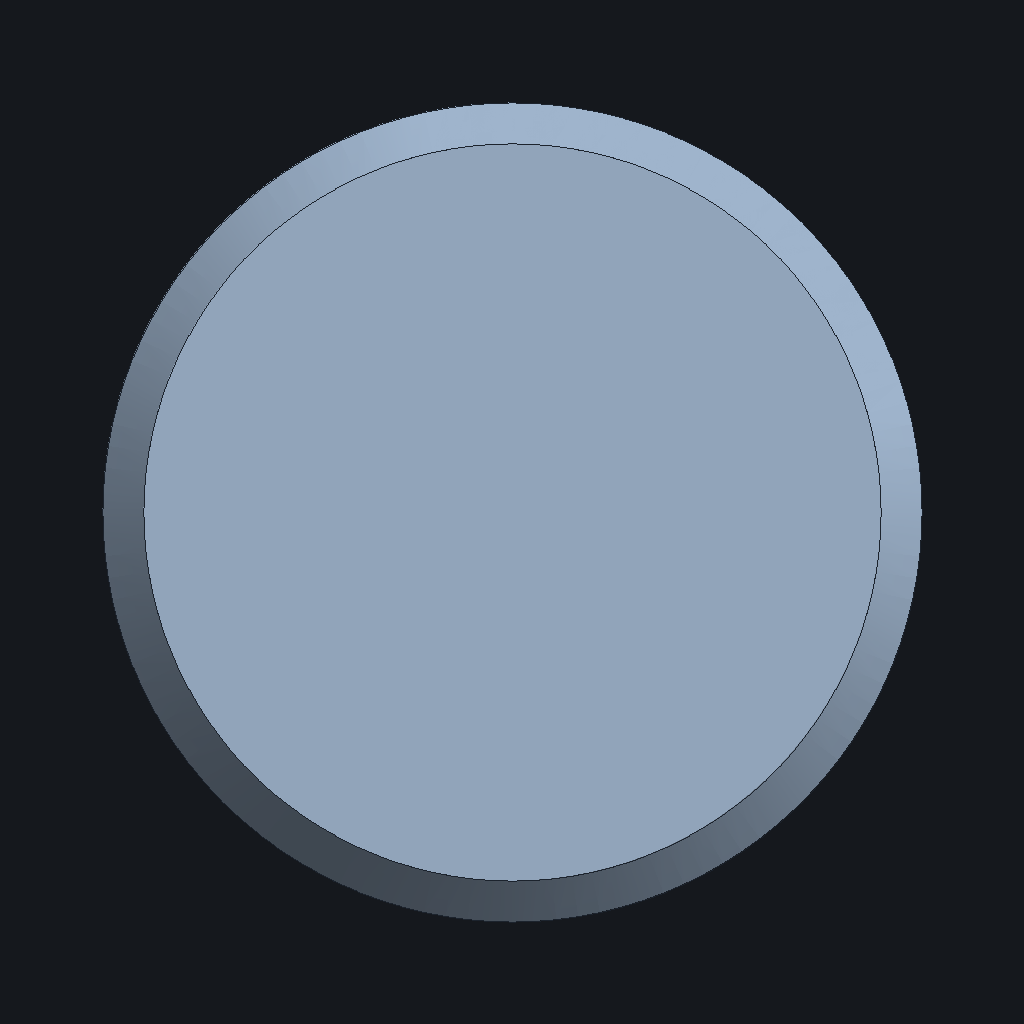

Pass:The top edge is chamfered, not sharp
- Opus 5.5: pass: The side views show an angled band at the top edge, and the top view shows a ring between the outer and inner circles.
- GPT-6 Sol: pass: A sloped chamfer is clearly visible around the top edge.

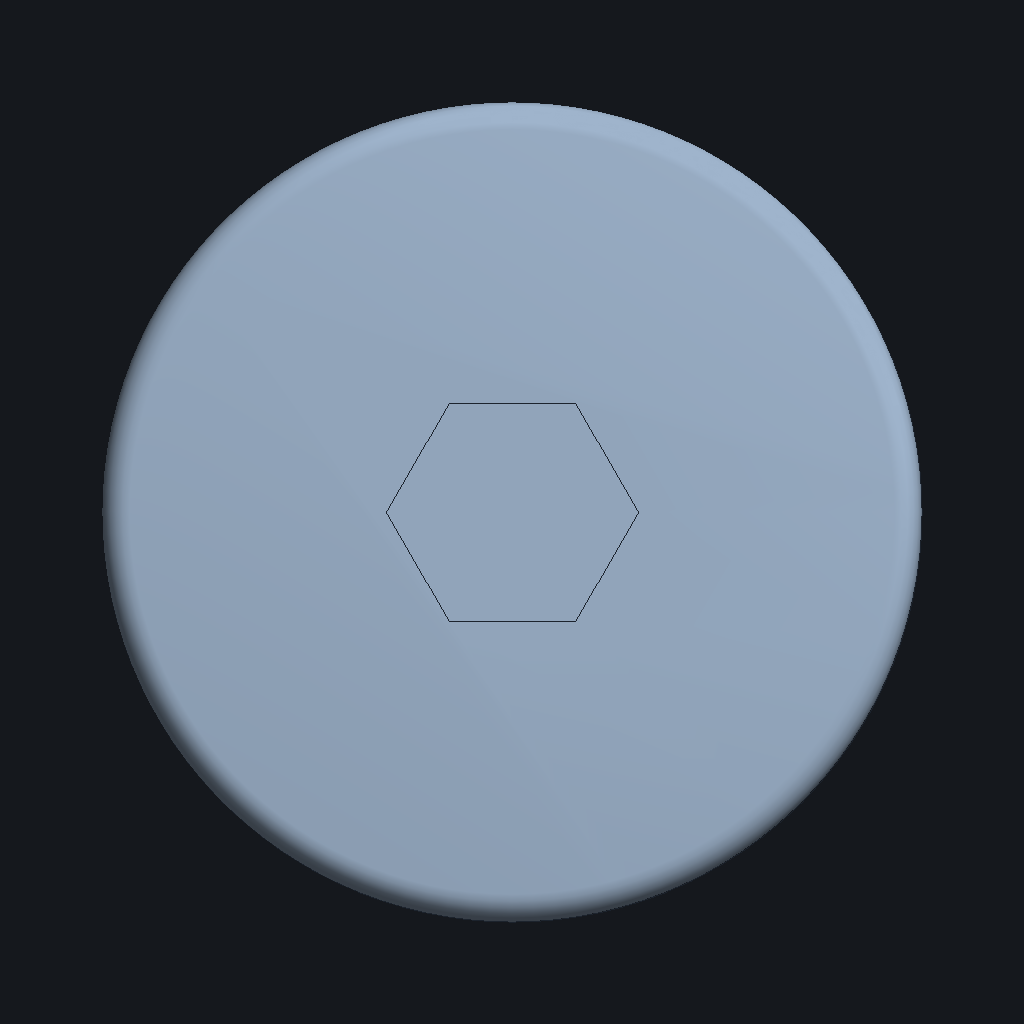

Pass:A hexagonal socket is visible in the bottom view
- Opus 5.5: pass: The bottom view clearly shows a centered hexagonal recess.
- GPT-6 Sol: pass: The bottom view clearly shows a hexagonal socket.

One reviewer

Verdict: acceptable (from the ranking's acceptable line, not typed on this attempt)

Measured

✓ watertight: true == true
✓ one sub-part named knob: ok
✓ volume within 3 % of the mesh: ok
✓ bounding box within 0.5 mm of the mesh: ok
✓ symmetric difference under the measured floor: ok
✓ the socket clears a 8 mm key across the flats: ok
✓ the socket is hexagonal, not round: ok
✓ the socket is 6 mm deep: ok
✓ the imported knob is still declared as an import: ok
✓ asked the oracle at most once: ok
✓ sweep diameter=20: diameter tracks the control: ok
✓ sweep diameter=40: diameter tracks the control: ok
✓ sweep height=13: height tracks the control: ok
✓ sweep height=23: height tracks the control: ok
