Mesh rebuild freecad knob

Opus 5.5, effort high$0.281m 14s1m 8s waiting on the model2 builds

Reference
iso
front
back
top
bottom
left
right

96of 100

built: 100
geometry: 93
AI judge: 7 of 7

What the AI judge checked

Pass:The overall form matches the reference: the same kind of object, the same silhouette from the matching angle
- Opus 5.5: pass: The result is a round cylindrical knob with a chamfered top, matching the reference silhouette in every view.
- GPT-6 Sol: pass: The produced part has the same round, straight-sided silhouette with a chamfered top as the reference.
Pass:Proportions match: the relative sizes of the major dimensions agree with the reference within what the eye can judge
- Opus 5.5: pass: The diameter-to-height ratio and chamfer size appear identical between the reference and result side views.
- GPT-6 Sol: pass: The body height, diameter, and chamfer width appear to match the reference closely.
Pass:Every major feature visible in the reference (holes, slots, bosses, tabs, lips) is present in the result
- Opus 5.5: pass: Both the top chamfer and the hexagonal underside socket are present in the result.
- GPT-6 Sol: pass: The top chamfer and underside hexagonal socket visible in the reference are both present.
Pass:Those features sit where the reference has them
- Opus 5.5: pass: The hex socket is centered on the bottom face and the chamfer is on the top edge, as in the reference.
- GPT-6 Sol: pass: The chamfer follows the top perimeter, and the hexagonal socket is centered underneath as in the reference.
Pass:Nothing is present that the reference does not show — no decorative or unexplained geometry
- Opus 5.5: pass: No extra geometry beyond the body, chamfer, and hex socket is visible.
- GPT-6 Sol: pass: The renders show no additional holes, bosses, or decorative features.

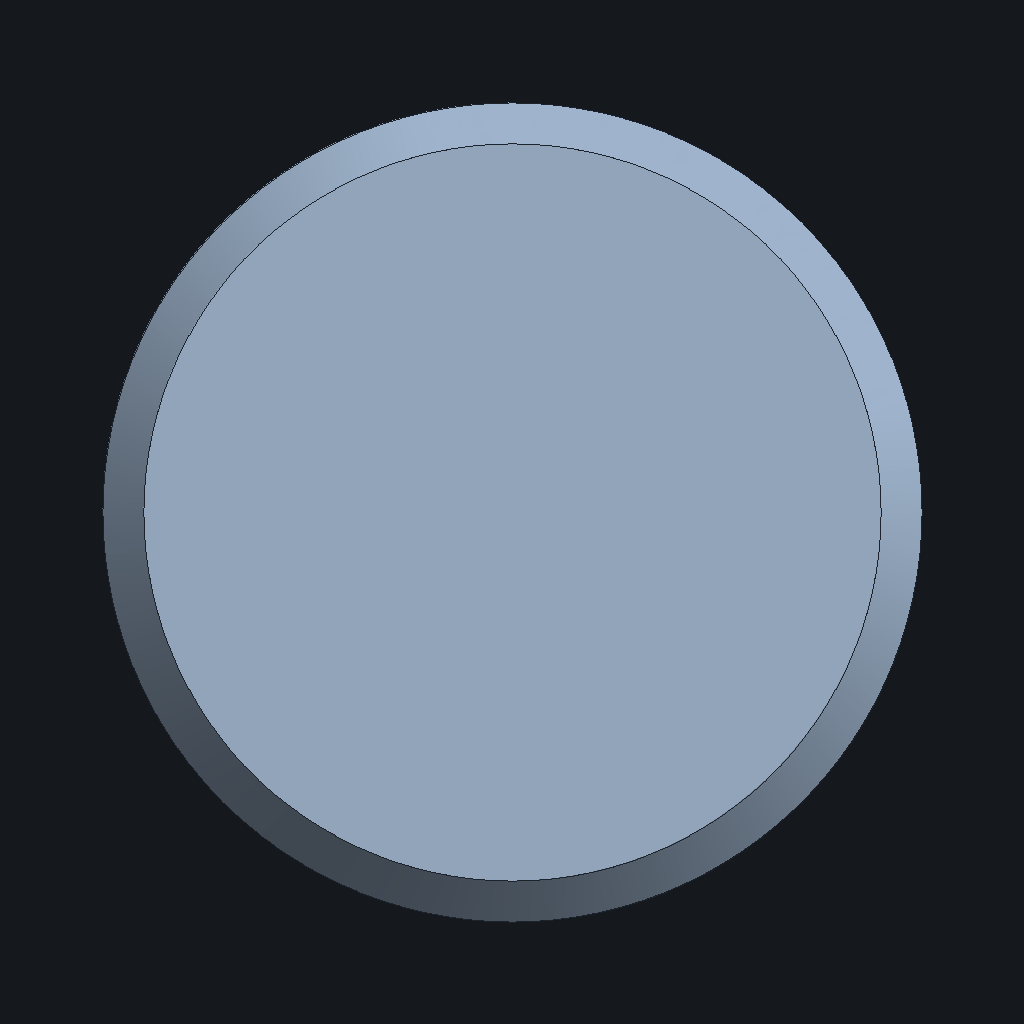

Pass:The top edge is chamfered, not sharp

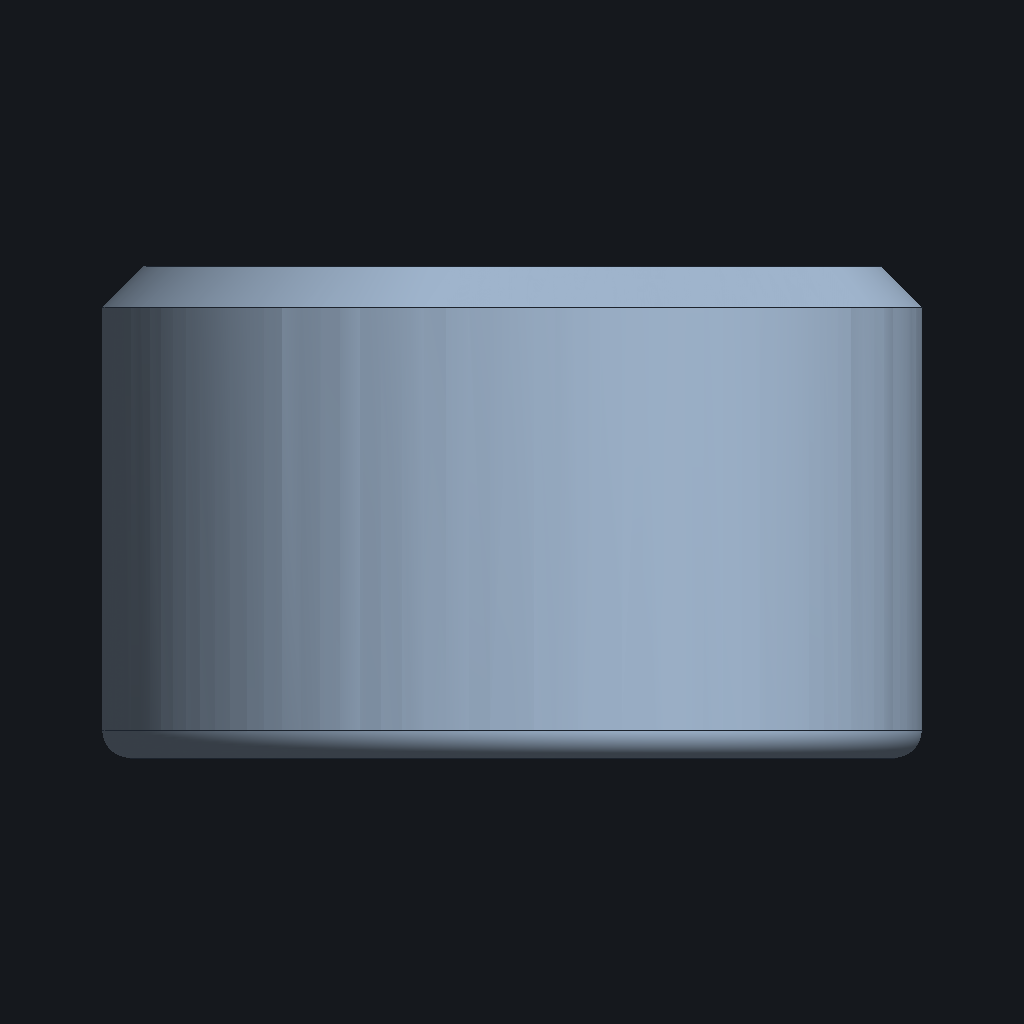

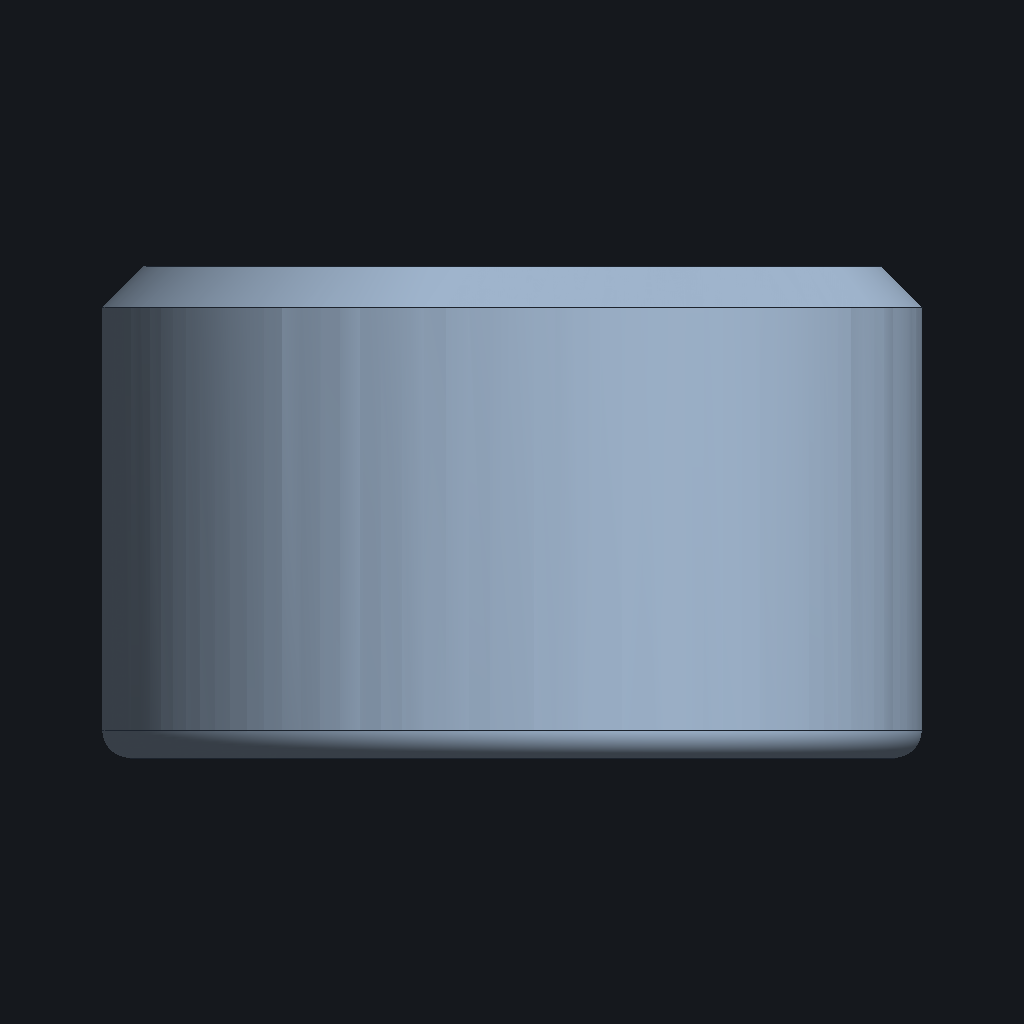

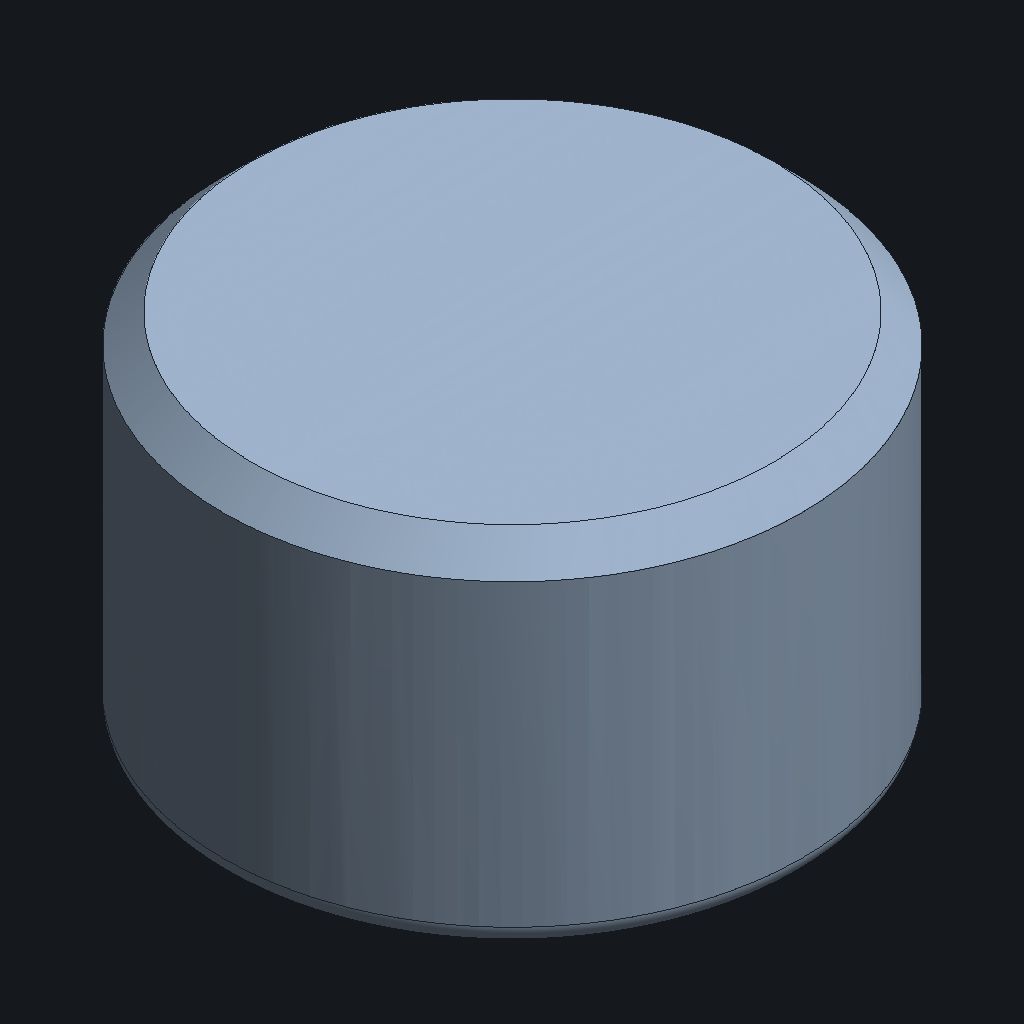

- Opus 5.5: pass: The side and isometric views show a beveled ring at the top edge.
- GPT-6 Sol: pass: A sloped band is clearly visible around the top edge.

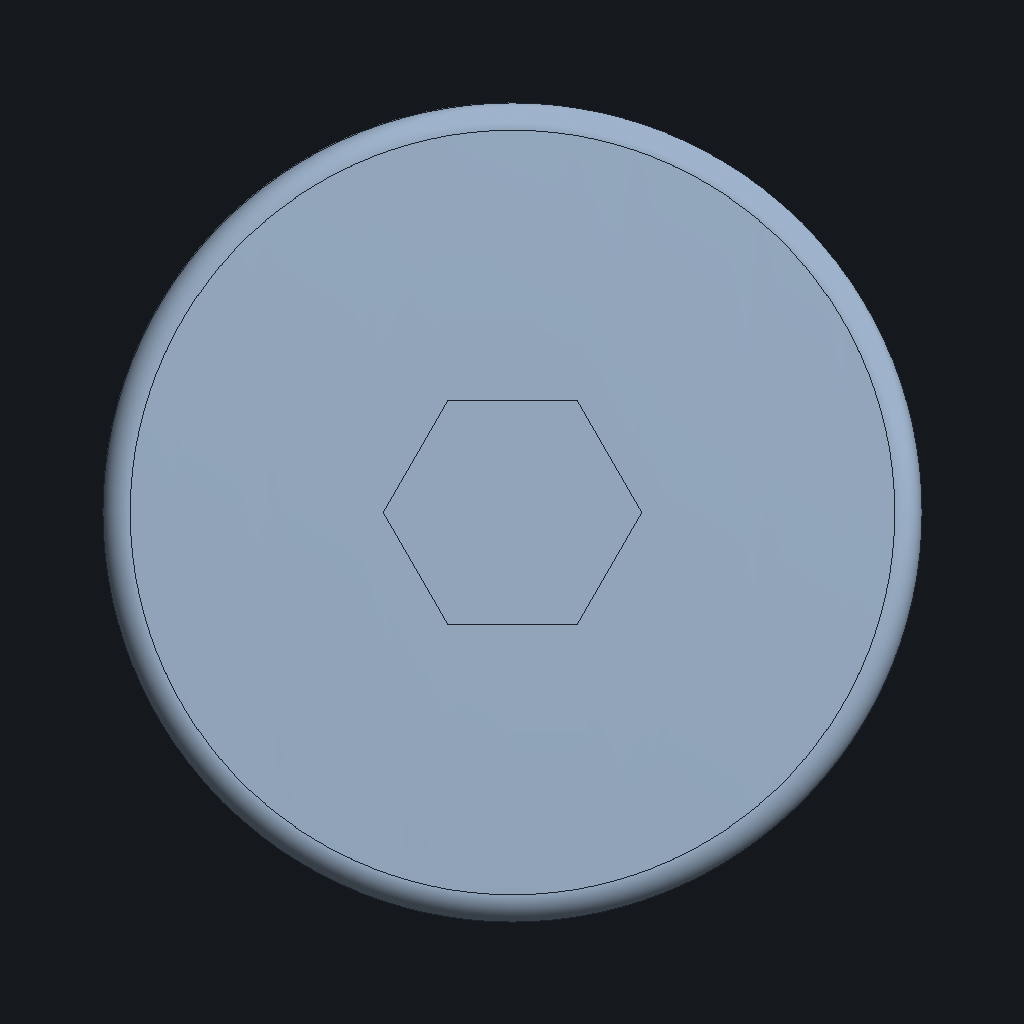

Pass:A hexagonal socket is visible in the bottom view
- Opus 5.5: pass: The bottom view clearly shows a centered hexagonal socket.
- GPT-6 Sol: pass: The bottom view clearly shows a hexagonal socket.

One reviewer

Verdict: acceptable (from the ranking's acceptable line, not typed on this attempt)

Measured

✓ watertight: true == true
✓ one sub-part named knob: ok
✓ volume within 3 % of the mesh: ok
✓ bounding box within 0.5 mm of the mesh: ok
✓ symmetric difference under the measured floor: ok
✓ the socket clears a 8 mm key across the flats: ok
✗ the socket is hexagonal, not round: predicate returned false
✓ the socket is 6 mm deep: ok
✓ the imported knob is still declared as an import: ok
✓ asked the oracle at most once: ok
✓ sweep diameter=20: diameter tracks the control: ok
✓ sweep diameter=40: diameter tracks the control: ok
✓ sweep height=13: height tracks the control: ok
✓ sweep height=23: height tracks the control: ok
