Mesh holder holes

Opus 5.5, effort high$0.321m 13s1m 10s waiting on the model4 builds, 1 failed

Reference

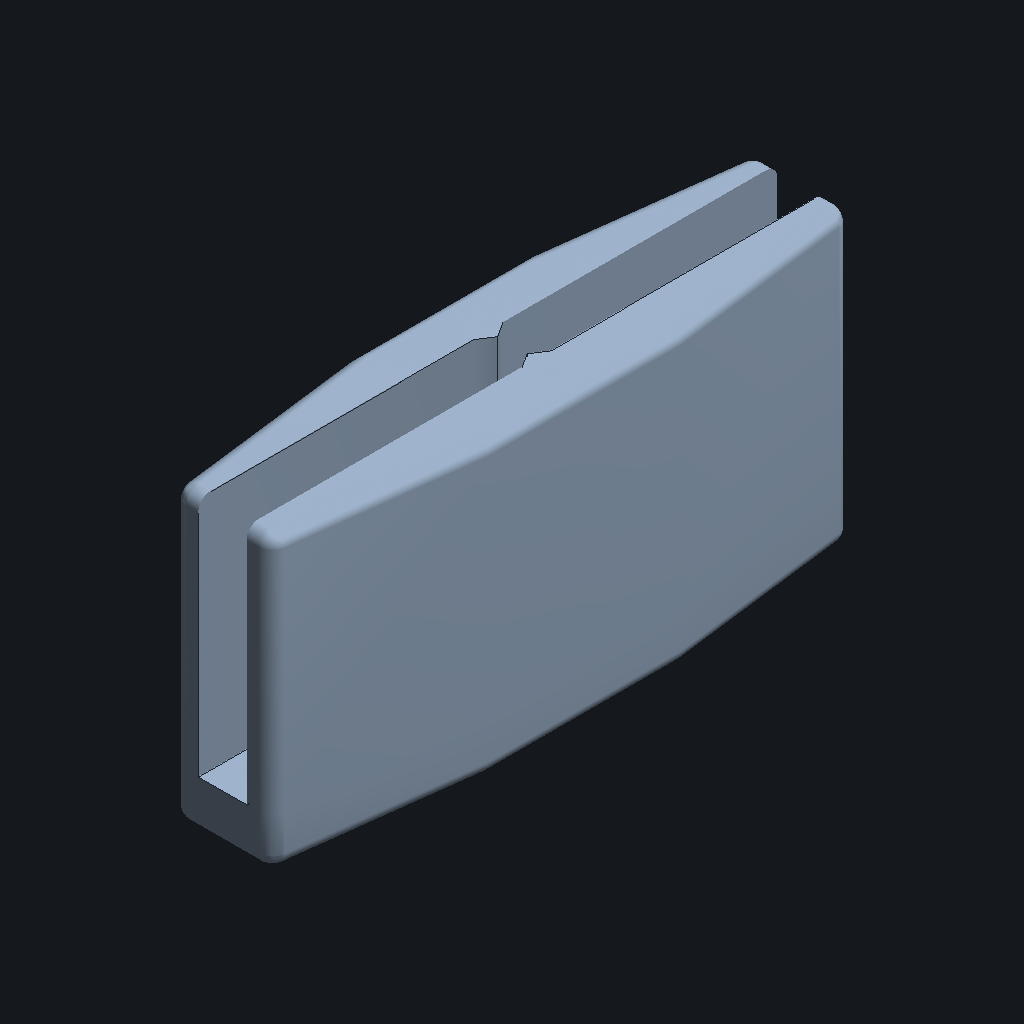

iso
front

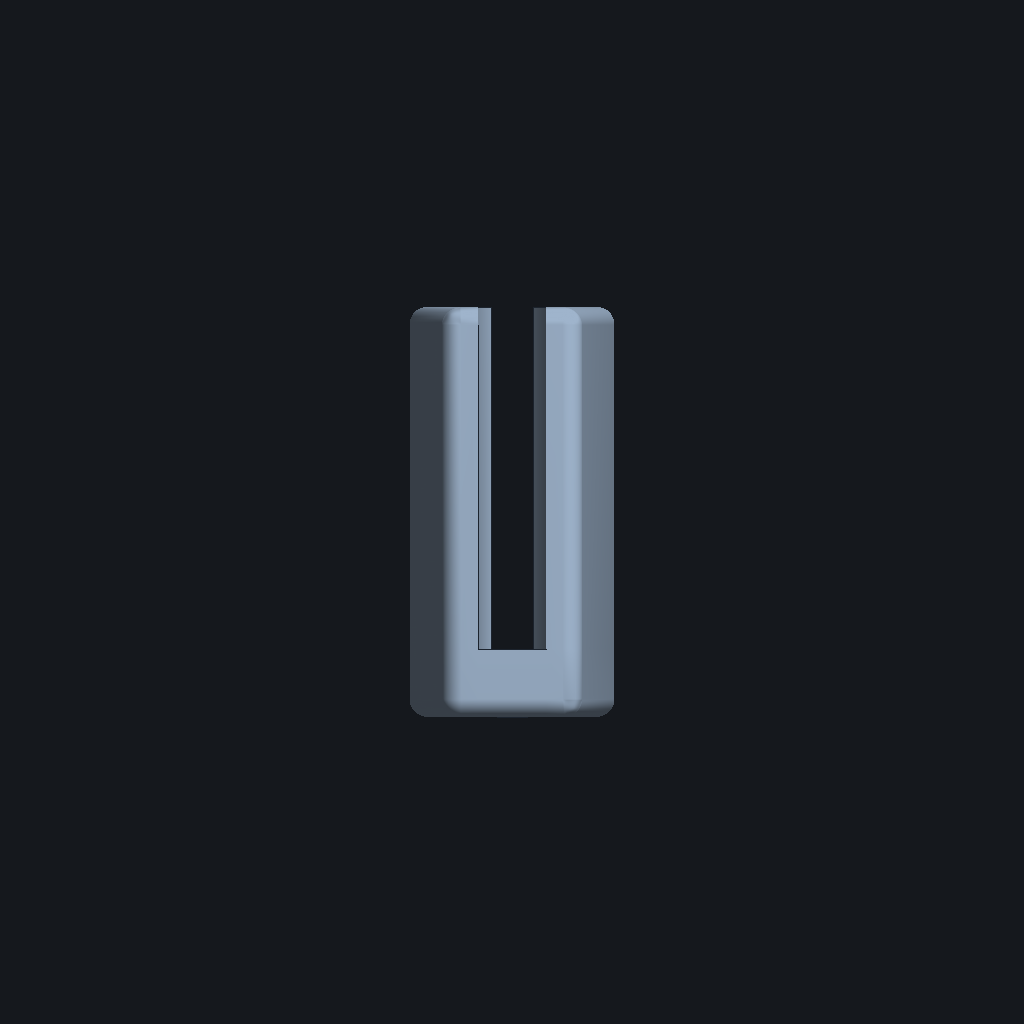

back

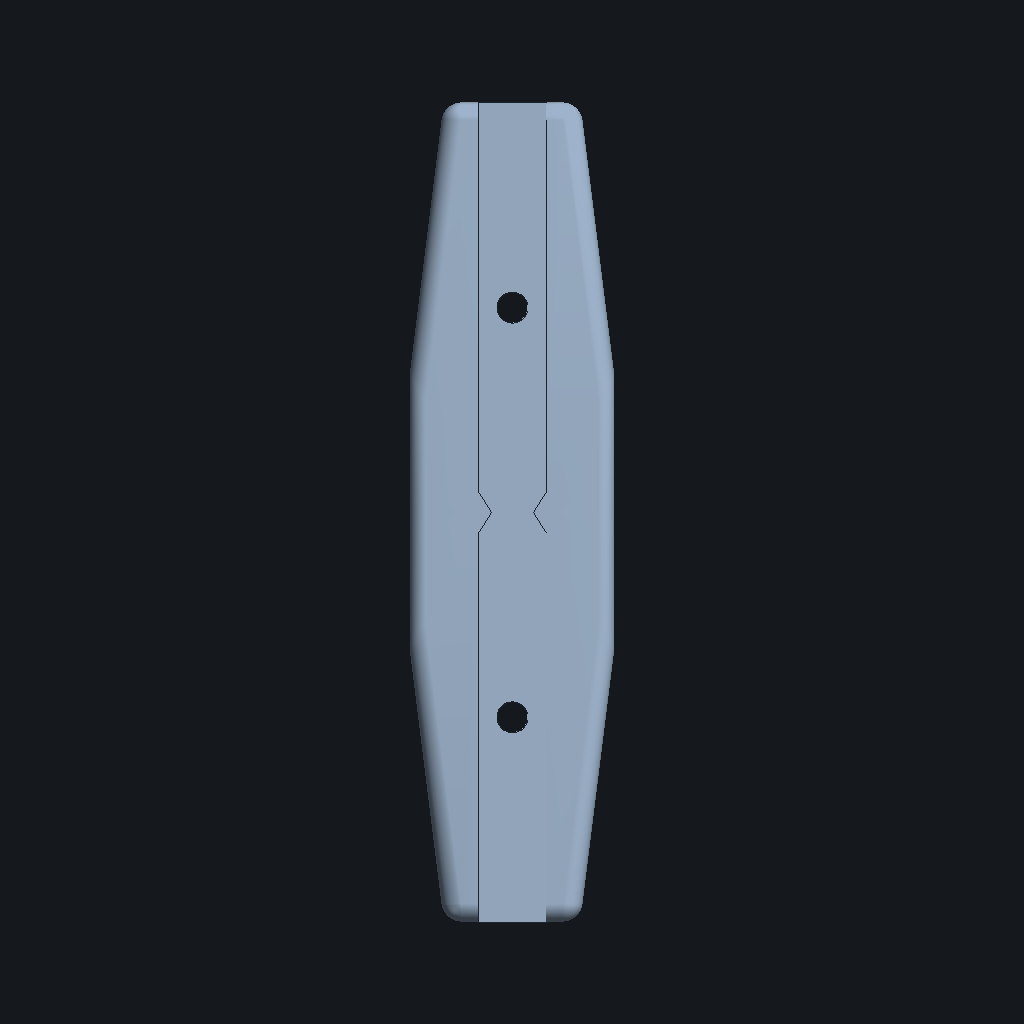

top

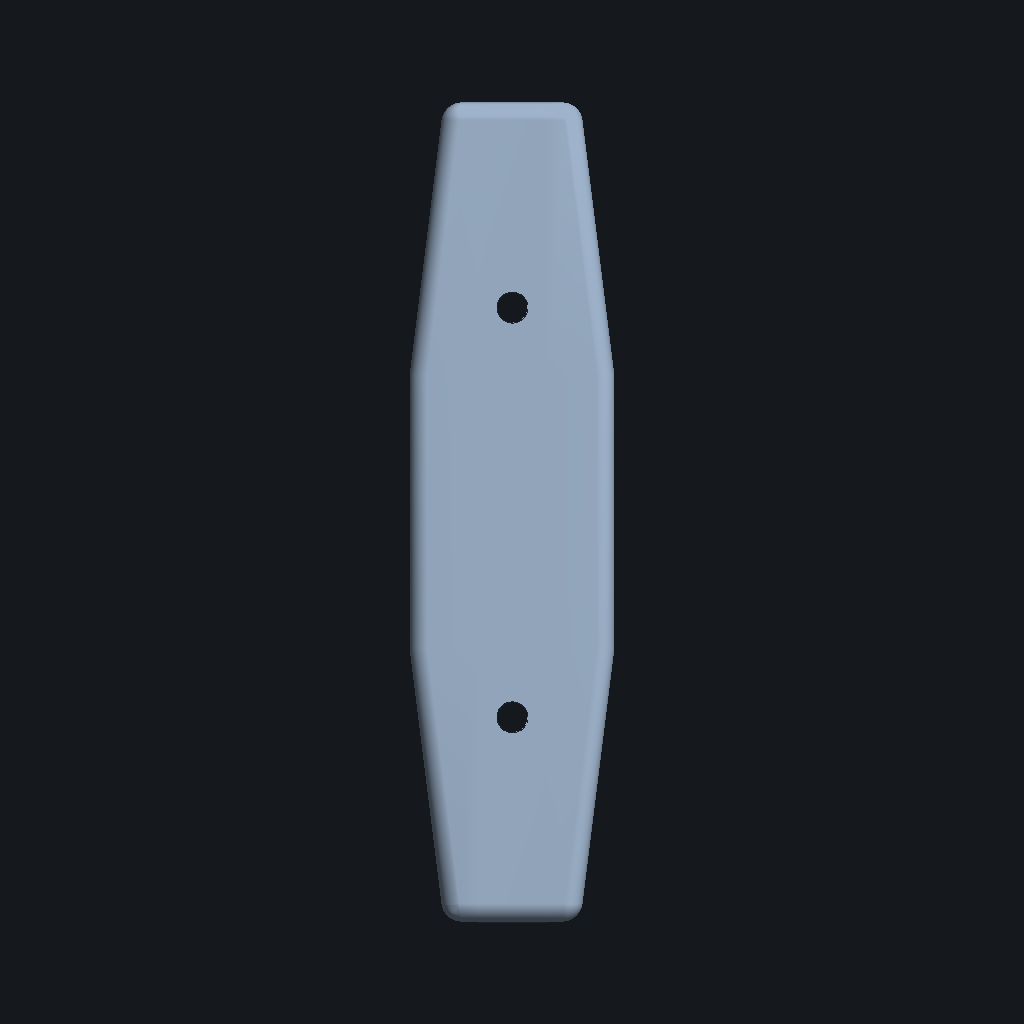

bottom
left

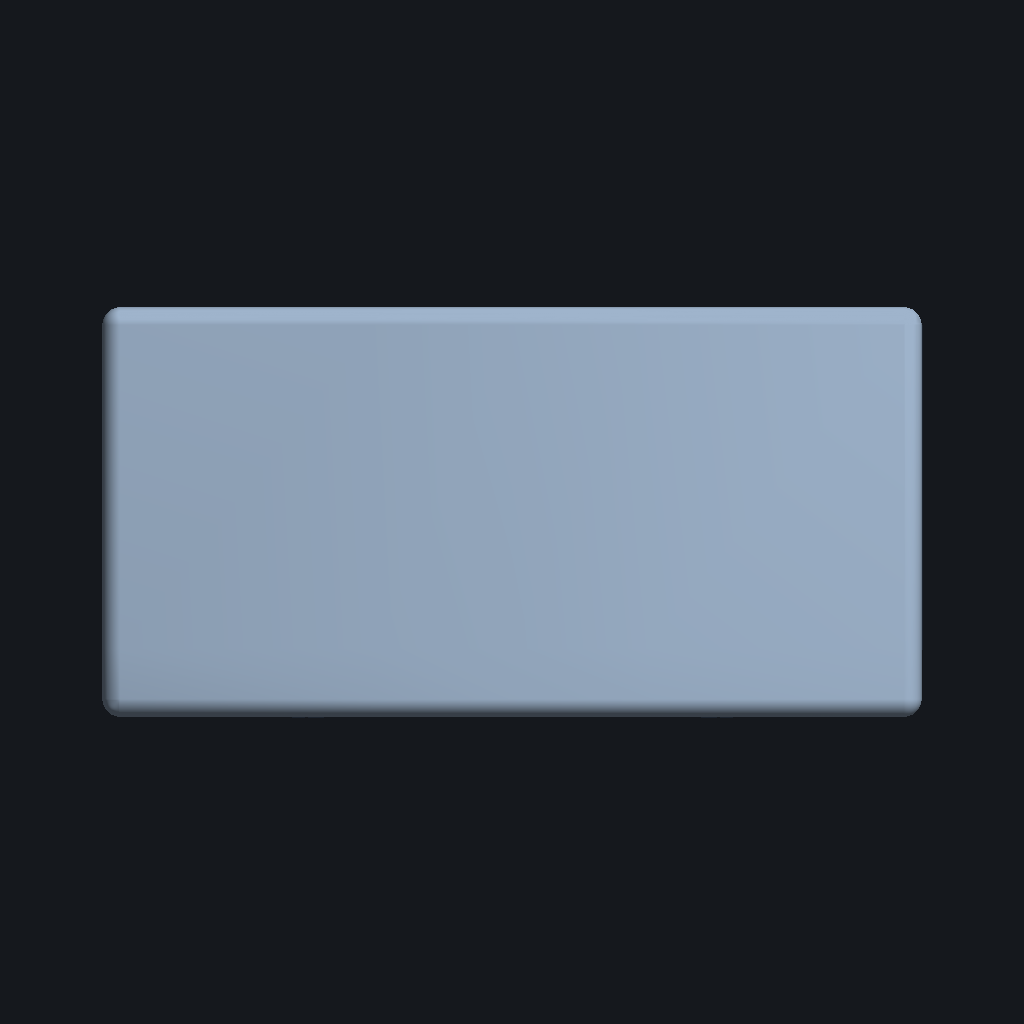

right

91of 100

built: 85
geometry: 91
AI judge: 7 of 7

What the AI judge checked

Pass:The overall form matches the reference: the same kind of object, the same silhouette from the matching angle, allowing for the requested change: the holder scaled up ten times to real size, otherwise unchanged, with two through-holes added in the floor of the channel
- Opus 5.5: pass: The result renders show the same U-channel holder with bowed walls and identical silhouettes from every matching view, now with two holes.
- GPT-6 Sol: pass: The result has the same bowed, rounded holder silhouette and open channel as the reference, with two floor holes added.
Pass:Proportions match: the relative sizes of the major dimensions agree with the reference within what the eye can judge, allowing for the requested change: the holder scaled up ten times to real size, otherwise unchanged, with two through-holes added in the floor of the channel
- Opus 5.5: pass: The end, top and side views match the reference proportions exactly, with the same length-to-height and width ratios.
- GPT-6 Sol: pass: The length, wall height, channel width, and end profiles have the same visible proportions as the reference.
Pass:Every major feature visible in the reference (holes, slots, bosses, tabs, lips) is present in the result, allowing for the requested change: the holder scaled up ten times to real size, otherwise unchanged, with two through-holes added in the floor of the channel
- Opus 5.5: pass: The open channel, tapered lips, central notch on the inner walls, rounded edges and bowed faces are all present.
- GPT-6 Sol: pass: The open channel, rounded exterior edges, and central narrowing visible in the reference are present.
Pass:Those features sit where the reference has them, allowing for the requested change: the holder scaled up ten times to real size, otherwise unchanged, with two through-holes added in the floor of the channel
- Opus 5.5: pass: The notch sits at mid-length and the channel and lips are in the same positions as in the reference top and end views.
- GPT-6 Sol: pass: The channel and its central narrowing occupy the same positions relative to the holder’s ends as in the reference.
Pass:Nothing is present that the reference does not show — no decorative or unexplained geometry, allowing for the requested change: the holder scaled up ten times to real size, otherwise unchanged, with two through-holes added in the floor of the channel
- Opus 5.5: pass: Apart from the two requested floor holes, no new geometry appears in any render.
- GPT-6 Sol: pass: Apart from the requested two holes, the renders show no added geometry.
Pass:The holder is the imported shape unchanged — the slightly bowed side walls and the open channel are as in the reference — apart from the two holes
- Opus 5.5: pass: The bowed side walls, faceted outline and open channel are identical to the reference in the side, top and isometric views.
- GPT-6 Sol: pass: The slightly bowed side walls and open channel appear unchanged apart from the holes.
Pass:Two round holes go through the floor of the channel on its centreline, one near each end, and nothing else was cut
- Opus 5.5: pass: The top and bottom views show two round holes on the channel centreline about a quarter of the length in from each end, passing through the floor; nothing else was cut.
- GPT-6 Sol: pass: The top and underside views show two round through-holes on the channel-floor centreline, roughly one quarter of the length in from each end.

Measured

✓ watertight: true == true
✓ one sub-part named holder: ok
✓ the imported holder is still declared as an import: ok
✓ the mesh was scaled to real size: ok
✓ the holder's own volume survives: ok
✓ nothing solid was added inside the holder's own footprint: ok
✓ the +Y hole clears 4.5 mm through the floor: ok
✓ the -Y hole clears 4.5 mm through the floor: ok
✓ the floor is still there around the +Y hole: ok
✓ the floor is still there around the -Y hole: ok
✗ measured the mesh with the oracle: predicate returned false
