Drawer divider

Opus 5.5, effort high$0.1434s34s waiting on the model2 builds, 1 failed

96of 100

What the AI judge checked

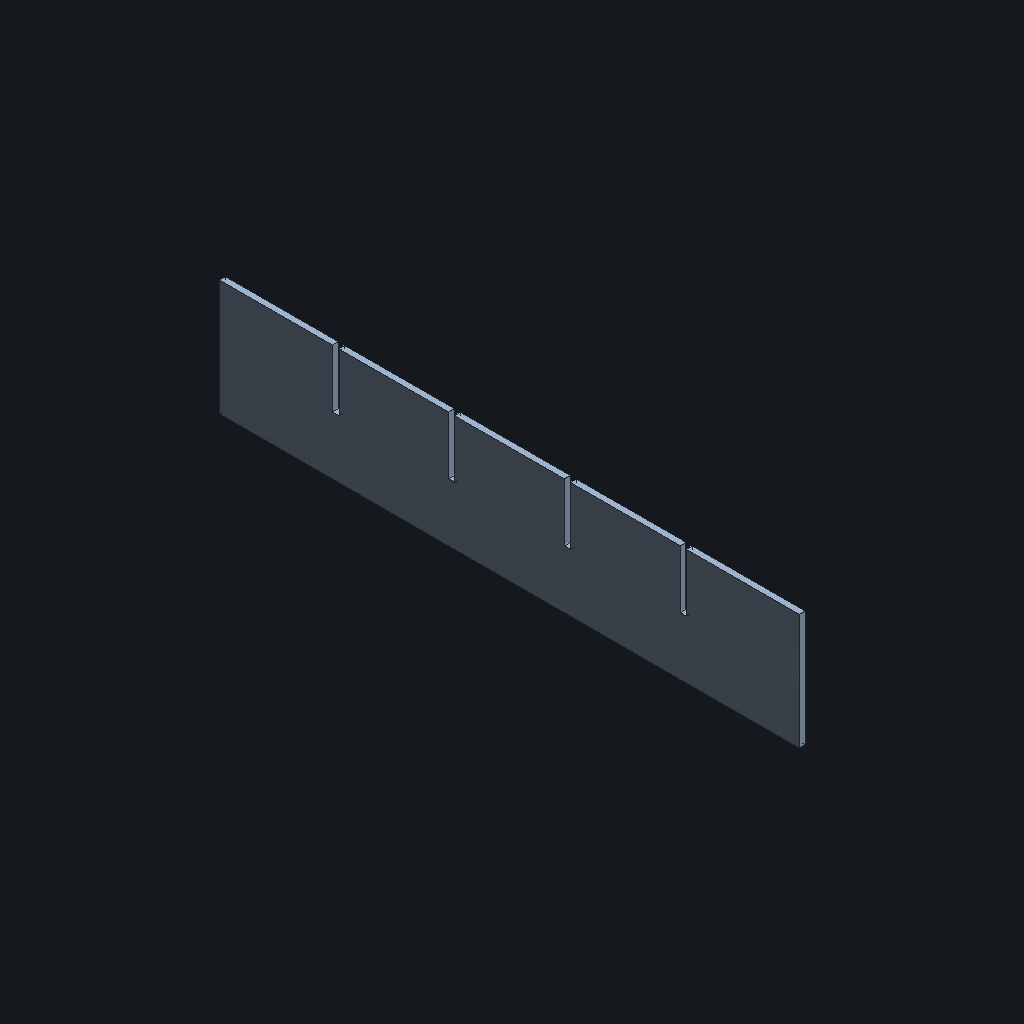

Pass:A long thin flat plate
- Opus 5.5: pass: The front view shows a long rectangular plate roughly 5:1 length to height, and the top and side views show it is very thin.
- GPT-6 Sol: pass: The renders show a long, thin plate with a uniform flat face.
Pass:Several narrow slots cut down from the top edge, all the same depth
- Opus 5.5: pass: Four narrow slots are cut down from the top edge, each reaching the plate's mid-height, so all share the same depth.
- GPT-6 Sol: pass: Four narrow slots extend from the top edge to the same depth.
Pass:The slots are evenly spaced with equal solid ends
- Opus 5.5: pass: In the front view the slot centres sit at about x=236, 420, 604 and 788 between plate ends at 51 and 973, giving five equal steps of about 184 px.
- GPT-6 Sol: pass: The slot centres appear evenly spaced, with equal distances to the plate ends.
Pass:Nothing else was added to the plate
- Opus 5.5: pass: No extra features appear beyond the plate and its slots in any view.
- GPT-6 Sol: pass: No additional features or objects are visible on the plate.

Verdict: acceptable (from the ranking's acceptable line, not typed on this attempt)

✓ watertight: true == true
✓ holes: 0 == 0
✓ one sub-part named divider: ok
✓ length is exposed as 100 to 400: ok
✓ slots is exposed as 2 to 8: ok
✓ default plate is 200 x 2 x 40: ok
✓ every slot is open and evenly spaced, the ends are solid: ok
✓ each slot is 2.2 mm wide, with plate either side of it: ok
✓ each slot is 20 mm deep, with plate below it: ok
✓ sweep length=100: watertight: true == true
✓ sweep length=100: holes: 0 == 0
✓ sweep length=100: swept build is not empty: ok
✓ sweep length=100: every slot is open and evenly spaced, the ends are solid: ok
✓ sweep length=100: length tracks the control: ok
✓ sweep length=400: watertight: true == true
✓ sweep length=400: holes: 0 == 0
✓ sweep length=400: swept build is not empty: ok
✓ sweep length=400: every slot is open and evenly spaced, the ends are solid: ok
✓ sweep length=400: length tracks the control: ok
✓ sweep slots=2: watertight: true == true
✓ sweep slots=2: holes: 0 == 0
✓ sweep slots=2: swept build is not empty: ok
✓ sweep slots=2: every slot is open and evenly spaced, the ends are solid: ok
✓ sweep slots=5: watertight: true == true
✓ sweep slots=5: holes: 0 == 0
✓ sweep slots=5: swept build is not empty: ok
✓ sweep slots=5: every slot is open and evenly spaced, the ends are solid: ok
✓ sweep slots=8: watertight: true == true
✓ sweep slots=8: holes: 0 == 0
✓ sweep slots=8: swept build is not empty: ok
✓ sweep slots=8: every slot is open and evenly spaced, the ends are solid: ok
