608 bearing seat

GPT-6 Sol, effort high$0.0740s36s waiting on the model1 build

100of 100

What the AI judge checked

Pass:A square plate of uniform outer thickness
- Opus 5.5: pass: Top view shows a square outline and all side views show an identical uniform-thickness rectangle.
- GPT-6 Sol: pass: The top and side renders show a square plate with uniform outer thickness.
Pass:A central bore with a visible wider step at the top, not a plain straight hole

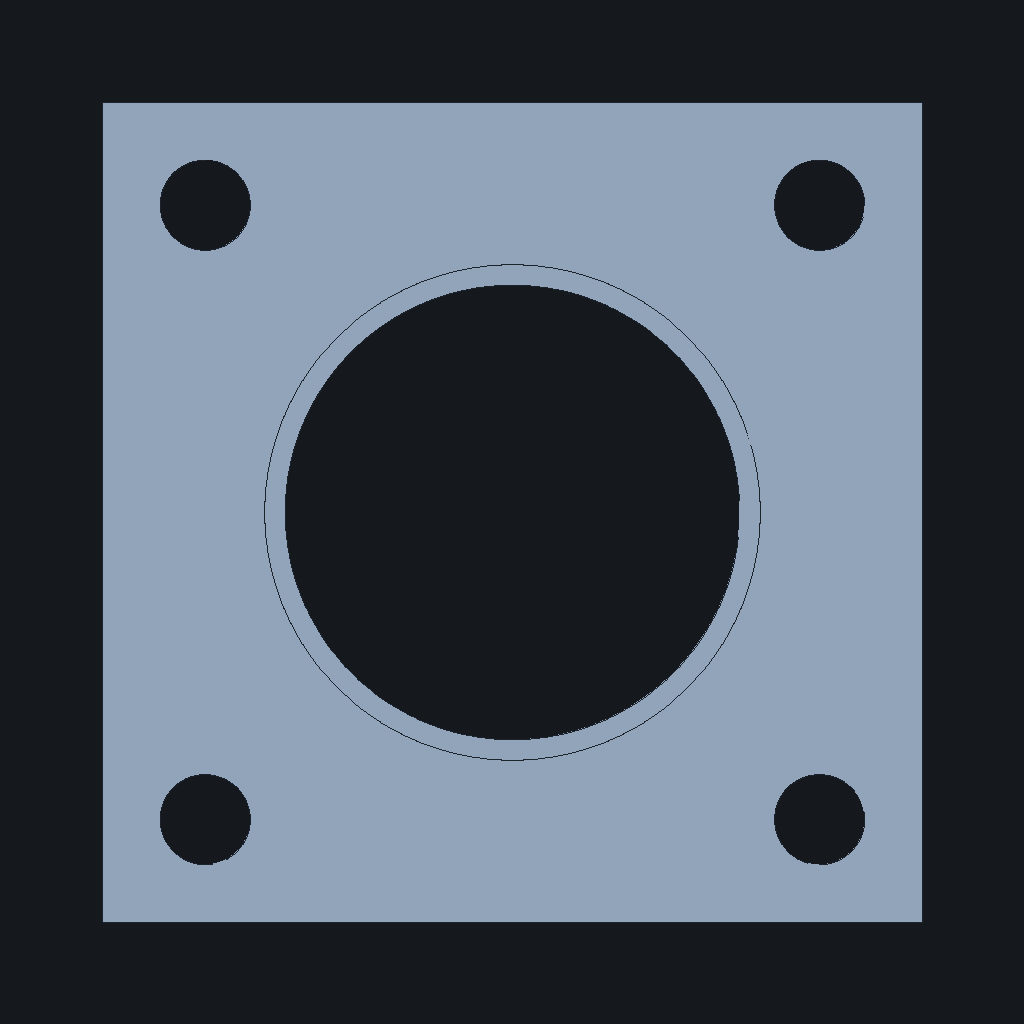

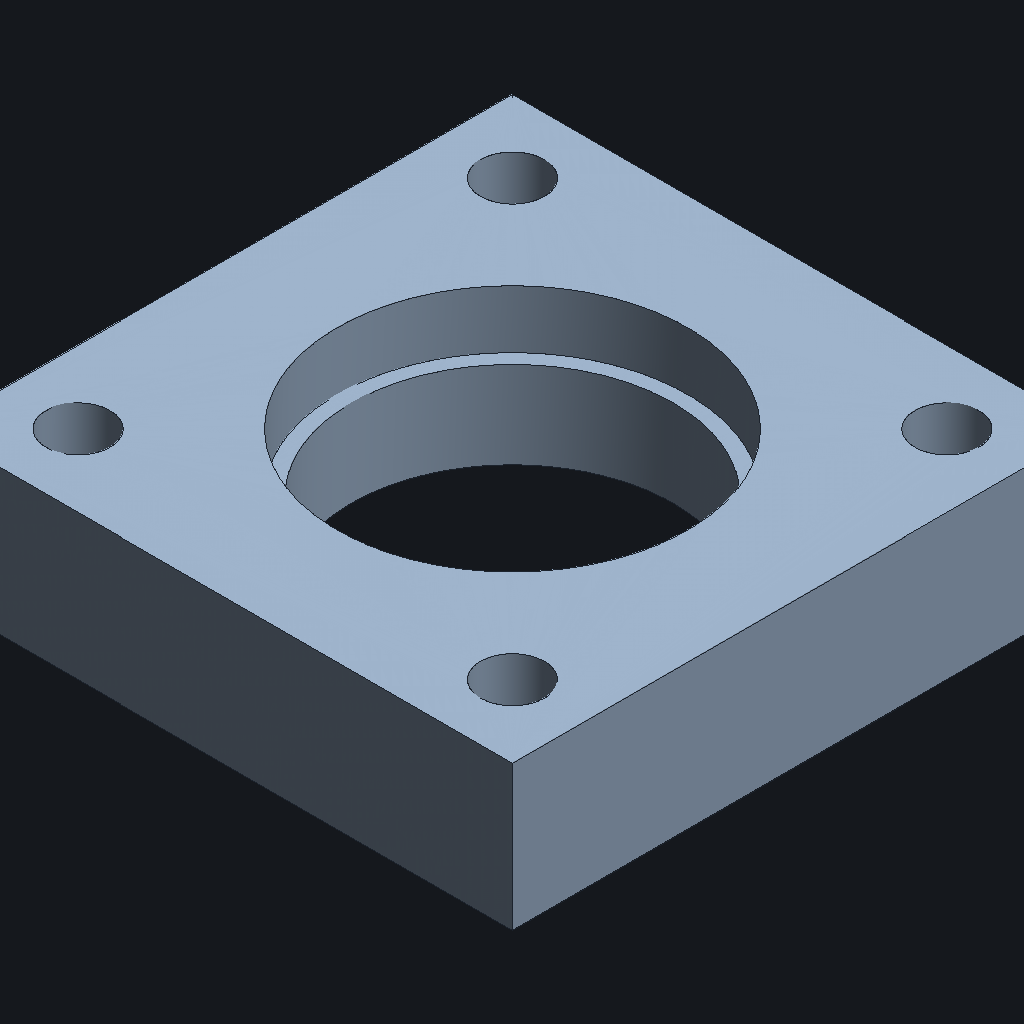

- Opus 5.5: pass: The isometric and top views show a wider counterbore ring stepping down to a narrower through bore.
- GPT-6 Sol: pass: A wider upper recess and a distinct annular step are visible around the central bore.
Pass:Four small holes near the corners on a square pattern
- Opus 5.5: pass: Four small through-holes sit near the corners in a symmetric square pattern in the top and bottom views.
- GPT-6 Sol: pass: Four small holes are visible near the corners in a square pattern.
Pass:The central bore is open at the bottom face as well as the top

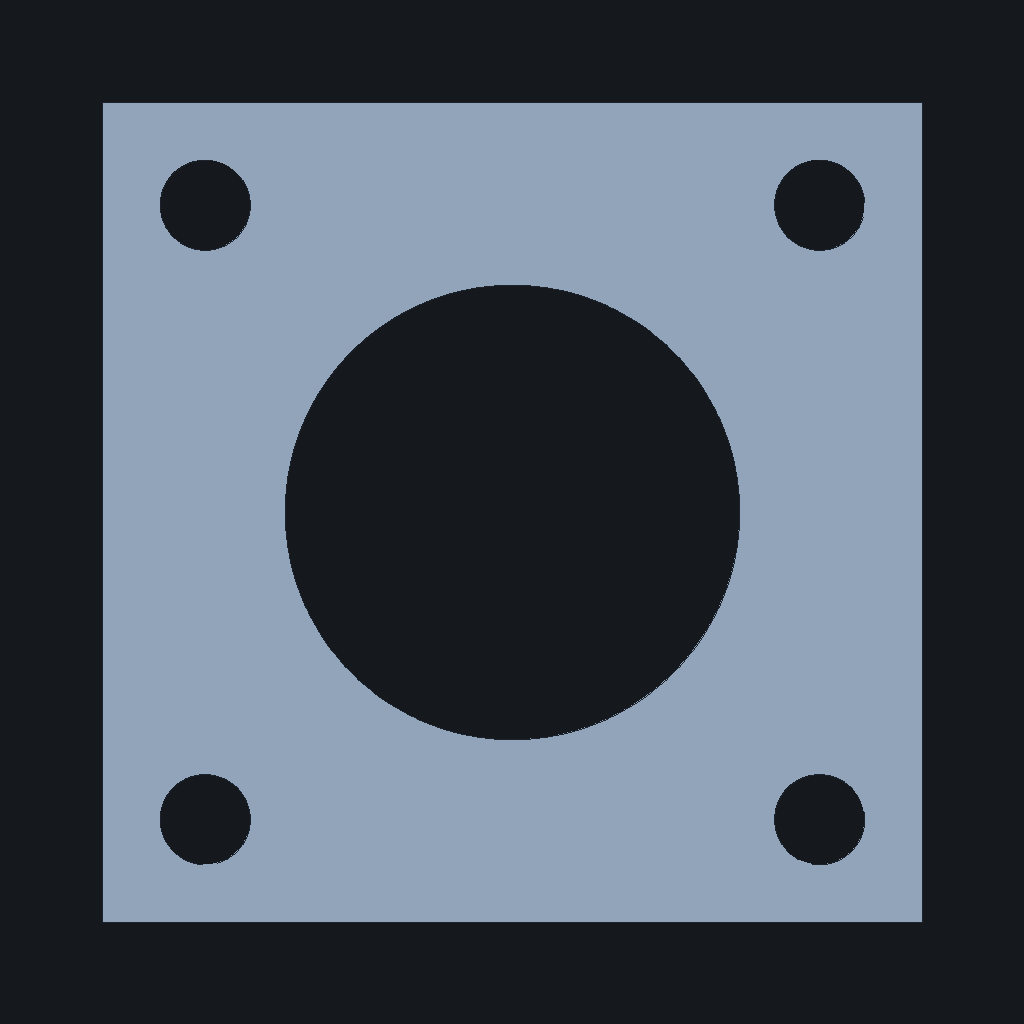

- Opus 5.5: pass: The bottom view shows the central bore open, with background visible through it.
- GPT-6 Sol: pass: The bottom render shows the central bore opening through the underside.
Pass:Nothing added beyond the stepped bore and the four holes
- Opus 5.5: pass: No features beyond the stepped bore and four holes appear in any view.
- GPT-6 Sol: pass: The renders show only the square plate, stepped central bore, and four corner holes.
