Photo resistor

Gemini 3.8 Flash$0.262m 17s2m 15s waiting on the model4 builds

Reference
iso
front
back
top
bottom
left
right

74of 100

built: 100
geometry: 60
AI judge: 5 of 7

What the AI judge checked

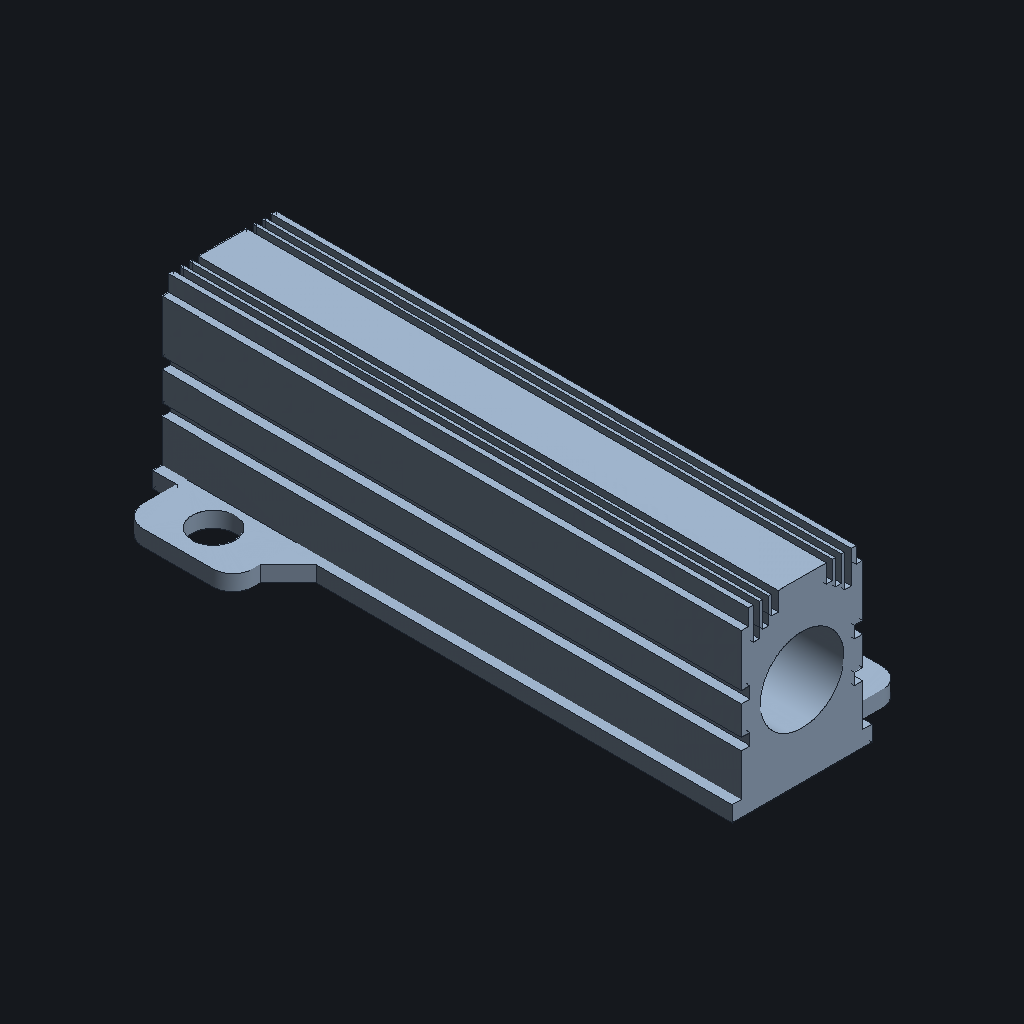

Pass:The overall form matches the reference: the same kind of object, the same silhouette from the matching angle
- Opus 4.8: pass: The finned aluminium housing with mounting flanges matches the reference resistor body silhouette.
- GPT-5.6 Sol: pass: The renders show the same elongated rectangular finned housing with diagonally opposed mounting flanges as the reference.
Fail:Proportions match: the relative sizes of the major dimensions agree with the reference within what the eye can judgeAI judges disagreed
- Opus 4.8: pass: The elongated body with short flanges at opposite ends matches the reference proportions well.
- GPT-5.6 Sol: fail: The rendered body appears noticeably longer and narrower relative to its width, with comparatively large flange tabs, versus the reference.
Pass:Every major feature visible in the reference (holes, slots, bosses, tabs, lips) is present in the result
- Opus 4.8: pass: Both mounting flanges with holes and the side fin grooves are present as in the reference.
- GPT-5.6 Sol: pass: The major visible housing features—longitudinal fins, two mounting flanges, and two circular mounting holes—are all present.
Pass:Those features sit where the reference has them
- Opus 4.8: pass: The two flanges sit diagonally at opposite ends matching the reference layout.
- GPT-5.6 Sol: pass: The mounting flanges and holes are positioned at opposite diagonal corners as in the reference.
Fail:Nothing is present that the reference does not show — no decorative or unexplained geometry
- Opus 4.8: fail: The end view shows a large central bore hole through the body that the reference does not display.
- GPT-5.6 Sol: fail: A large circular axial bore is modeled through the body ends, which is not shown in the reference.
Pass:A rectangular finned extrusion with a flat base, grooved along both long sides — not a cylinder or a plain block
- Opus 4.8: pass: The renders show a rectangular finned extrusion with a flat base and grooves along both long sides.
- GPT-5.6 Sol: pass: The part is clearly a rectangular extrusion with a flat base and multiple longitudinal grooves and fins along both long sides.
Pass:No wires, lugs or terminals modelled at either end
- Opus 4.8: pass: No wires, lugs or terminals are modelled at either end.
- GPT-5.6 Sol: pass: No wires, solder lugs, or terminals are modeled at either end.

Measured

✓ watertight: ok
✓ one sub-part named housing: ok
✓ length is 50 mm: ok
✗ width over the flanges: predicate returned false
✓ height is 15.39 mm: ok
✗ two through-holes: predicate returned false
✗ the -X flange hole clears 3.7 mm: predicate returned false
✓ the -X flange is there around its hole: ok
✓ the -X flange is on one side only: ok
✗ the -X hole is 3.7 mm, not a slot: predicate returned false
✗ the +X flange hole clears 3.7 mm: predicate returned false
✓ the +X flange is there around its hole: ok
✓ the +X flange is on one side only: ok
✗ the +X hole is 3.7 mm, not a slot: predicate returned false
✓ the leads were not modelled: ok
