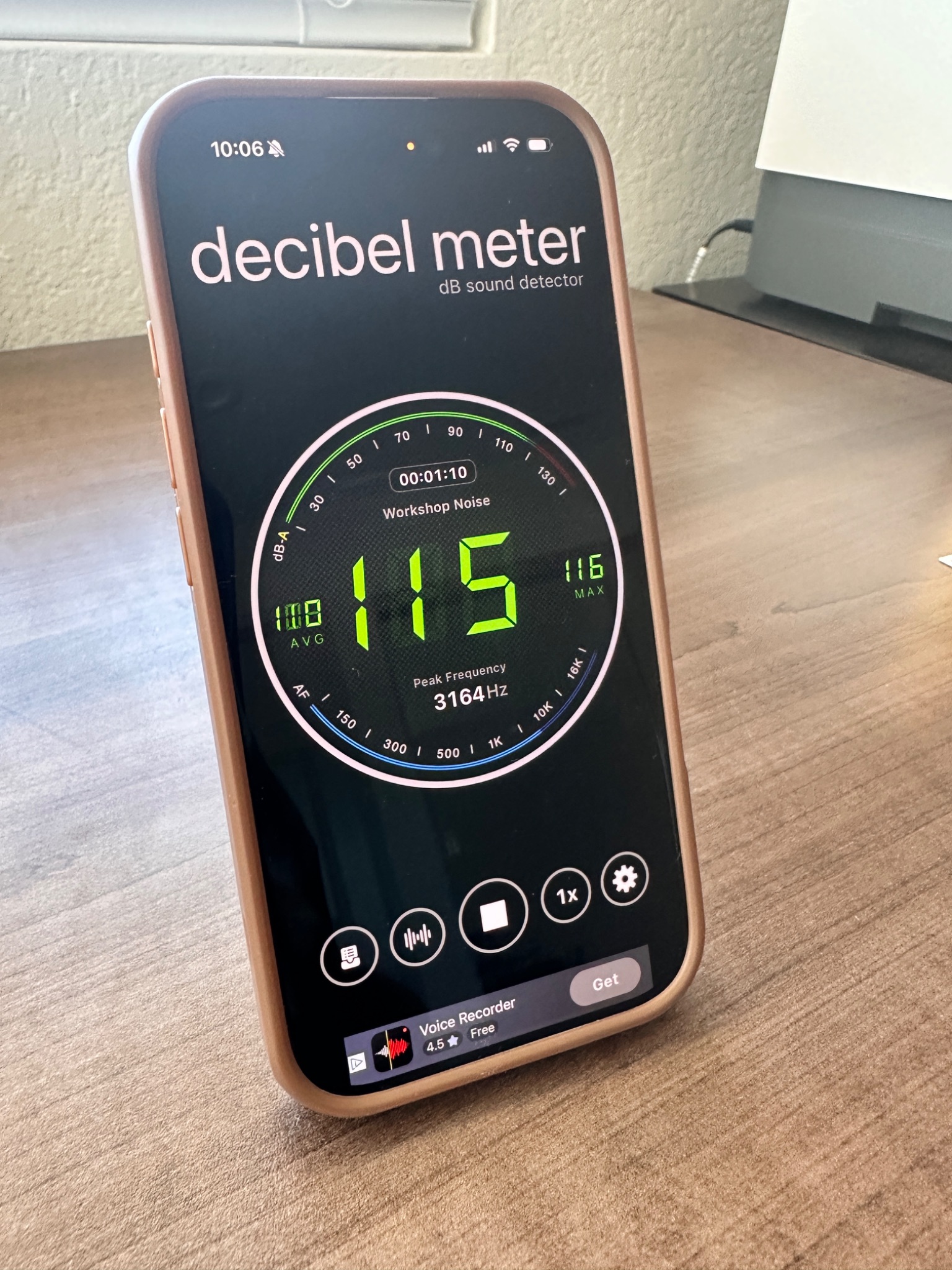

Print-in-place whistle (over 110dB)

E

by eugene · published

clone this forge

git clone https://www.partforge.ai/git/p-51d6c3466454.git

This clones the published version. Sign in as the owner to clone your latest work.

embed this forge

<iframe src="https://www.partforge.ai/parts/print-in-place-whistle-over-110db--51d6c3466454/embed" width="560" height="484" style="border:0;max-width:100%" loading="lazy" title="Print-in-place whistle (over 110dB) on PartForge"></iframe>

Paste it into your page. Readers can spin and zoom the forge, and Customize opens it on PartForge.

Print-in-place whistle (over 110dB)1 / 3

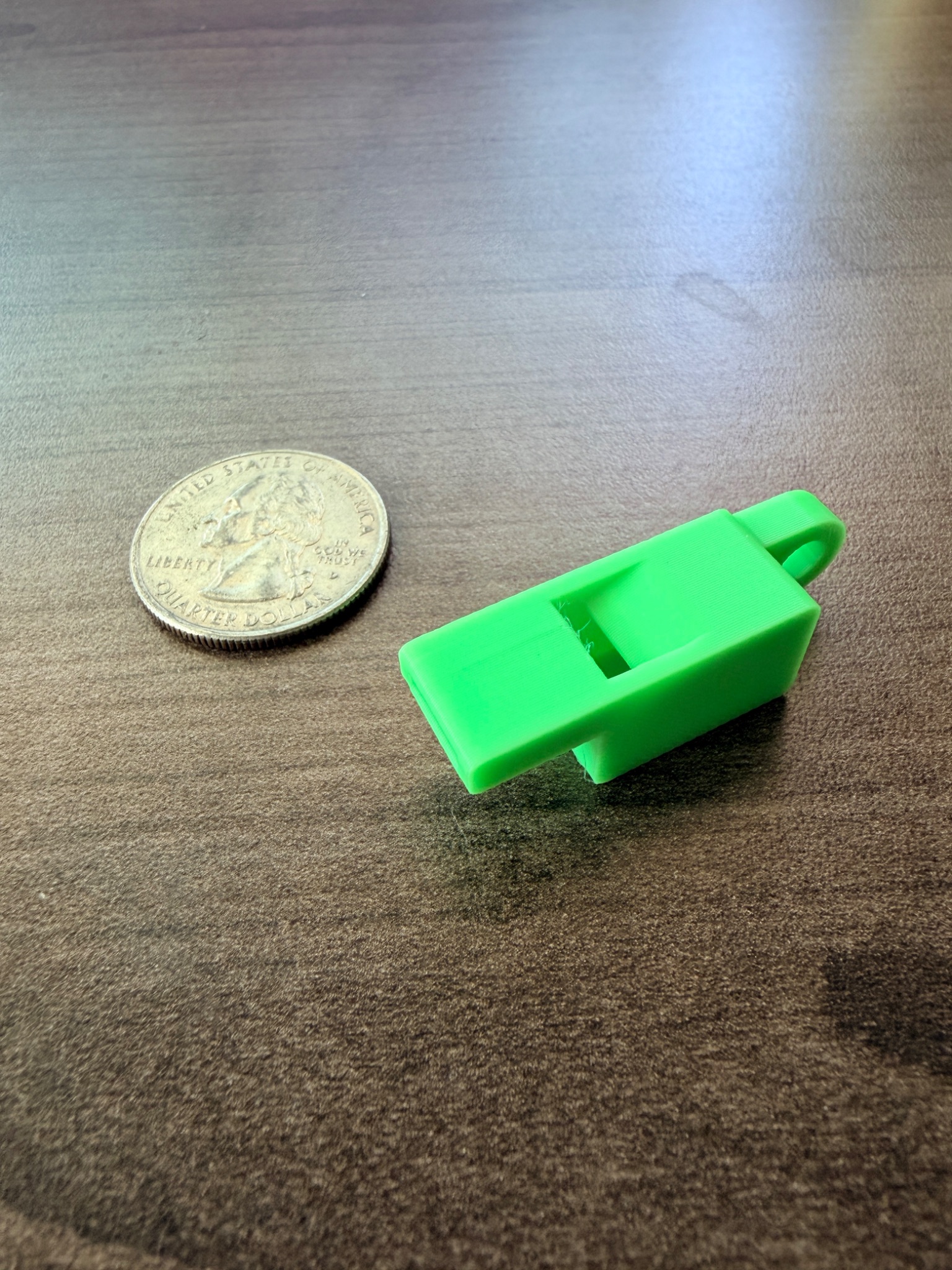

A loud little safety whistle that prints in one piece and works straight off the bed, with a loop for your keys or a lanyard. Air from the mouthpiece runs through a thin flat slot and splits on a sharp edge over a closed chamber, the same way a referee's pealess whistle sings. Make the chamber bigger for a lower note or smaller for a shriller one, with a pitch estimate as you go, and fine-tune the slot, window and edge if yours is breathy. It prints on its side with no supports.

Customize in 3D

Adjust its settings live, then export STL, 3MF or STEP. No account needed.

Likes0Comments0Downloads1

Designed by eugene in PartForge, parametric CAD with an AI collaborator.

License

Public domain dedication

You can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
