Pivoting Mini-Spotlight Housing

J

by johnnyrokkit · published

clone this forge

git clone https://www.partforge.ai/git/p-f703ca94245c.git

This clones the published version. Sign in as the owner to clone your latest work.

embed this forge

<iframe src="https://www.partforge.ai/parts/pivoting-mini-spotlight-housing--f703ca94245c/embed" width="560" height="484" style="border:0;max-width:100%" loading="lazy" title="Pivoting Mini-Spotlight Housing on PartForge"></iframe>

Paste it into your page. Readers can spin and zoom the forge, and Customize opens it on PartForge.

Pivoting Mini-Spotlight Housing1 / 3

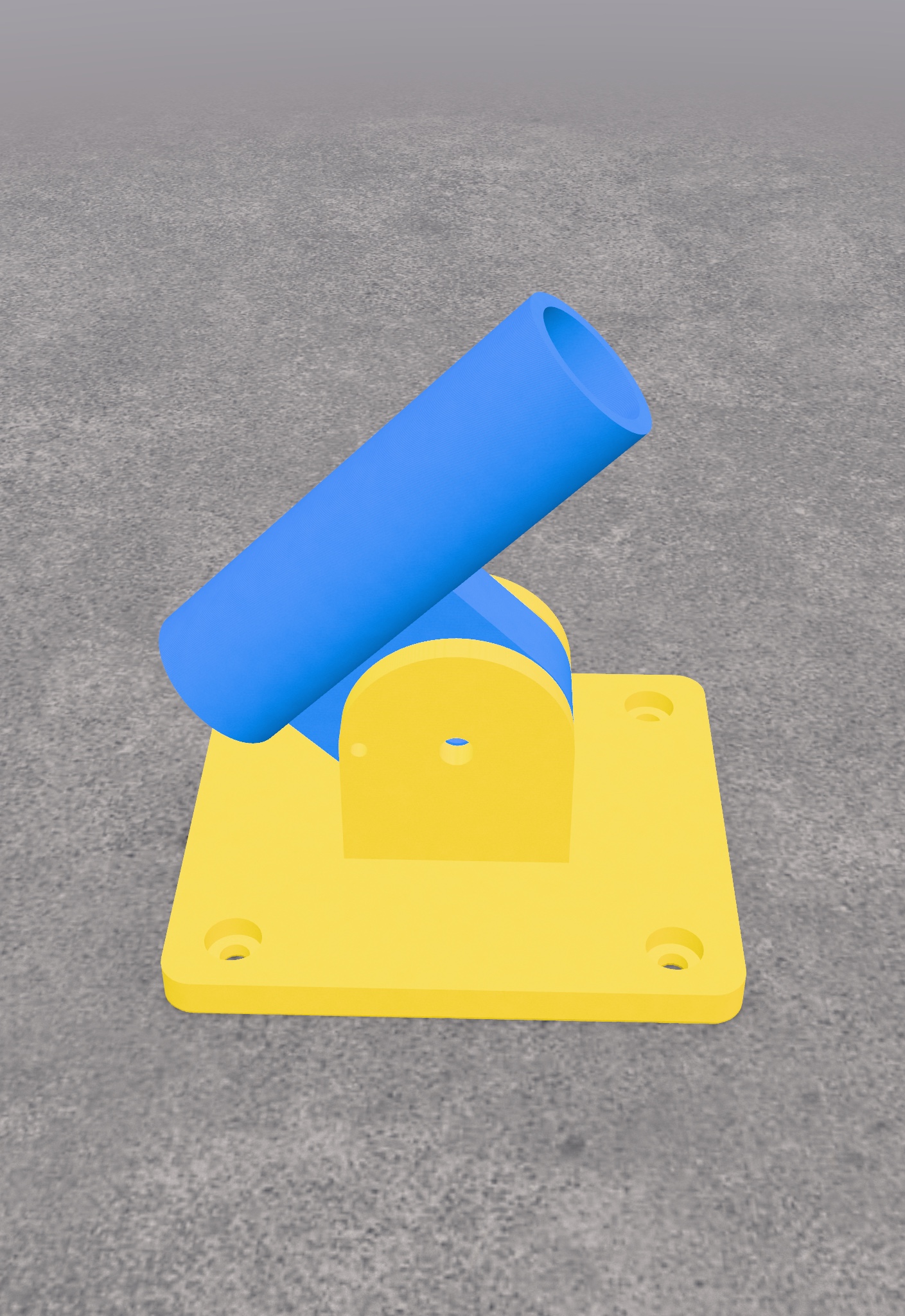

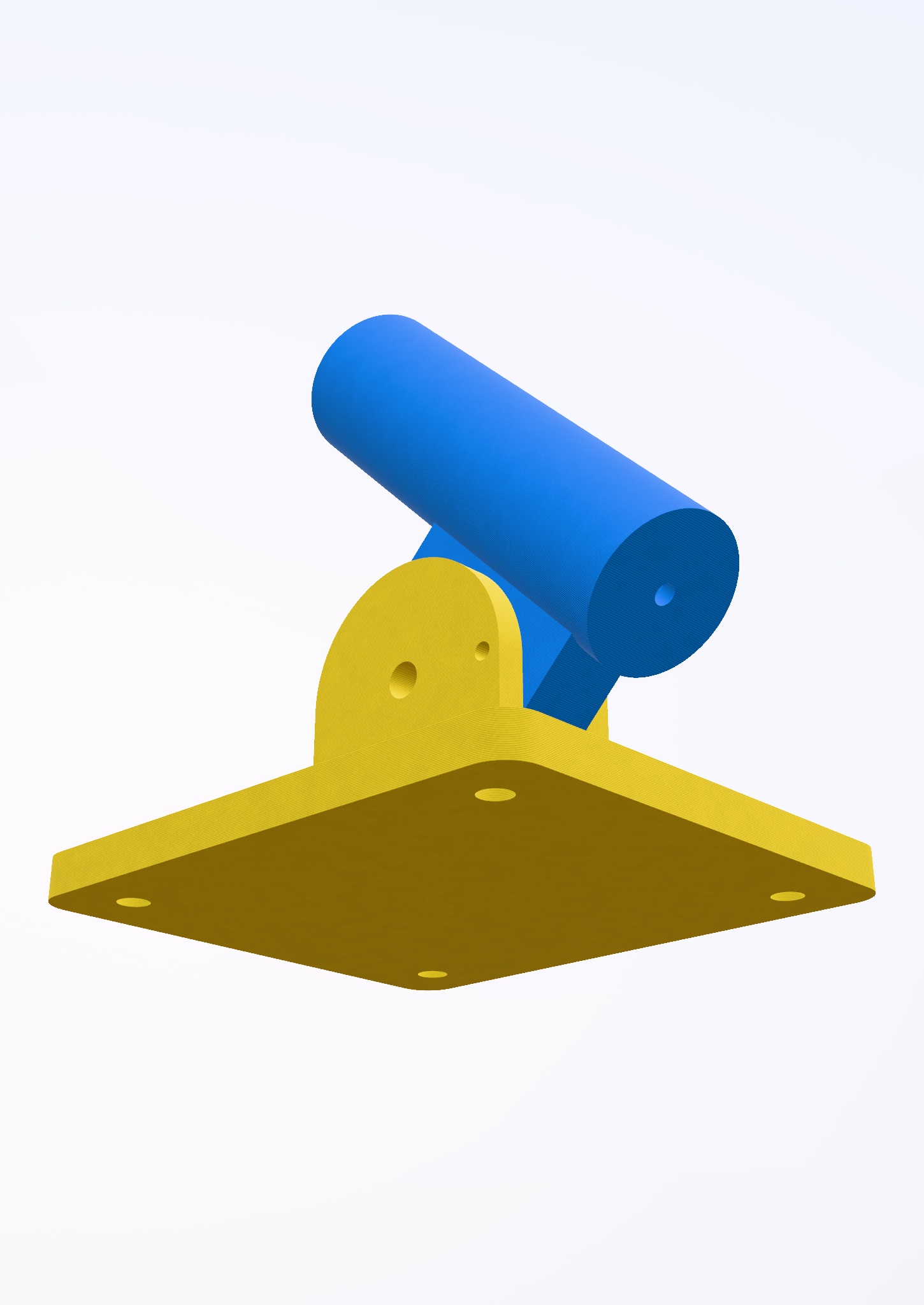

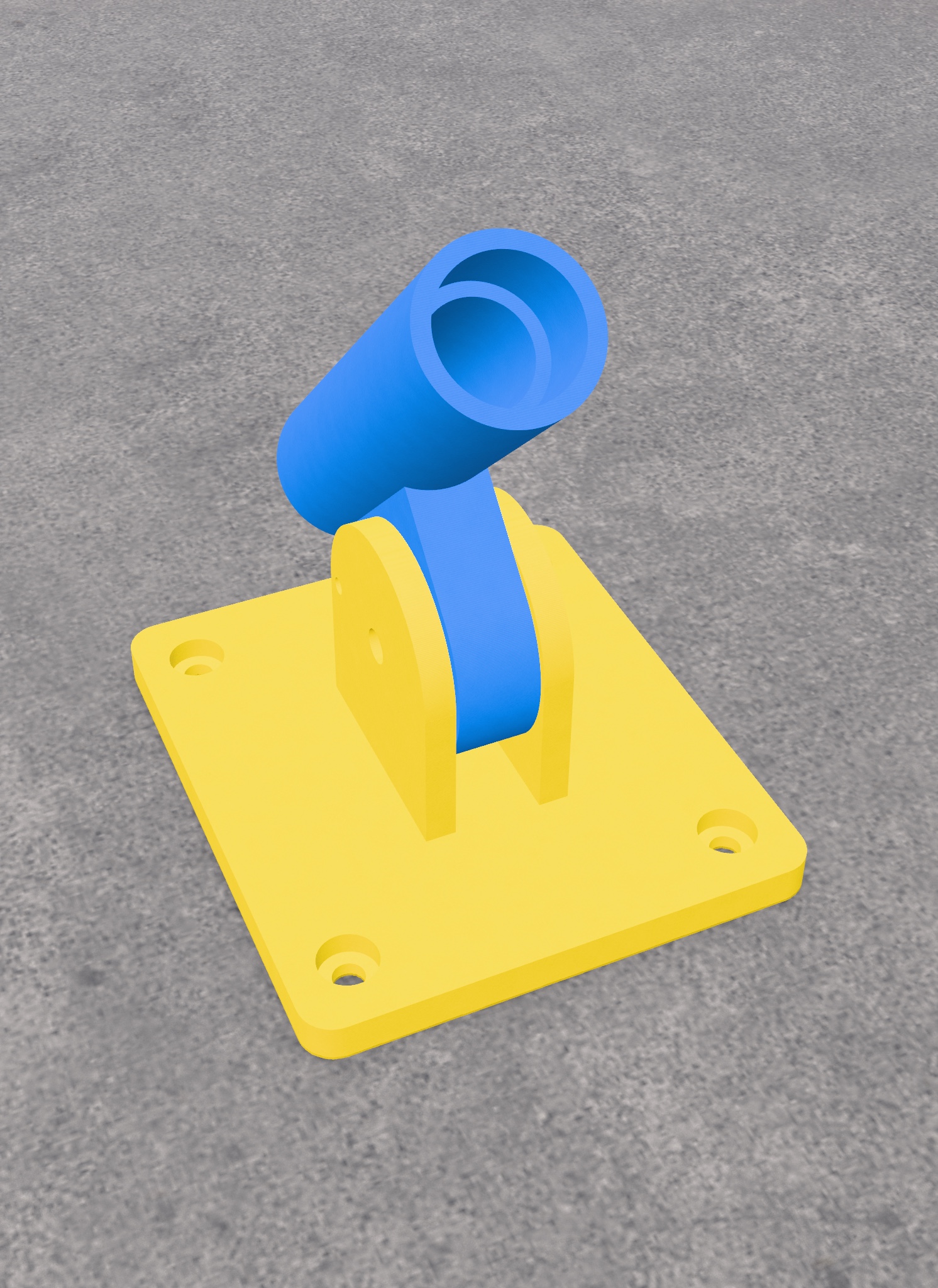

A material-efficient, compact adjustable pivot tube mount. Features a 3/4" ID, 3" long tube holder with an integrated low-profile pivot knuckle and 15° indexing holes (-30° to +90°), plus a consolidated mounting baseplate with slender upright cheeks and counterbored bench-mounting holes. Using as mini spotlight with automotive 3/4” LED light assembly.

Customize in 3D

Adjust its settings live, then export STL, 3MF or STEP. No account needed.

Likes1Comments0Downloads1

Designed by johnnyrokkit in PartForge, parametric CAD with an AI collaborator.

License

Public domain dedication

You can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
