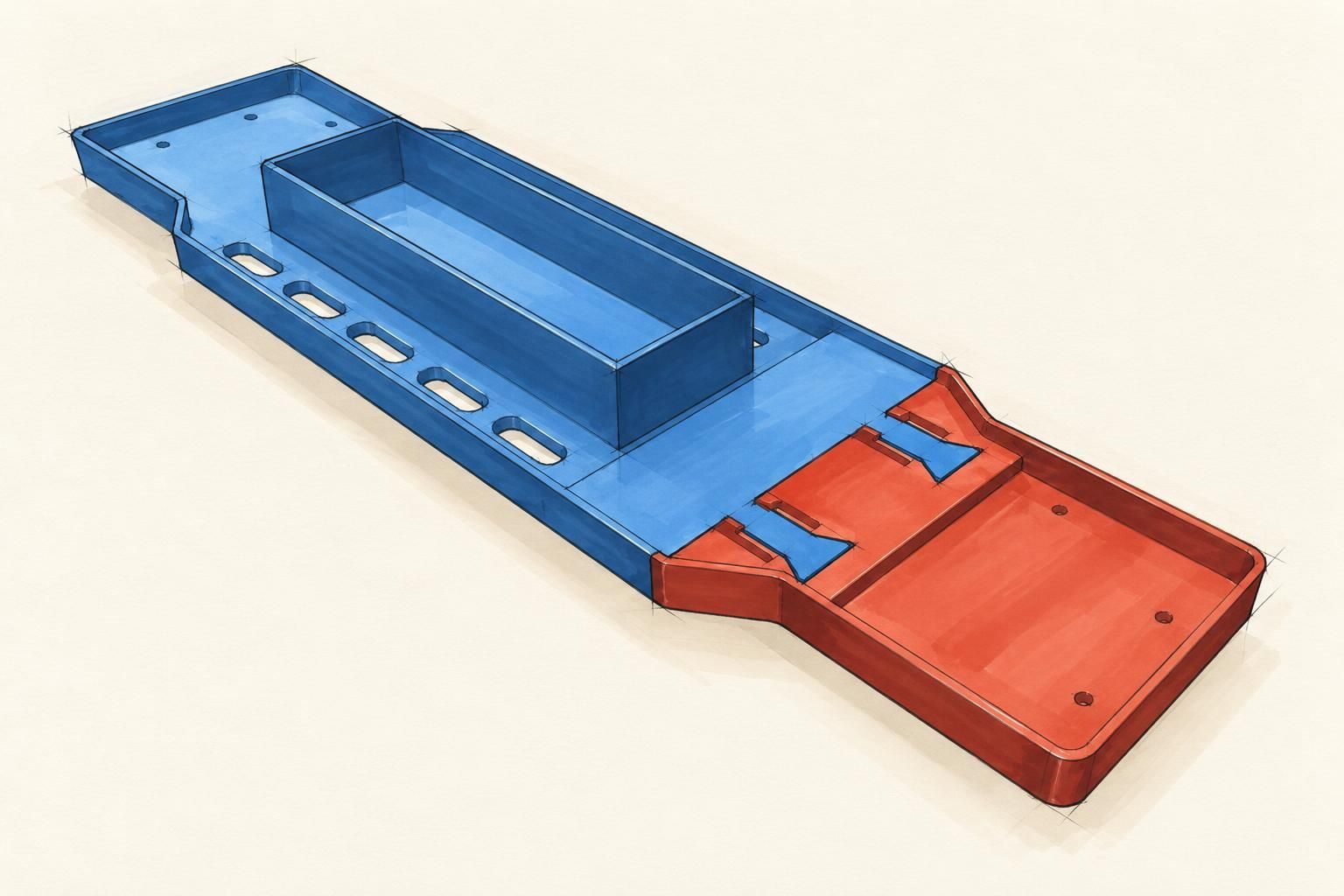

An extended chassis tub for a Traxxas Stampede 1/10 monster truck, split into two printable halves that clip together without screws or glue. The tub tapers from a narrow rear transmission section (~84 mm wide) through a wide centre with a 164 × 46 mm battery compartment to a narrower front. Two dovetail tongues with snap barbs lock the halves together vertically and horizontally. Adjustable parameters control the extension length (0–250 mm), section lengths and widths, floor thickness, rail height, joint clearance, and battery compartment dimensions.
Designed by JOHNNY in PartForge, parametric CAD with an AI collaborator. Open it to view in 3D or export STL, 3MF or STEP.
License
Public domain dedicationYou can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
