Matched Elliptical Spur Gear Set
by Scott · published
0likes0comments0downloads
clone this forge
git clone https://www.partforge.ai/git/p-3e4a04e6b3c6.gitThis clones the published version. Sign in as the owner to clone your latest work.

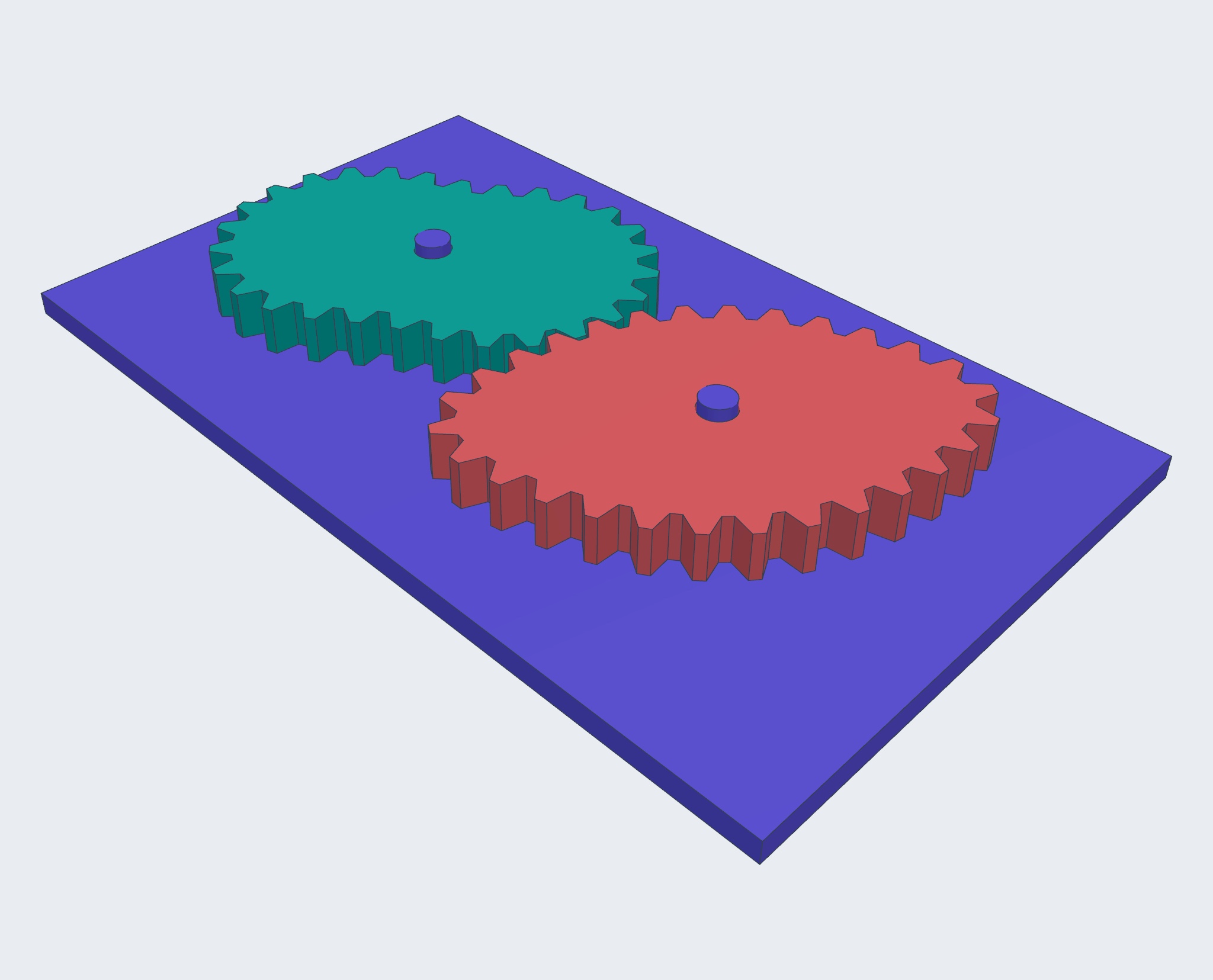

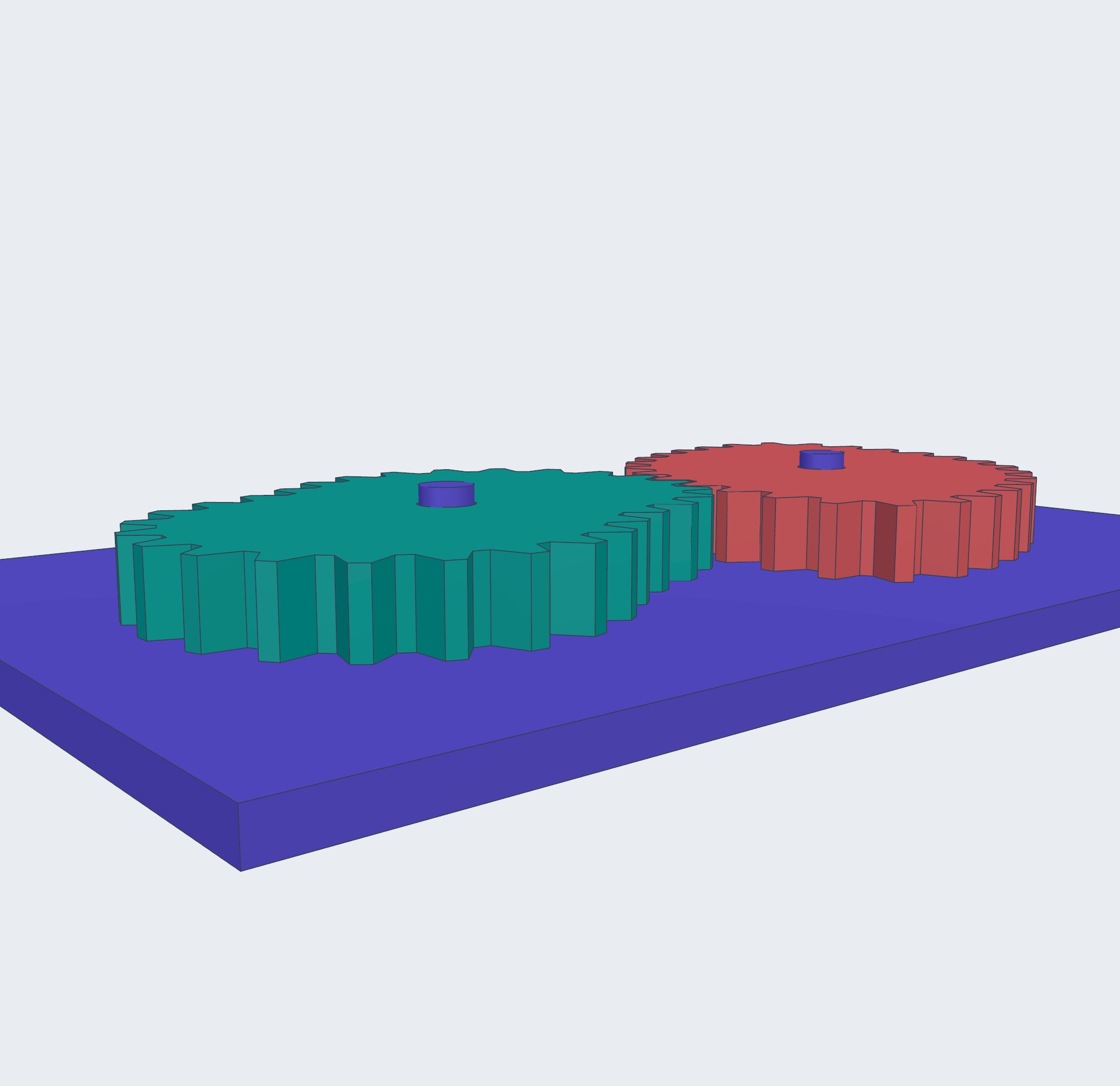

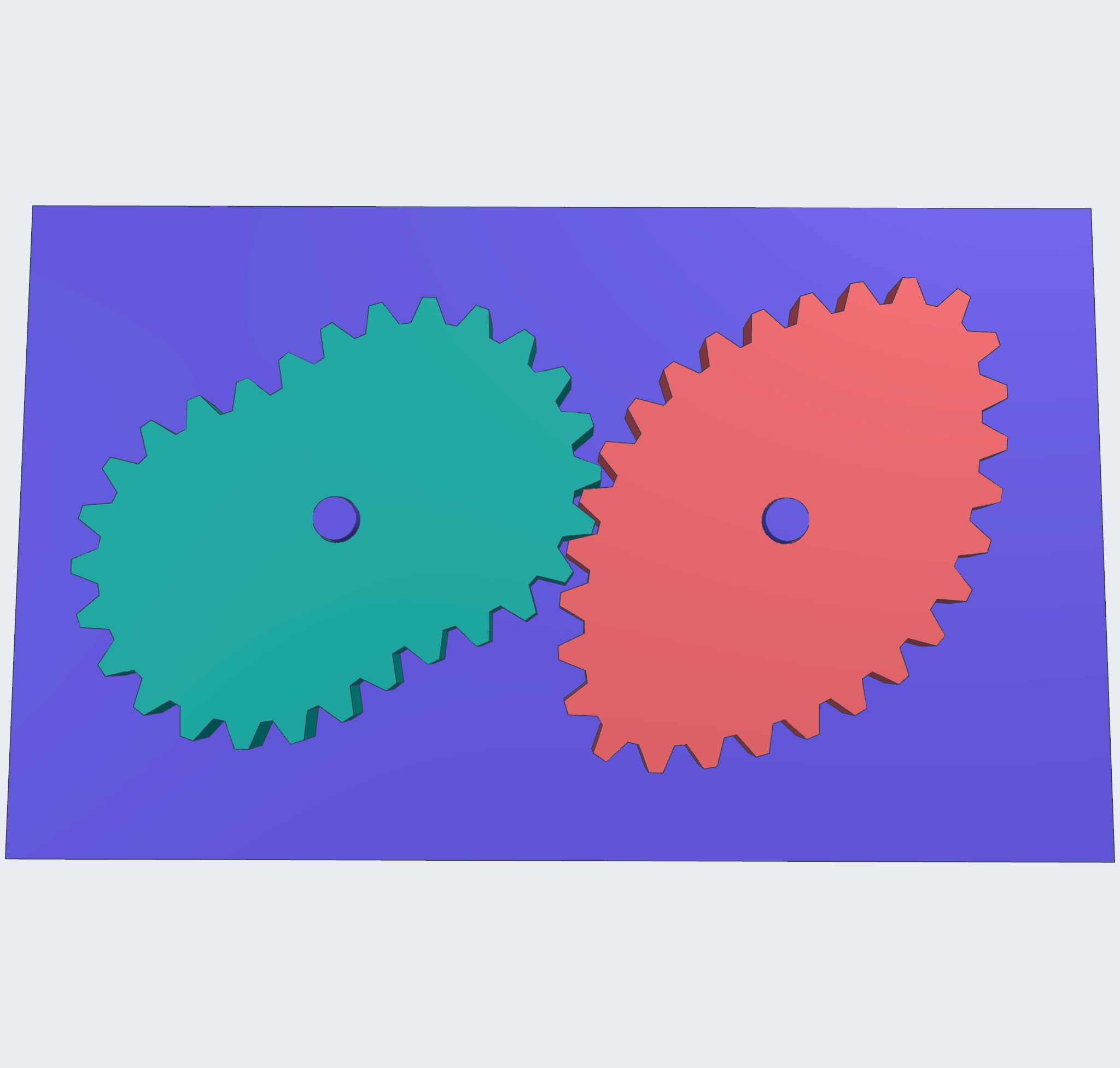

A colorful, printable central-pivot pair of conjugate noncircular gears on a rigid two-peg base. The pitch distance, ratio variation, tooth proportions, bores, backlash, and support dimensions are adjustable, with presets and an animated assembly showing the exact variable-speed motion.
#noncircular-gears#conjugate-gears#central-pivot#variable-speed#gear-pair#mechanism#animated#reference
