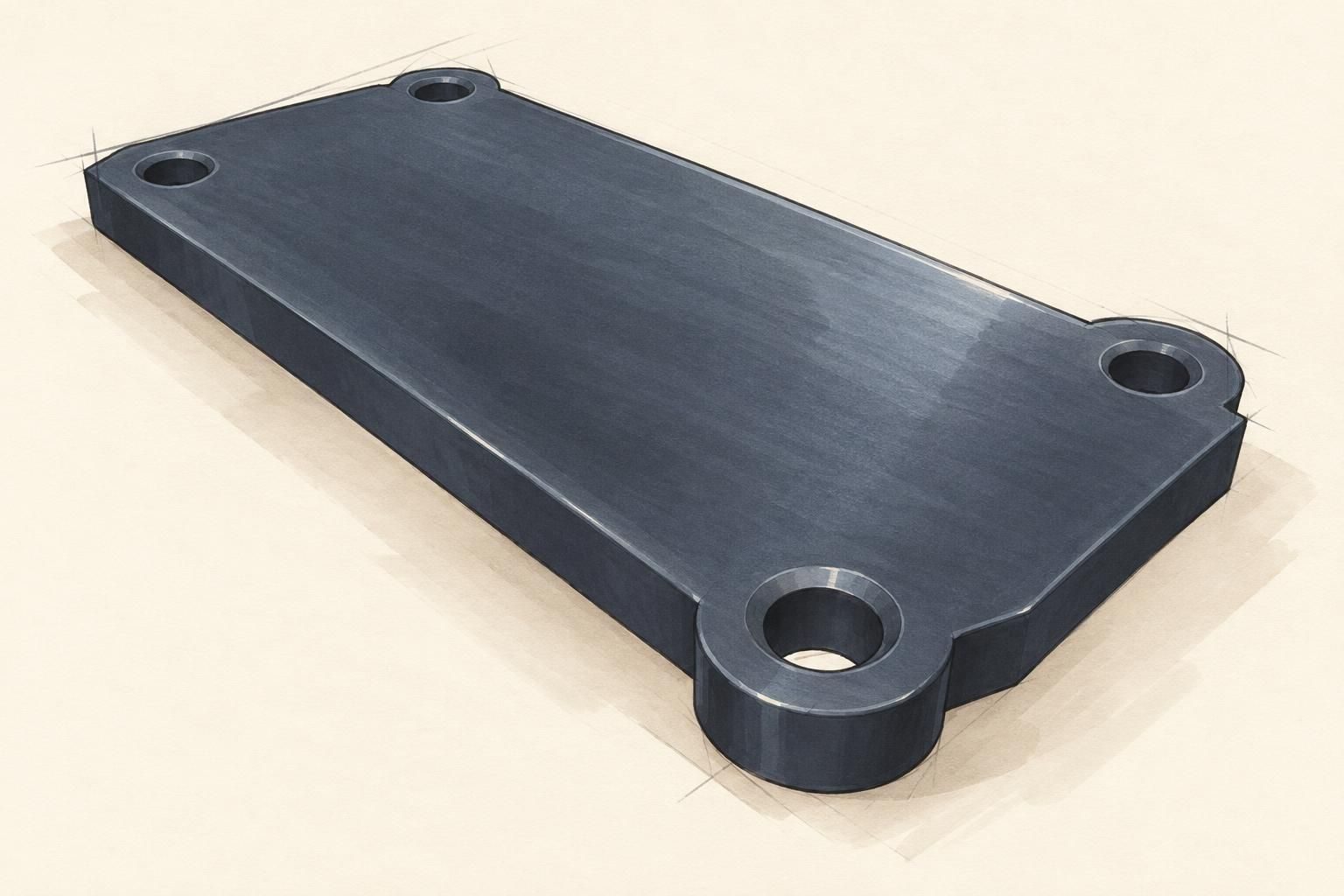

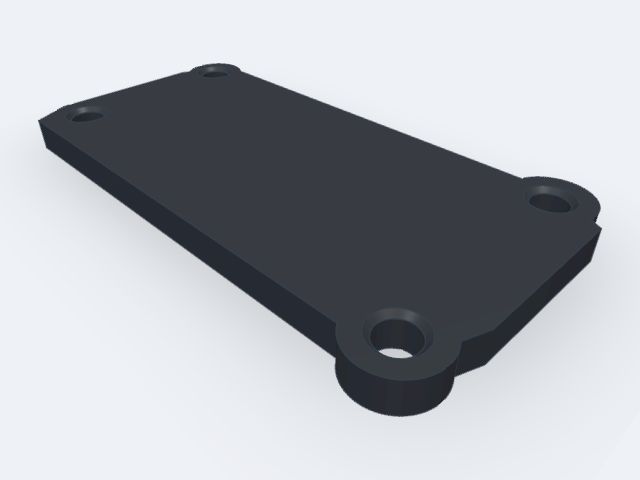

A solid 3/8 inch thick plate shaped like an engine-style gasket, with a rectangular body and four bolt-hole lobes. Handy as a blanking plate, test cover or template for the gasket it was traced from. You can change the overall length, thickness and bolt hole size, and optionally open the two coolant windows.
Designed by richardsonr1 in PartForge, parametric CAD with an AI collaborator. Open it to view in 3D or export STL, 3MF or STEP.
License
Public domain dedicationYou can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
