Fog machine 1 1/4 hose adapter with thumbscrews

T

by Tr1500 · published

clone this forge

git clone https://www.partforge.ai/git/p-63695e3479e9.git

This clones the published version. Sign in as the owner to clone your latest work.

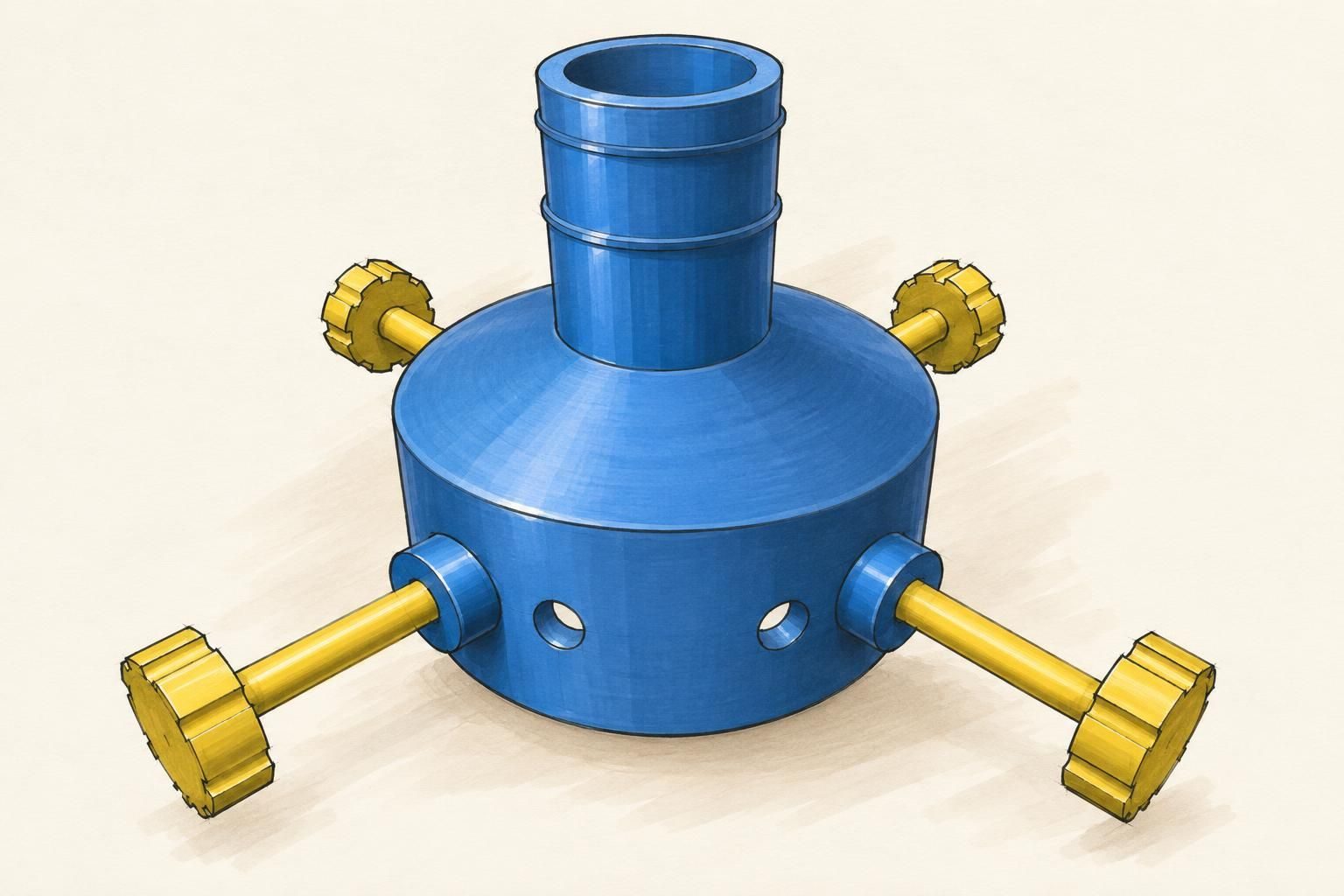

Fog machine 1 1/4 hose adapter with thumbscrews — rendered image1 / 2

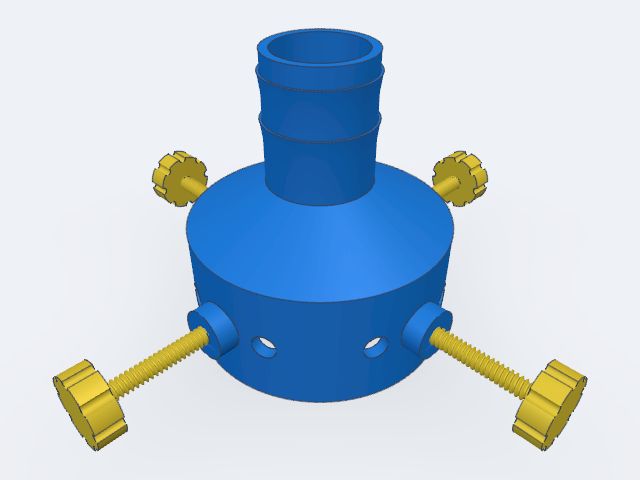

A hose adapter with a collar that tightens around a 76.2 mm nozzle using four thumbscrews, and a spigot that inserts into a 34 mm hose. The adapter features an open passage through the middle with a conical neck connecting the nozzle end to the hose end, and includes barbed ridges on the spigot for grip. Adjustable: nozzle diameter, collar wall thickness and depth, hose spigot length, passage diameter, thumbscrew dimensions (shaft diameter, head size, clamp depth), and optional ventilation holes around the collar.

Designed by Tr1500 in PartForge, parametric CAD with an AI collaborator. Open it to view in 3D or export STL, 3MF or STEP.
