9x19 mm cartridge case

T

by thus · published

clone this forge

git clone https://www.partforge.ai/git/p-918d1028cad6.git

This clones the published version. Sign in as the owner to clone your latest work.

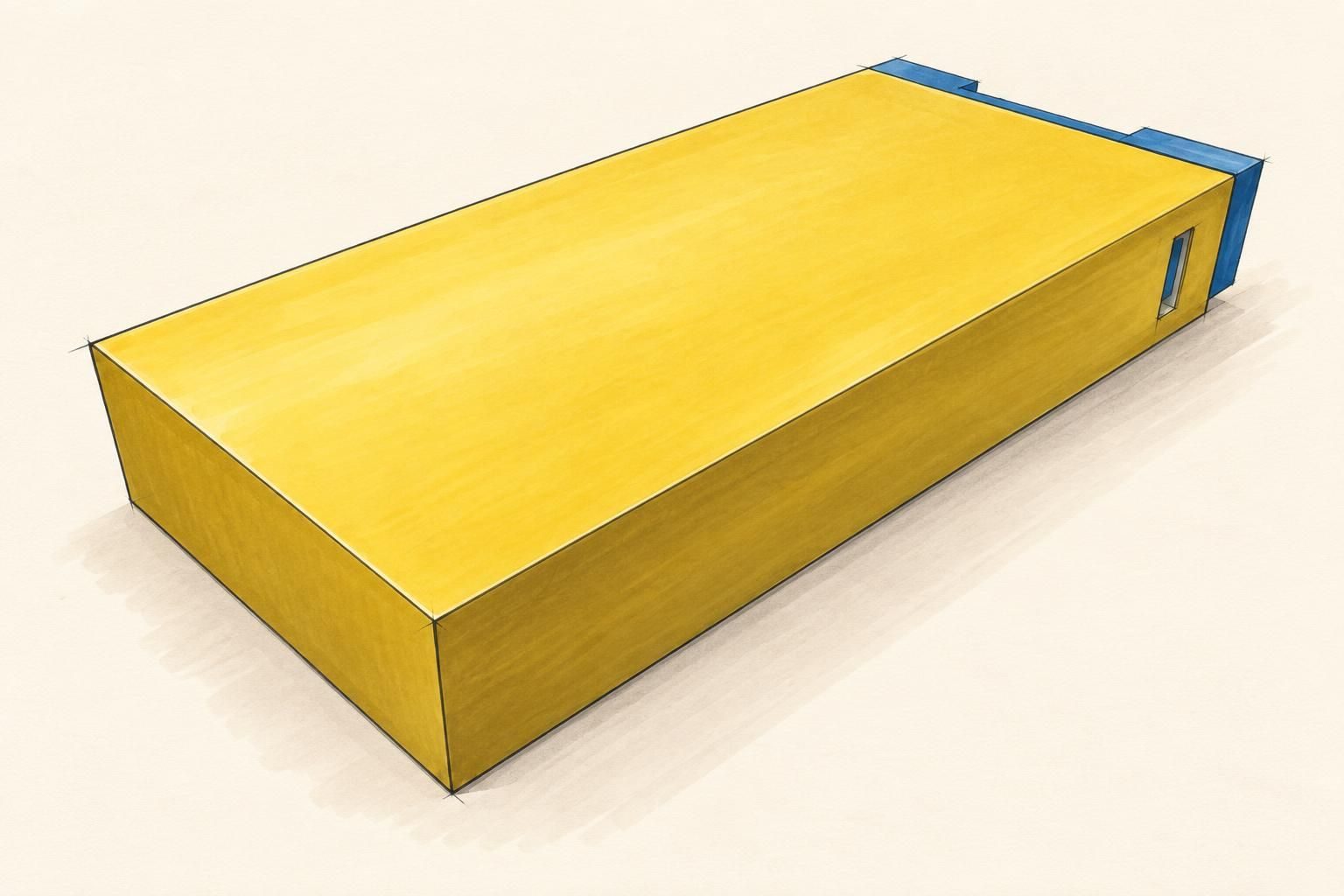

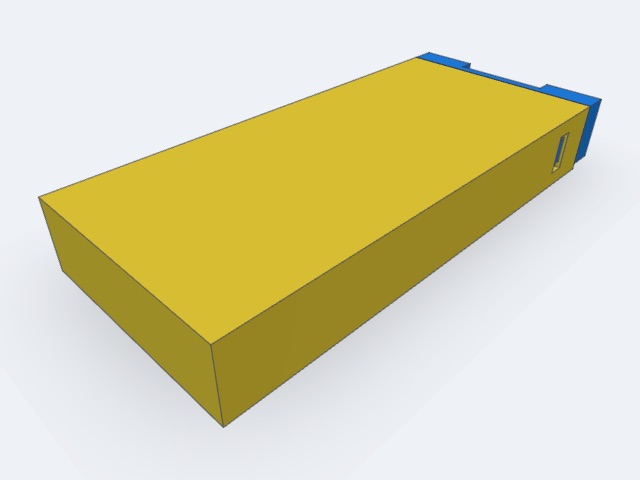

9x19 mm cartridge case — rendered image1 / 2

A 9×19 mm cartridge case drawer for storing 50 rounds of 9 mm Parabellum ammunition in a compact stackable form. The drawer holds ammunition head-down in a grid of pockets (adjustable rows × columns), and slides into a separate sleeve case with push-lock tabs on the drawer's sides that snap into windows in the case walls to keep it closed. The pocket diameter, depth, grid layout, wall thicknesses, running clearance, and lock-tab geometry are all adjustable for different ammunition types and print parameters.

Designed by thus in PartForge, parametric CAD with an AI collaborator. Open it to view in 3D or export STL, 3MF or STEP.

License

Public domain dedication

You can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
