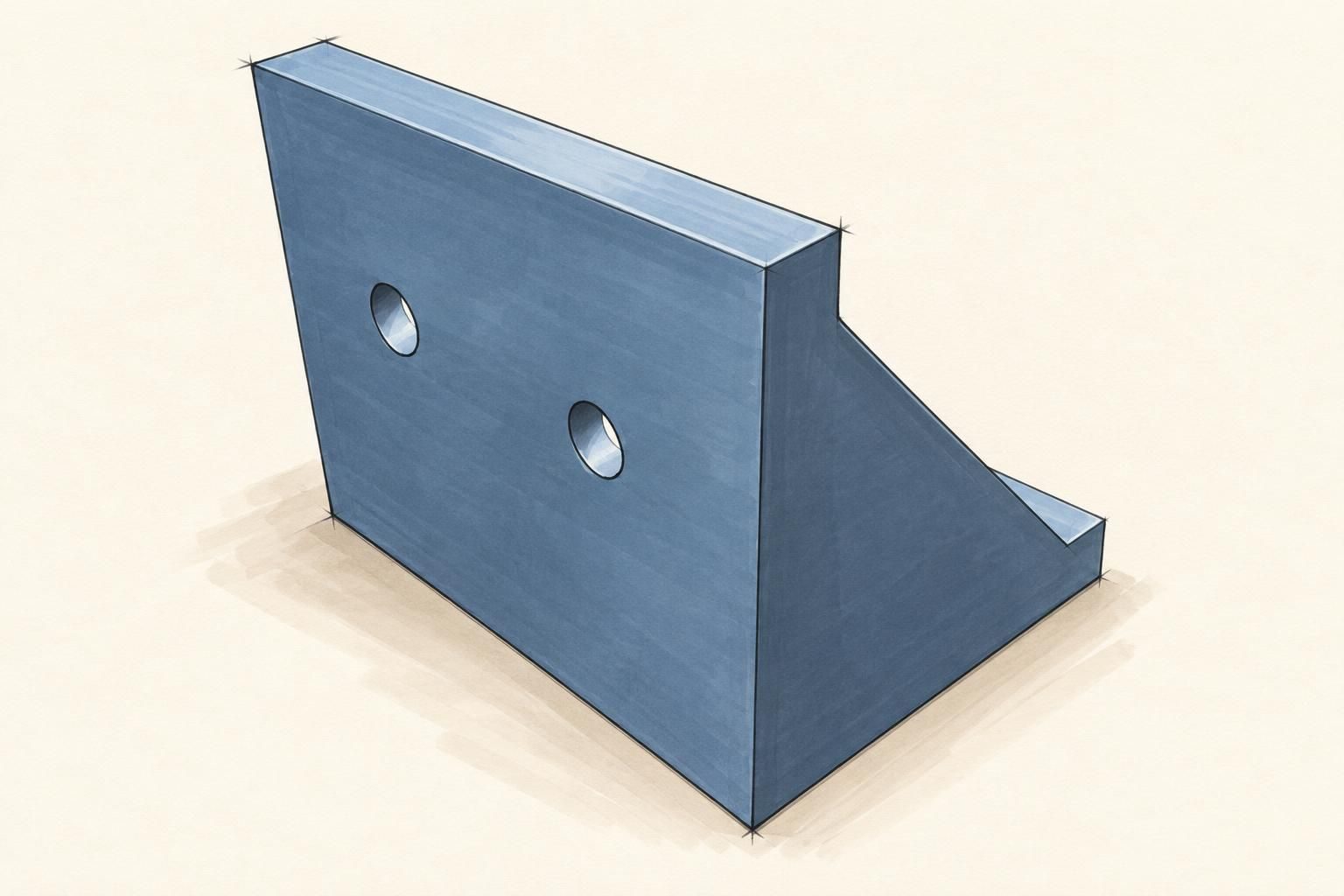

A 90-degree angle bracket with an open-ended slot in the floor flange, so a 1/4 inch bolt already set in the floor can be slid in sideways to anchor it. The upright has two screw holes for fastening a panel or load, and corner gussets add stiffness. You can adjust the size, thickness, bolt diameter, slot clearance and depth, and turn the gussets and holes on or off.
Designed by dolneyan in PartForge, parametric CAD with an AI collaborator. Open it to view in 3D or export STL, 3MF or STEP.
