Dovetail slide-top box

by eugene · published

0likes0comments0downloads

clone this forge

git clone https://www.partforge.ai/git/p-d6597c3698f6.git

This clones the published version. Sign in as the owner to clone your latest work.

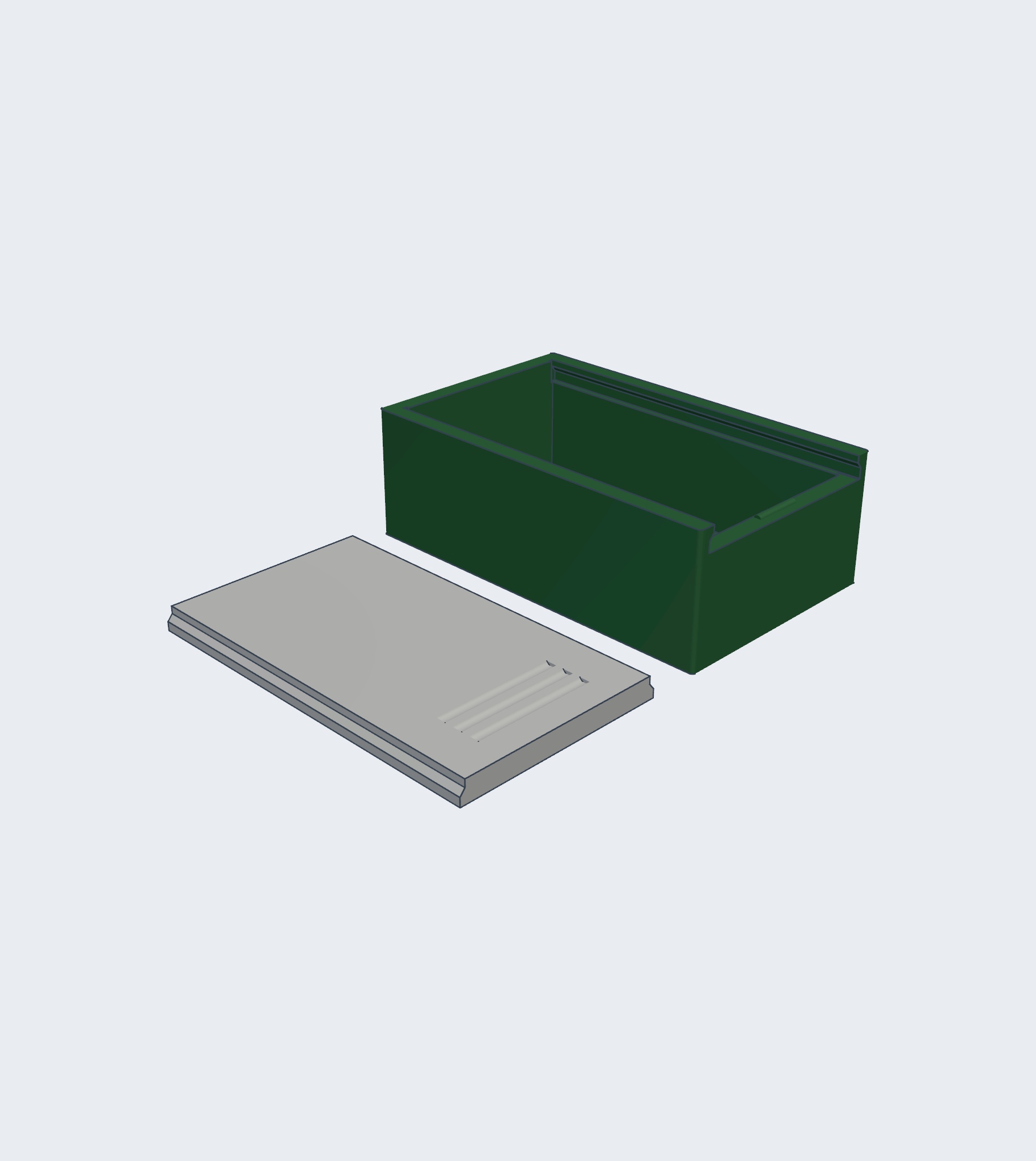

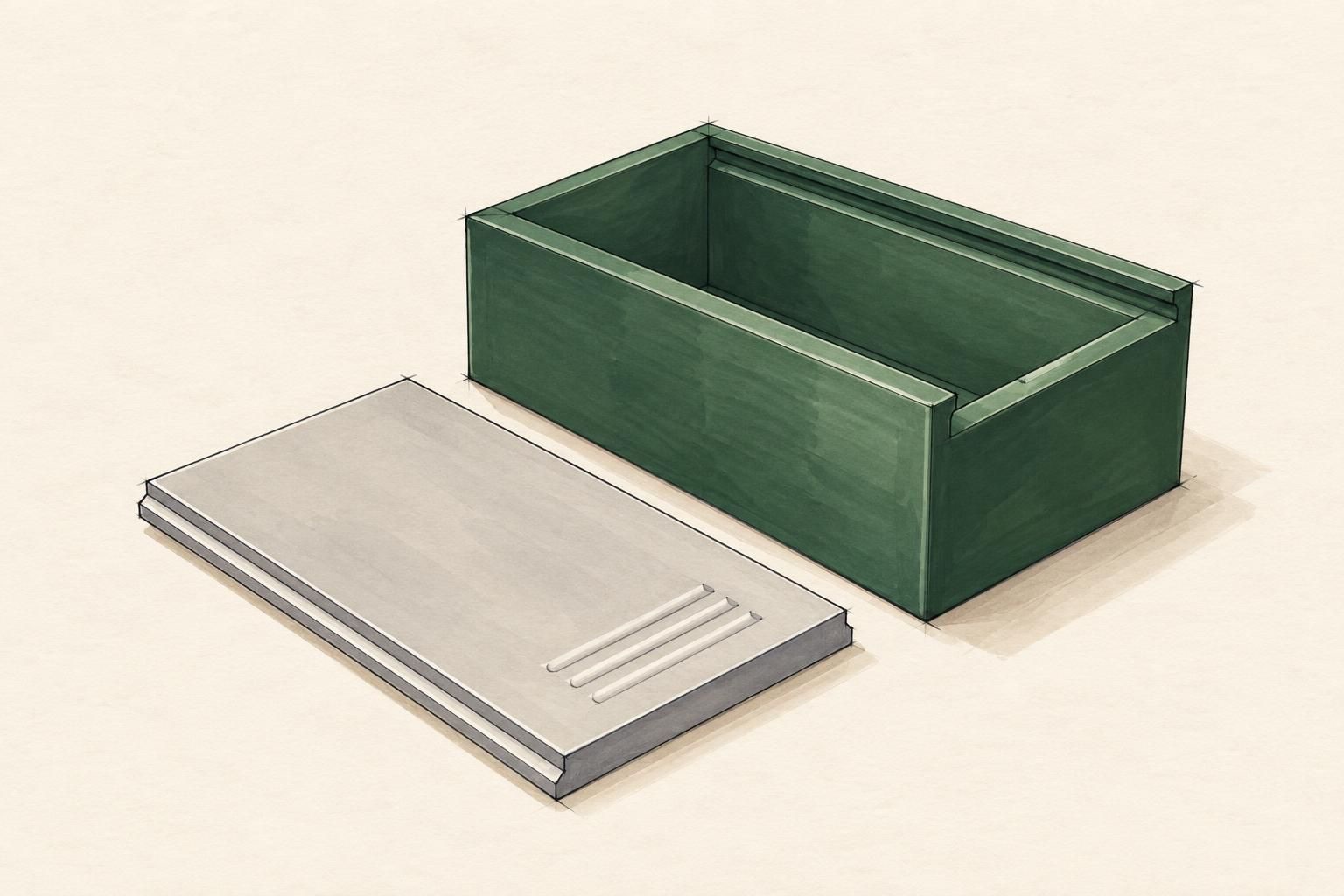

A small box with a sliding lid that runs in dovetail grooves along its long walls, like a classic wooden pencil box. The lid slides in over the low end wall, closes flush with the rim, and clicks shut on an optional detent; a row of shallow grooves gives your thumb something to push on. Set the inside size and add cross dividers for small parts, then tune the slide fit and detent for your printer. Both pieces print flat with no supports: the box open side up, the lid underside down.

#dovetail#sliding-lid#slide-box#box#pencil-box#container#storage#organizer

License

Public domain dedication

You can build on this forge: its code may be copied into forges the assistant makes for you, always naming this license. No credit required.
